Thermal Place Preference for Mice and Rats
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
Academic pricing and trade in options may be available. Request a quote to receive the best price for your lab.
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
overview
Features & Benefits

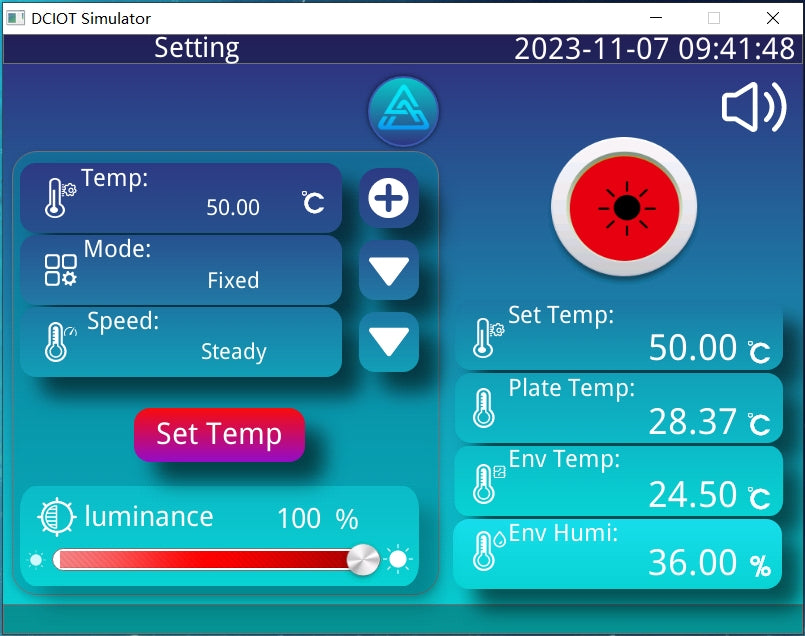

Capacitive 8-inch LCD display
Big display for easy operation, resolution: 800×600.
Wide range of temperatures
Temperatures from -5° to -65°, able to conduct any sort of thermal sensitivity experiment, including severe cold allodynia.
Precise PID control
Continuously collects temperature feedback to control heating/cooling, ensuring accurate temperature regulation.
High-performance microcomputer chip
32-bit microcomputer control ensures precise temperature control during experiments.
Dynamic infrared scanning tracking
Automatically records rodent location, staying time, and number of entries in each compartment.
Real-time behavioral recording
Records experimental temperature at placement and first nocifensive response such as paw licking or jumping.
Data extraction
Data from the TPPT can be saved to USB in CSV format and opened in Excel for analysis.
Highlights
Non-invasive and stress-free
Assesses pain perception without restraining the animals.
Species flexibility
Suitable for both mice and rats, with easily adjustable settings.
Enhanced data accuracy
Fully automated time and location tracking for precise measurements.
Real-time behavioral monitoring
Tracks thermal aversion or preference continuously during the experiment.
Flexible experimental design
Supports exploration of various temperature gaps and durations.
Clean digital output
Data is exportable and ready for statistical analysis.
Applications
Chronic constriction injury
Cold allodynia
Neuropathic pain
Analgesic drug screening
Specifications
Basic Specification
| Application | Rat or Mouse |
| Commands | 8-inch LCD display, resolution 800×600 |
| Power | 100-240 VAC, 50-60Hz, 1200W |
| Sound Level | < 60 dB (A) |
Operation
| Plate Temp. Range | -5.0°C to +65°C (in 0.1°C steps) |

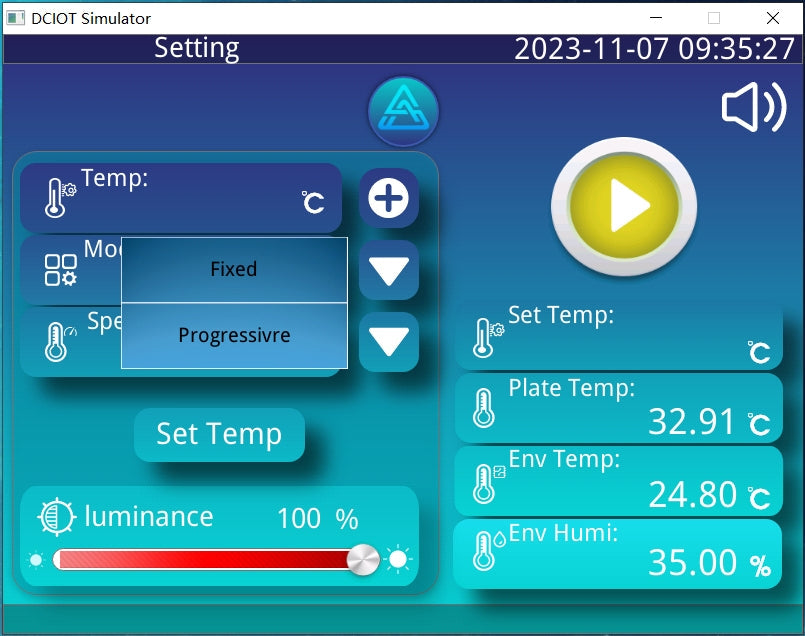

| Speed | Fixed, progressive |
| Start/Stop | By foot pedal switch |
| Detection | High-performance 32-bit microcomputer control chip |
| Time display | 0.01~600.00s |
| Time Display standard deviation | <0.02 ‰ Seconds |
| Experimental data | Time, temperature, mean, maximum value, minimum value |

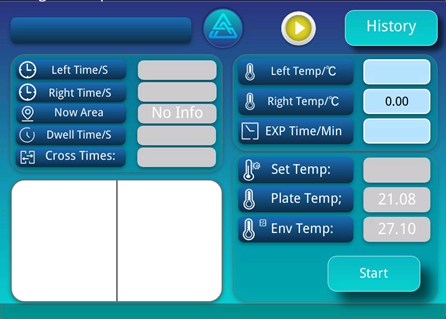

| Place Preference data | Dwell time / Cross Times / Times of Left/Right compartment |
| Position display | Current staying location / Time display |
| Data export | By USB flash drive |
| Data storage | 100 data |
Thermal Place Preference Size
| Container size | 54×24×26 cm (L x W x H) |
| Left/Right chamber | 25×21×24 cm |
| Middle door thickness | 15 mm |
| Weight | 30 kg |
Order Information
| Item No. | Product Description |
|---|---|
| SA707 | Thermal Place Preference for Mice and Rats |
Certificate
Frequently Asked Questions
-
What is the difference between TPPT and the standard Hot Plate Test?
TPPT allows free movement and choice behavior, offering a more naturalistic and sensitive assessment of pain threshold, while the Hot Plate Test typically involves passive exposure. -
Can I test both cold and heat sensitivity with TPPT?
-
Is the device suitable for both rats and mice?
-
How is data exported from the device?
-
Does the system require a PC to operate?
