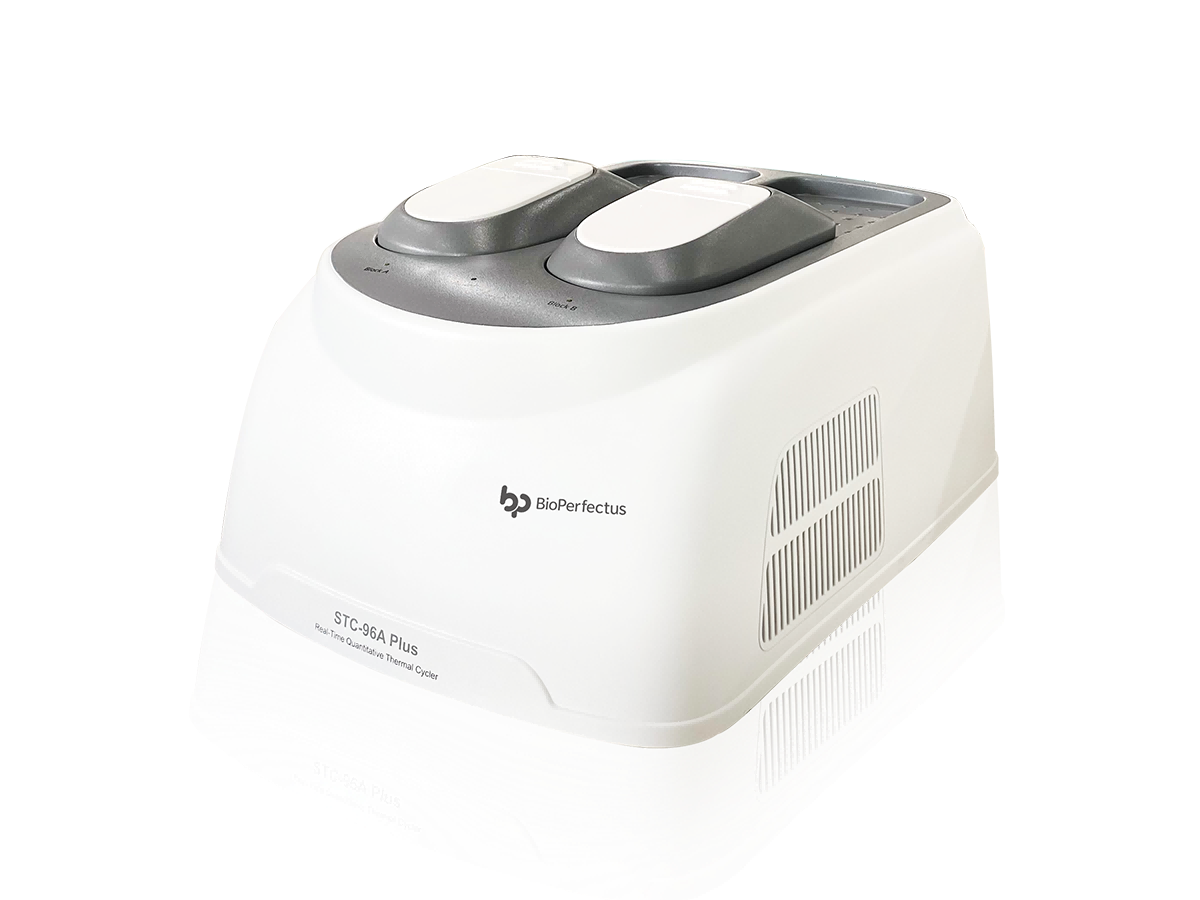

STC-96A Plus Real-time PCR System

Vendor: BioPerfectus

Type: System & Workstation

The Bioperfectus STC-96A Plus Real-Time PCR system is a more-than-ever flexible, efficient and reliable breakthrough in the real-time PCR analysis of gene ex... ... Read More

Price Unit

Quantity

$24,000.00

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Listing Price :

$24,000.00

Academic pricing and trade in options may be available. Request a quote to receive the best price for your lab.

Perfect Match With

1/2

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Feature

Highlights

Specifications

Customer Review

overview

The Bioperfectus STC-96A Plus Real-Time PCR system is a more-than-ever flexible, efficient and reliable breakthrough in the real-time PCR analysis of gene expression and genetic variation. You now can apply TWO different PCR assays on just one instrument with separate-controlled programs.

Yet the STC-96A Plus temperature uniformity across 96 wells is within a remarkable 0.1℃, which meets all your needs for highly precise diagnostic and study use, including High-Resolution Melting Curve (HRM) applications.

Features & Benefits

Partial Enlarged Plot of STC 96A Plus Temperature Curve

Shows temperature uniformity across 96 wells within 0.05℃.

STC-96A Plus Multi-tasking Software Interface

Analysis screen demonstrating multi-tasking capability of the system.

Highlights

Exclusive efficiency and flexibility

Innovative dual 48/48 reaction blocks to be controlled separately for two different assays running simultaneously on one instrument.

Precise temperature control

Well-to-well uniformity with an accuracy of 0.1℃.

Accurate results in fast speed

A super-fast heating/cooling rate of up to 4.0℃/sec.

No crosstalk calibration needed

Professional optical filter combinations eliminate crosstalk between FAM, HEX, ROX and CY5 channels.

Quality Commitment

18-month warranty, long-lasting and maintenance-free LEDs applied.

Specifications

Parameter	Specifications
Model	STC-96A PLUS
Sample capacity	96 wells
Parallel running mode	Dual Reaction blocks / running 2 tests independently
Reaction volumes	15-100 μL
Consumable	0.2 mL PCR tubes, 8-tube strips, 96-well plates
Run time	< 50 mins
Temperature range	4-99 °C
Max ramp rate	4.0 °C/sec
Temperature accuracy and uniformity	0.1 °C
Heating and cooling method	Peltier
Temperature control mode	Tube control / block control
Excitation Source	LED (maintenance-free)
Detector	High sensitivity photoelectric sensor
Sensitivity	1 copy
Reproducibility	CV < 0.5%
Dynamic range	100 - 10¹⁰ copies/well detectable
Excitation range	CH1-CH4: 470-630 nm; CH5/CH6: customer-made
Detection range	CH1-CH4: 510-665 nm; CH5/CH6: customer-made
Dyes and probes	FAM™/SYBR Green®; VIC®/HEX™/JOE™/TET™; ROX™/Texas Red®; CY5™
Dimensions (W × D × H)	38 cm × 52 cm × 25 cm
Weight	18 kg (40 lbs)
Computer	Pentium PC with Windows XP, Vista or Windows 7/8
Communication	RS232, USB
Power Supply	230 V, 50 Hz
Power Consumption	850 VA

Certificate

CE, FDA-Listed
