R-480 Nanoliter Microinjection Pump
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
overview
Features & Benefits
Precise injection
Unique seal gasket design ensures precision and accuracy of injection;Precise plunger displacement control with error less than 1%, ensuring consistent injection volume each time.
Easy to use

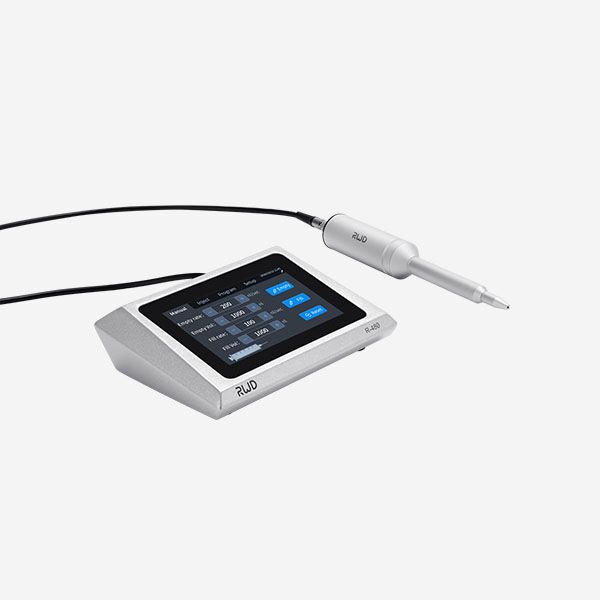

Visual touch interface with real-time display of the injection process;Auotmated injection counts by built-in software, no needs for manual counting;Multiple injection cycles can be programmed, without tedious manual Settings;Foot switch to control injection is available.
Protective design
Experimental data can be stored well even the accidental power-off;Plug with anti-misalignment mark can safeguard instrument damage by misplacing the connection cable.
Applications

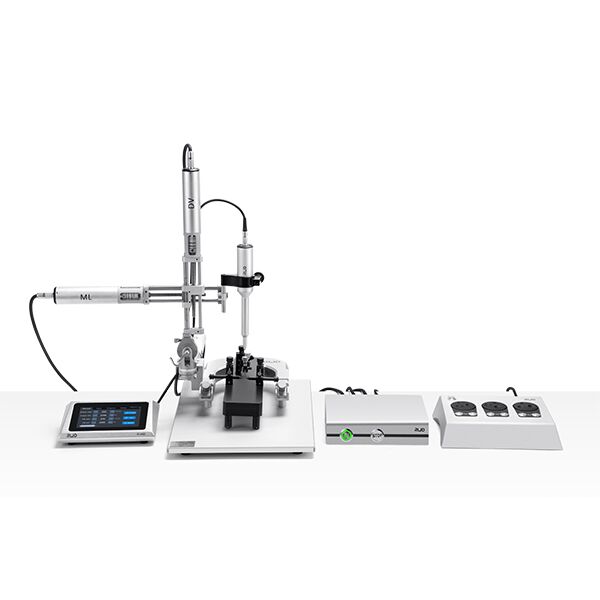

Rodents: Stereotaxic injection of drugs, viruses, neurotransmitters or dyes into deep brain tissue in rats and mice.
Fish and Frogs: Embryo/larvae injection of zebrafish clawed toad and other model organisms with nucleic acid material, protein, and dyes.
Insects: nematodes, worms, fruit flies, cotton bollworms, rice lice, etc.
Specifications
Specifications
| Control unit size (length × width × height) | 170×120×45 mm |
| Injection unit size (length) | 20 cm |
| Length of connection cable between injection unit and control unit | 100 cm |
| Length of connection cable between footswitch and control unit (optional accessories) | 200 cm |
| Display | 5.0 inch capacitive touch screen resolution: 800×480 px |
| Weight | Control unit 0.8 kg; Injection unit 0.2 kg; Footswitch 1.5 kg |
| Minimum injection rate | 0.02 nl/s (or 1.20nl/min) |
| Maximum injection rate | 200 nl/s (or 12000nl/min) |
| Rate minimum resolution | 0.01 nl/s (or 0.1nl/min) |
| Fill rate | 0.02-200 nl/s (or 1.20-12000 nl/min) |
| Empty rate | 0.02-200 nl/s (or 1.20-12000 nl/min) |
| Reset rate | 200 nl/s (or 12000 nl/min) |
| Minimum injection volume | 0.6 nl |
| Maximum injection volume | 5000.0 nl |
| Minimum volume resolution | 0.1 nl |
| Plunger travel distance | 28 mm |
| Cycle | 1-8000 |
| Delay | 1-999 s |
| Glass electrode Dimension | O.D. 1.14 mm, I.D. 0.53 mm |
Order Information

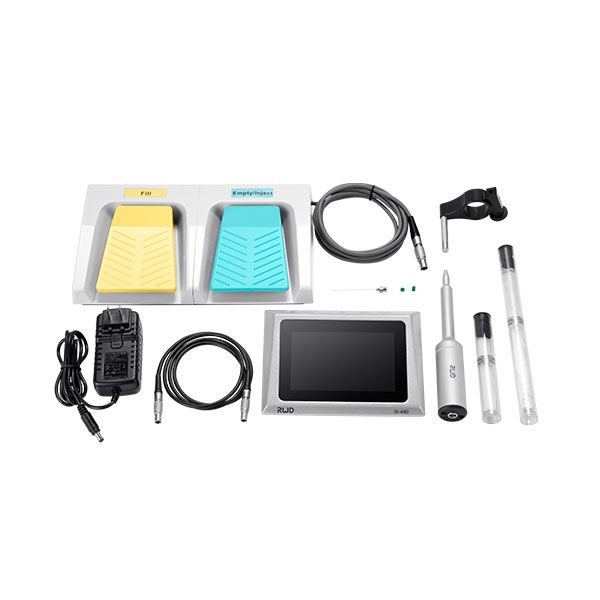

| Name | Model | Standard/optional | Quantity | Usage |

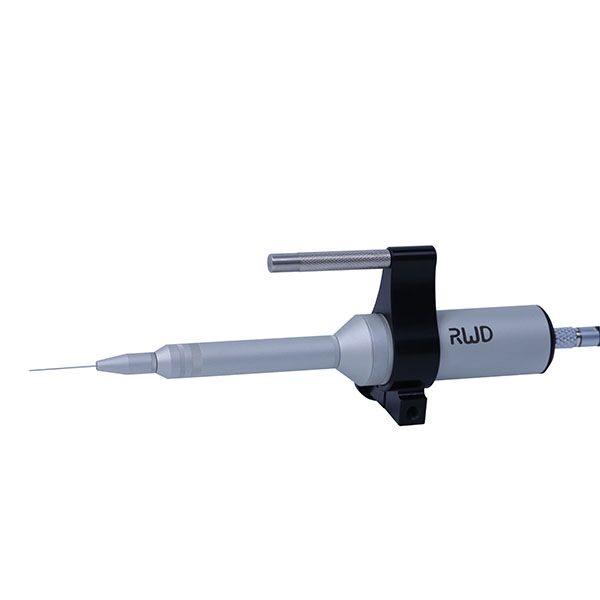

| Injection unit | / | Standard | 1 | For connecting glass electrodes and performing operations such as injection |
| Control unit | / | Standard | 1 | For setting parameters and controlling the injection unit to perform the corresponding operations |
| Connection cable | / | Standard | 1 | For connection between the injection unit and the control unit |
| 3.5″ (8.89 cm) glass electrode | GC-3.5 | Standard | 100 | Outer diameter: 1.14 mm; inner diameter: 0.53 mm |
| 7″ (17.78 cm) glass electrode | GC-7 | Standard | 100 | Outer diameter: 1.14 mm; inner diameter: 0.53 mm |
| Universal adapter for all nanojects | R480-SF | Standard | 1 | For use in conjunction with stereotaxic and micro-manipulator |
| Power adapter | / | Standard | 1 | For access to power supply |
| Filling needle | R480-FN | Standard | 1 | For oil filling |
| Sealing material | R480-SM | Standard | 1 | For replacing the sealing material inside the injection unit |
| Foot switch and connection cable | R480-FS | Optional | 1 | For controlling injection, emptying and other operations of the injection unit |

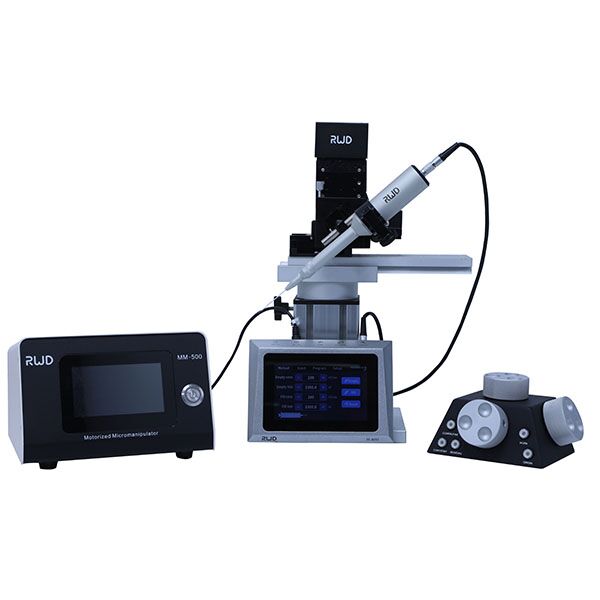

| Dedicated fastener for micro-manipulation | R480-AFM | Optional | 1 | A special accessory equipped with RWD electric micro manipulator |
| V attachment | 68207 | Optional | 1 | Accessory equipped with stereotaxic instrument |
