overview
Features & Benefits
Accurate Sampling
Equipped with cross roller bearings and spindle, combined with a five-phase high-resolution stepper motor and an aviation-grade aluminum link block, the rotary microtome forms a high-precision sampling system to ensure excellent slice quality.
Accurate Positioning
Patented pointer identification technology enables visual adjustment of the sample angle for pinpoint positioning accuracy. The knife holder features minimal lateral displacement, while the scaled base allows precise knife holder positioning to further improve slice quality.
Enhanced Safety
The dual handwheel locking system provides audible lock prompts and is equipped with a knife ejector and full-length knife guard, ensuring safe sample and blade replacement for operators.
Intelligent Information Tracking
Built with a 5-inch touch screen and history recording system, allowing easy access to past operation data and efficient problem tracing.
Convenient Operation
The German military-grade side injection knob follows ergonomic design principles, delivering smoother, more comfortable, and well-coordinated operation.
Easy Maintenance
Features a special material waste tank with non-wax adhesion design, making cleaning fast and effortless.
Applications
Histopathology
Anatomical Pathology
Specifications
Technical Parameter
| Parameter | Description |
|---|---|
| Type |
Semi-motorized: Motorized feeding Manual sectioning |
| Section thickness range |
Range: 0.5 – 100 µm Setting values: 0.5 – 5.0 µm in 0.5 µm increments 5 – 20 µm in 1 µm increments 20 – 30 µm in 2 µm increments 30 – 60 µm in 5 µm increments 60 – 100 µm in 10 µm increments |
| Trimming section thickness |
Range: 1 – 800 µm Setting values: 1 – 10 µm in 1 µm increments 10 – 20 µm in 2 µm increments 20 – 50 µm in 5 µm increments 50 – 100 µm in 10 µm increments 100 – 800 µm in 50 µm increments |
| Specimen feed | 28 mm |
| Vertical stroke | 70 mm |
| Maximum sample size | 60 × 50 × 40 mm |
| Specimen orientation | X axis / Y axis 8°, Z axis 360° |
| Specimen retraction | 0 – 250 µm adjustable |
| Blade holder | 2-in-1 |
| Remaining horizontal stroke | 1 mm, acoustical and visual prompts |
| Rock mode | √ |
| Memory position | √ |
| Historical record system | √ |
| Weight | 28 kg |
| Dimension | 470 (W) × 553 (D) × 305 (H) mm |
Semi-Auto VS Fully-Auto Comparison Chart
| Item | S700 Semi-Auto | S700A Fully-Auto |
|---|---|---|
| Section thickness setting range: 0.50 – 100 µm | √ | √ |
| Trimming section thickness setting range: 1 – 800 µm | √ | √ |
| Electric sectioning speed: 0 – 1800 µm | √ | √ |
| Specimen retraction: 0 – 250 µm | √ | √ |
| Specimen feed: 28 mm | √ | √ |
| Vertical stroke: 70 mm | √ | √ |
| Specimen orientation with zero position horizontal / vertical rotation: X/Y axis 8° | √ | √ |
| Maximum specimen size: 60 × 50 × 40 mm | √ | √ |
| W × D × H: 470 × 553 × 305 mm | √ | √ |
| Machine weight | 28 kg | 36.4 kg |
| Fully motorized and semi-motorized mode switch | √ | |
| Emergency stop button | √ | |
| Cut window function | √ | |
| Slice speed selection | √ | |
| Multiple slice modes | √ | |
| Pedals | √ |
Order Information
| NO. | Configuration | Model | Number | Note |
|---|---|---|---|---|
| 1 | Host of S700 | S700 | 1 | |
| 2 | Blade holder assembly | S700-F7 | 1 | Compatible with low and high profile blades |
| 3 | Universal clamp | S700-F3 | 1 | |
| 4 | Tool set | S700-F1 | 1 | Screw tools, brush, etc |
| 5 | Easy of cleaning section waste tray (Large) | S700-F10 | 1 | Easy of cleaning section waste tray (Large) |
| 6 | User manual | 1 | ||
| 7 | Power cable | 1 | ||
| 8 | Dust cover | 1 |
Optional
| NO. | Configuration | Model | Number | Note |
|---|---|---|---|---|
| 1 | Standard clamp | S700-F4 | 1 | Standard clamp |

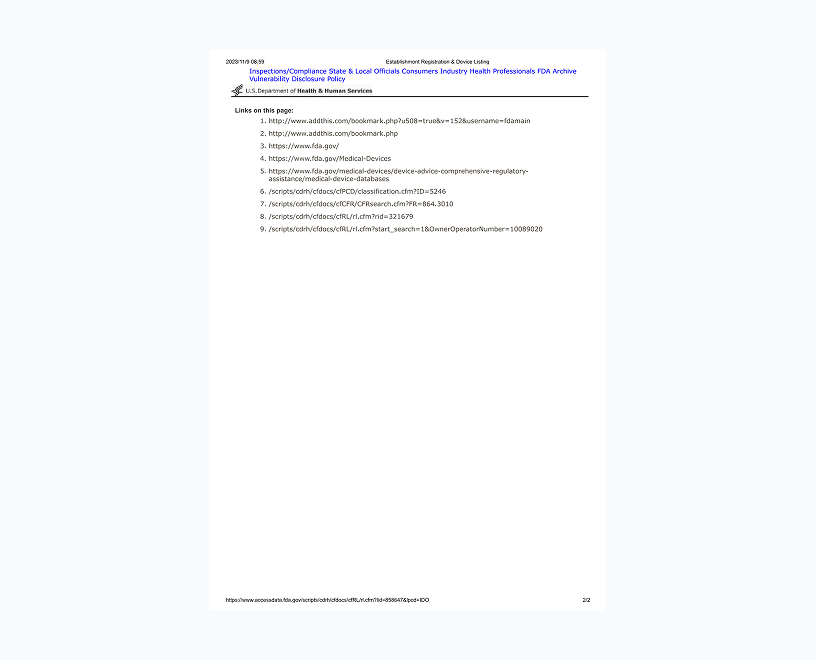

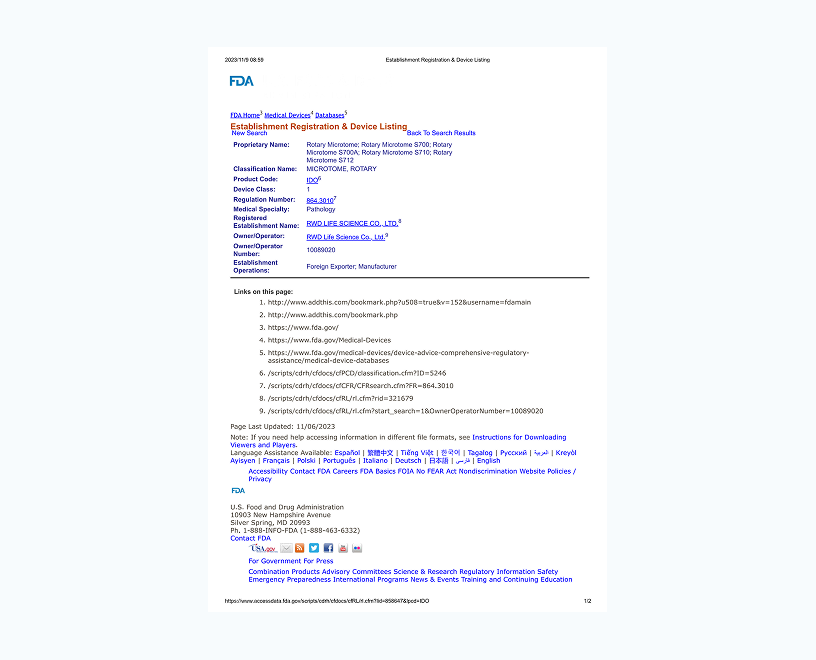

Certificate
