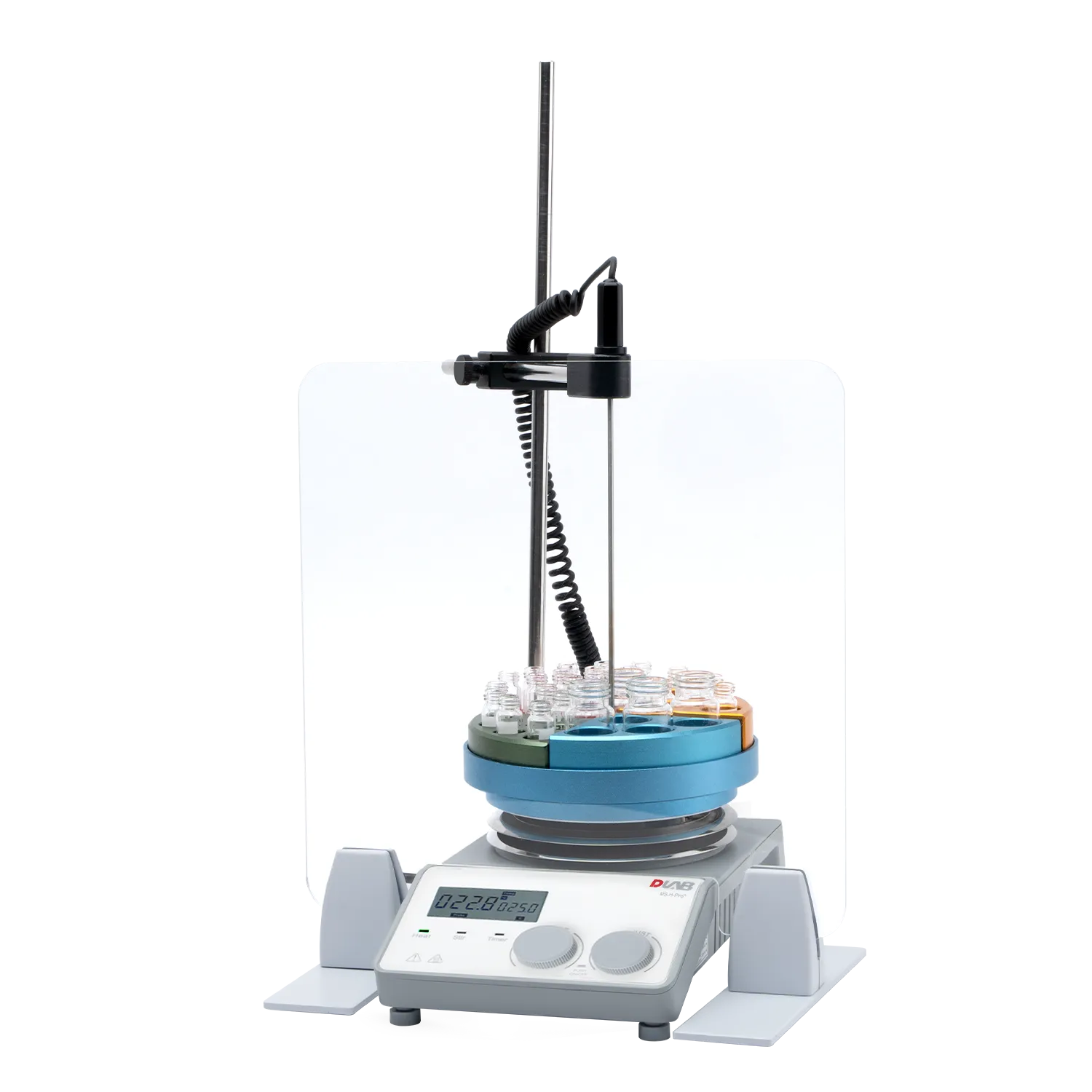

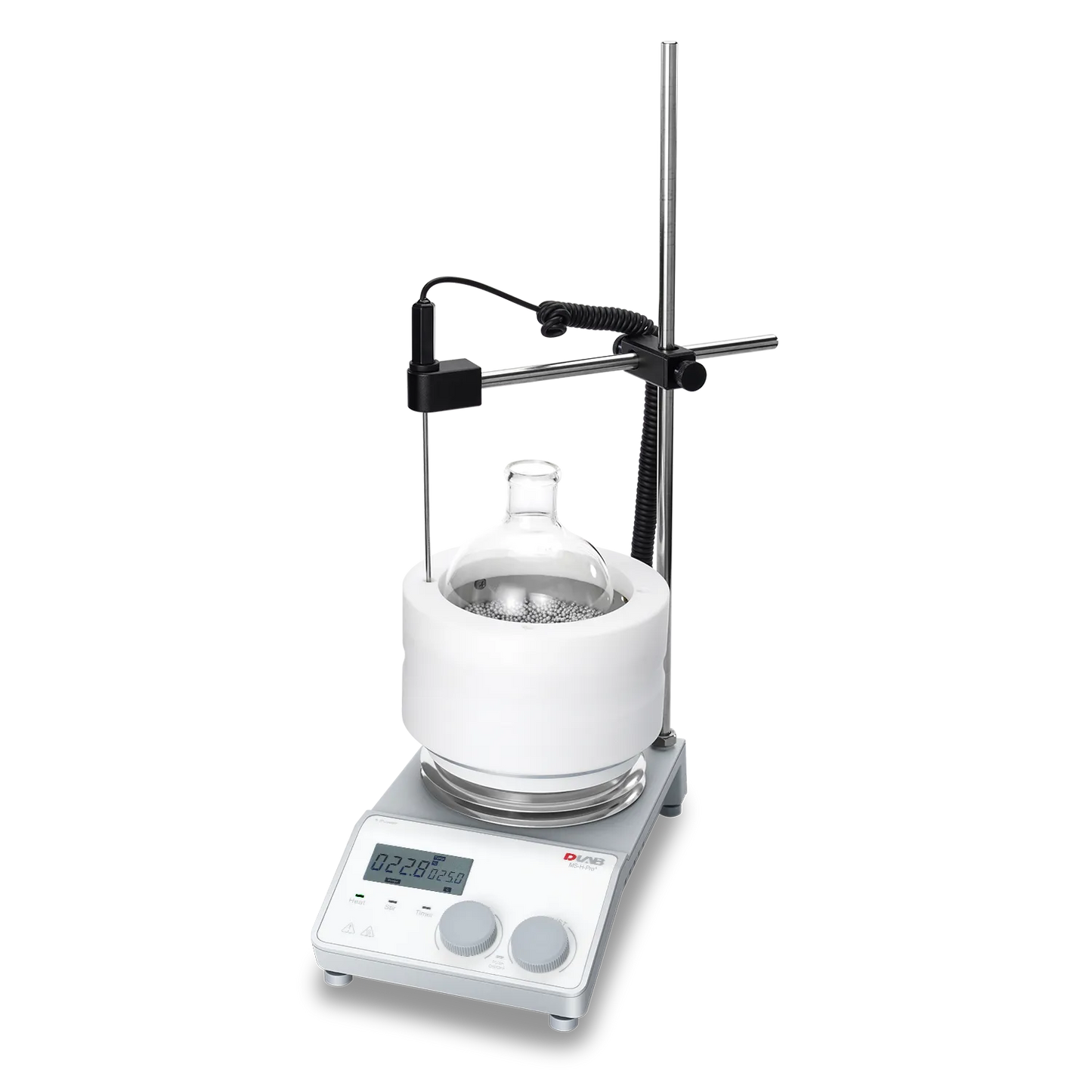

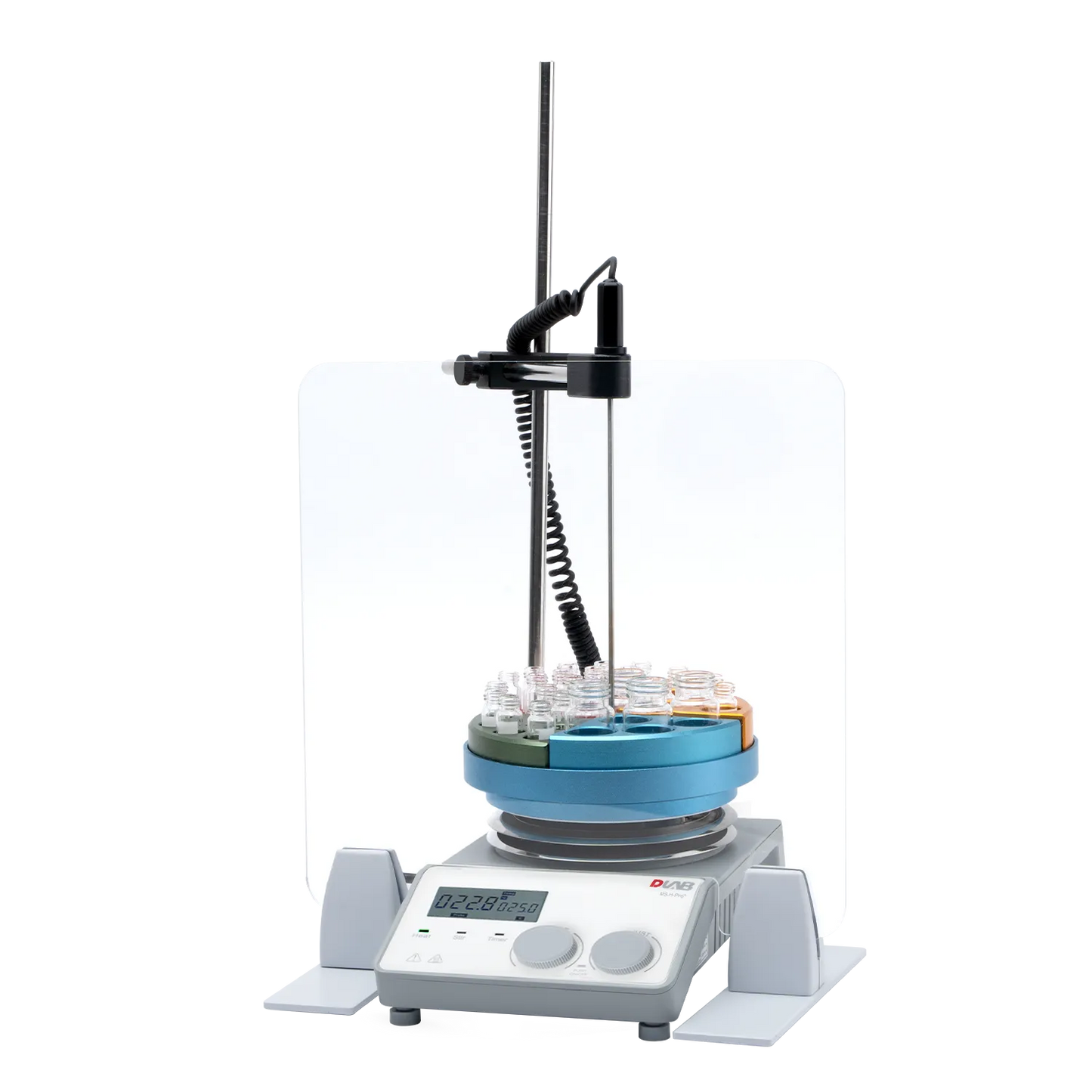

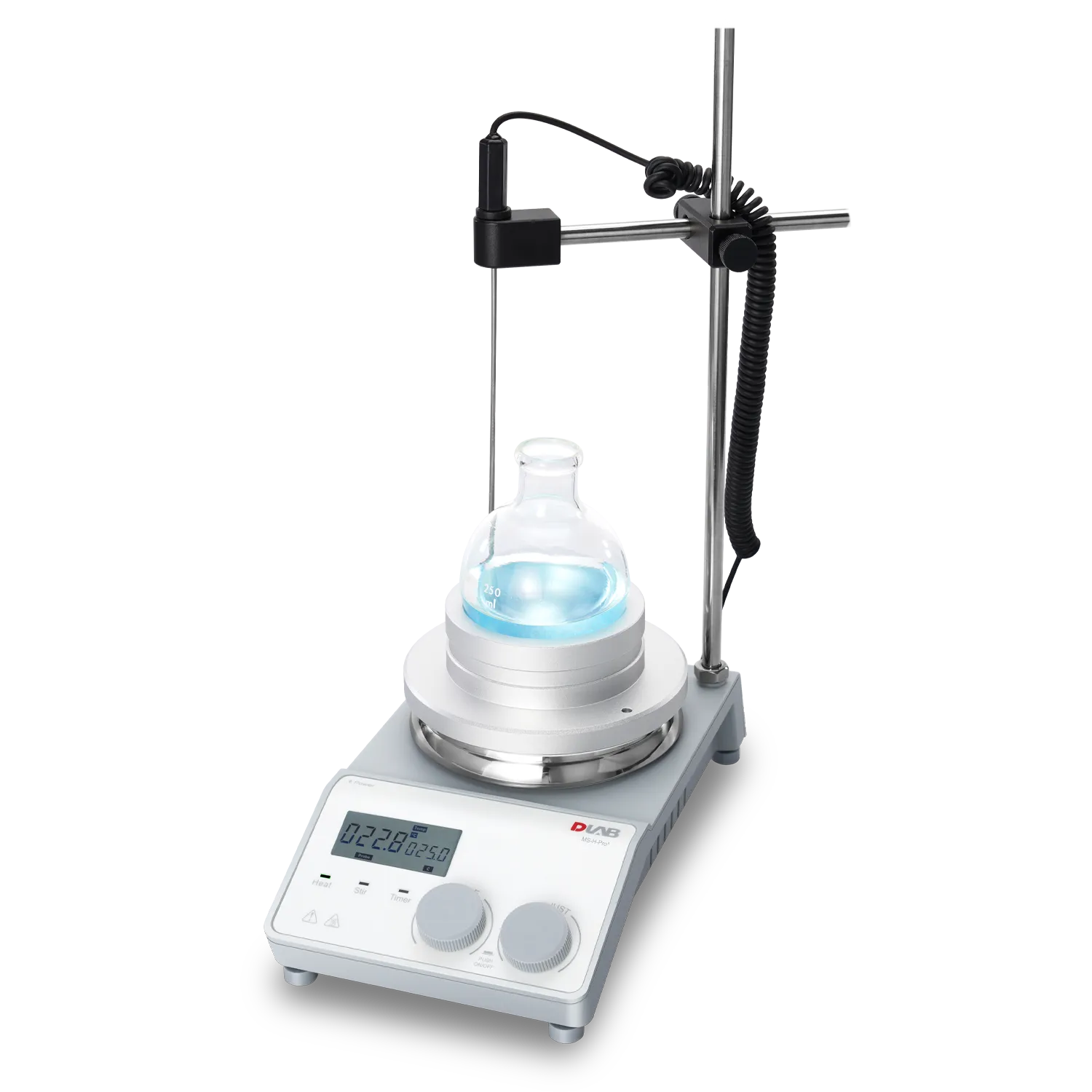

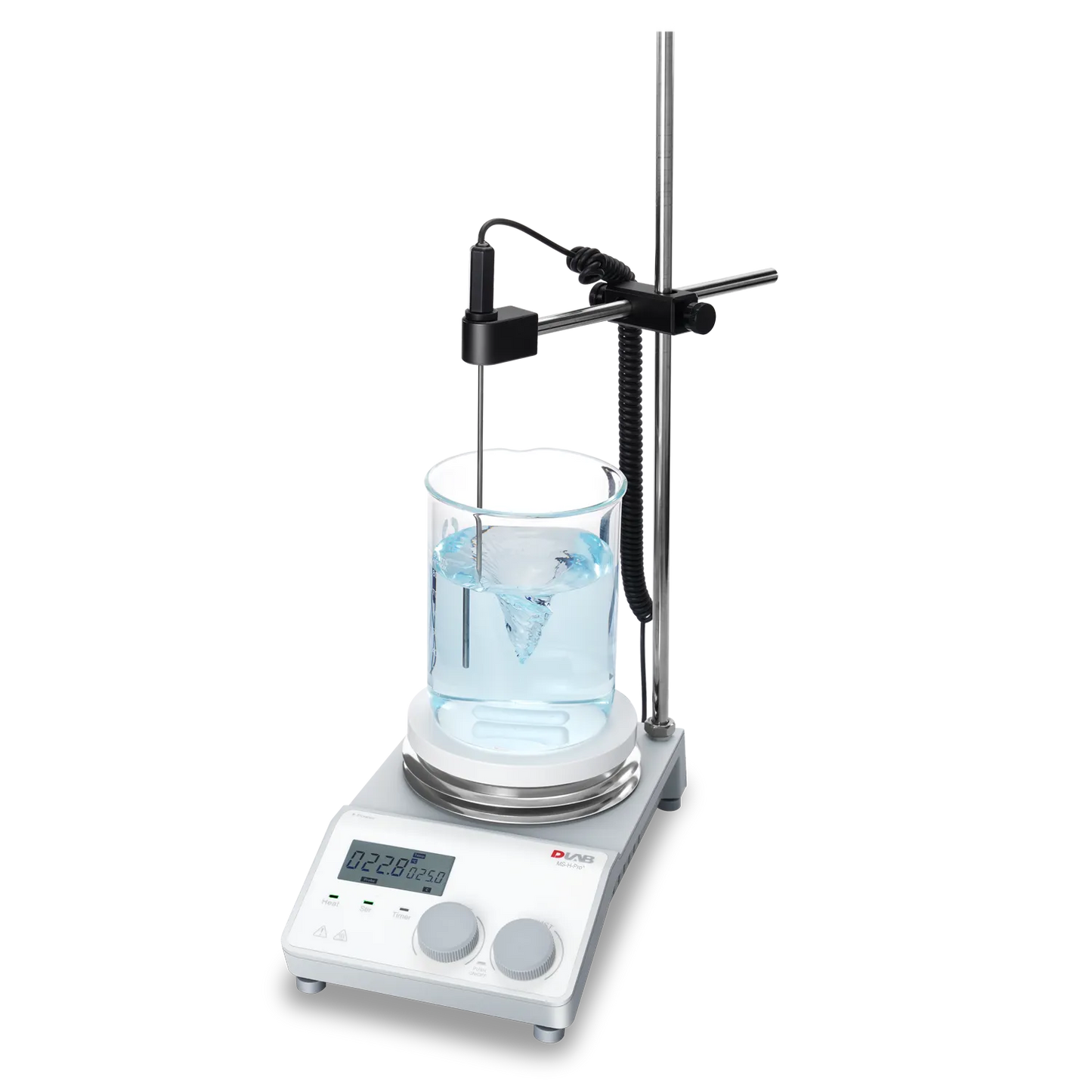

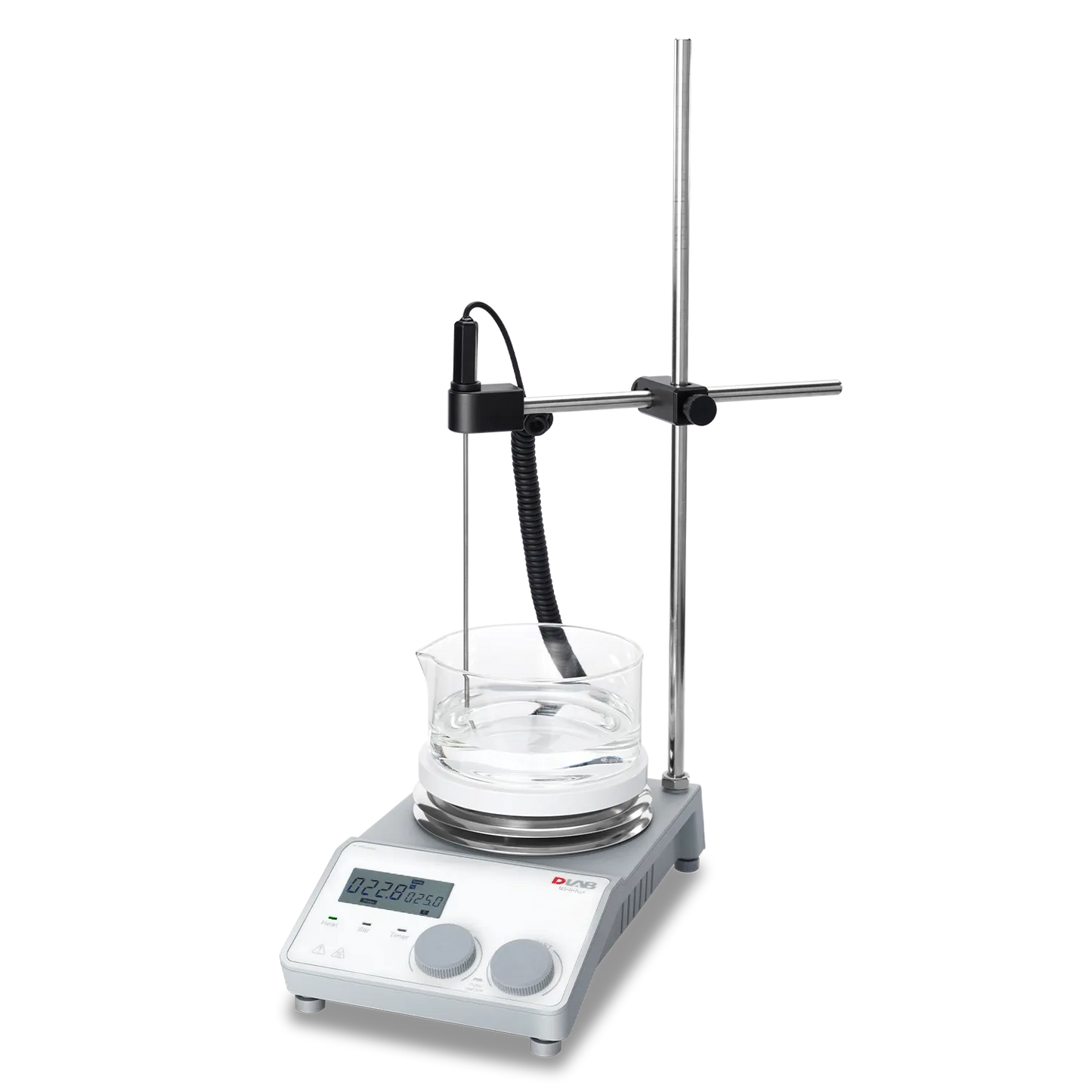

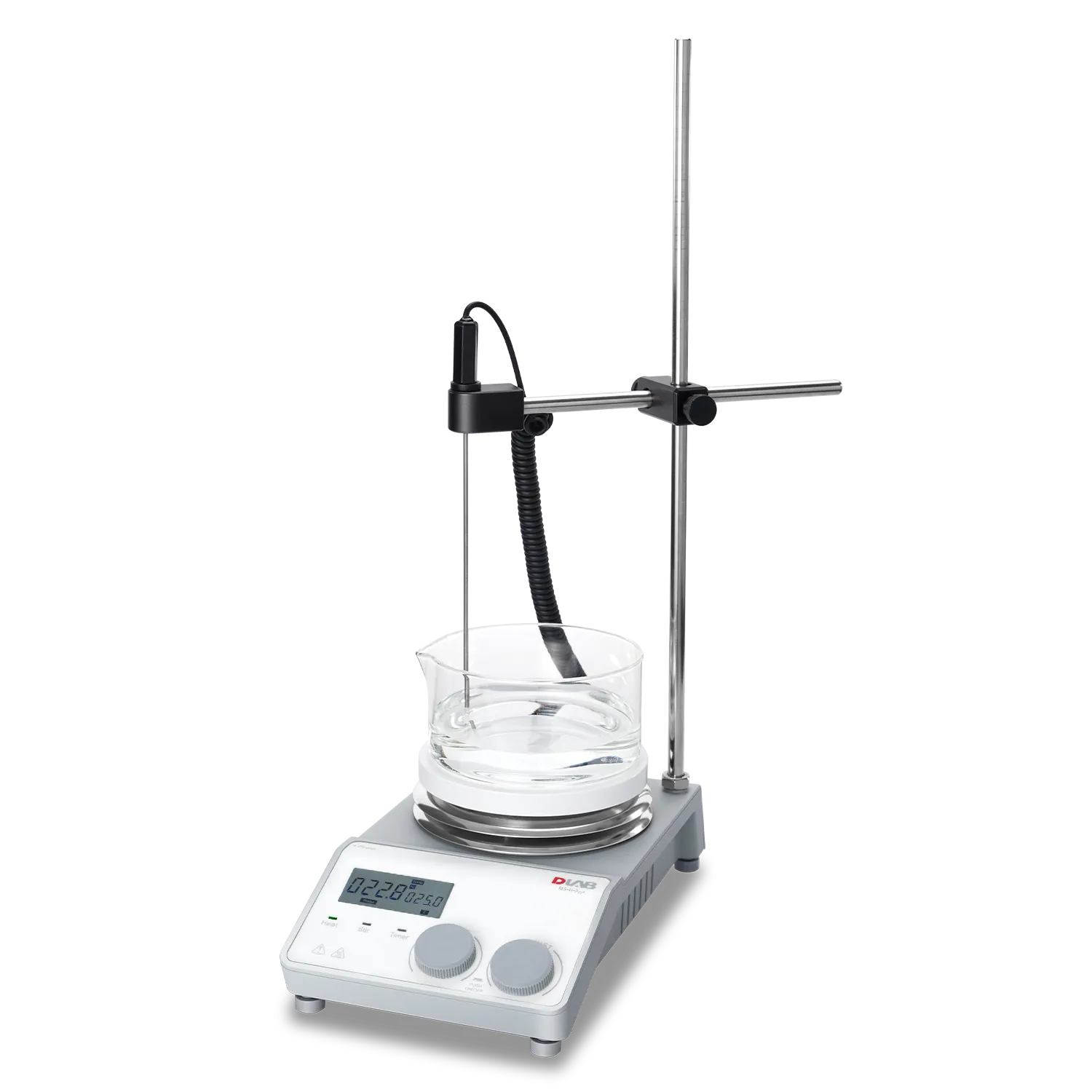

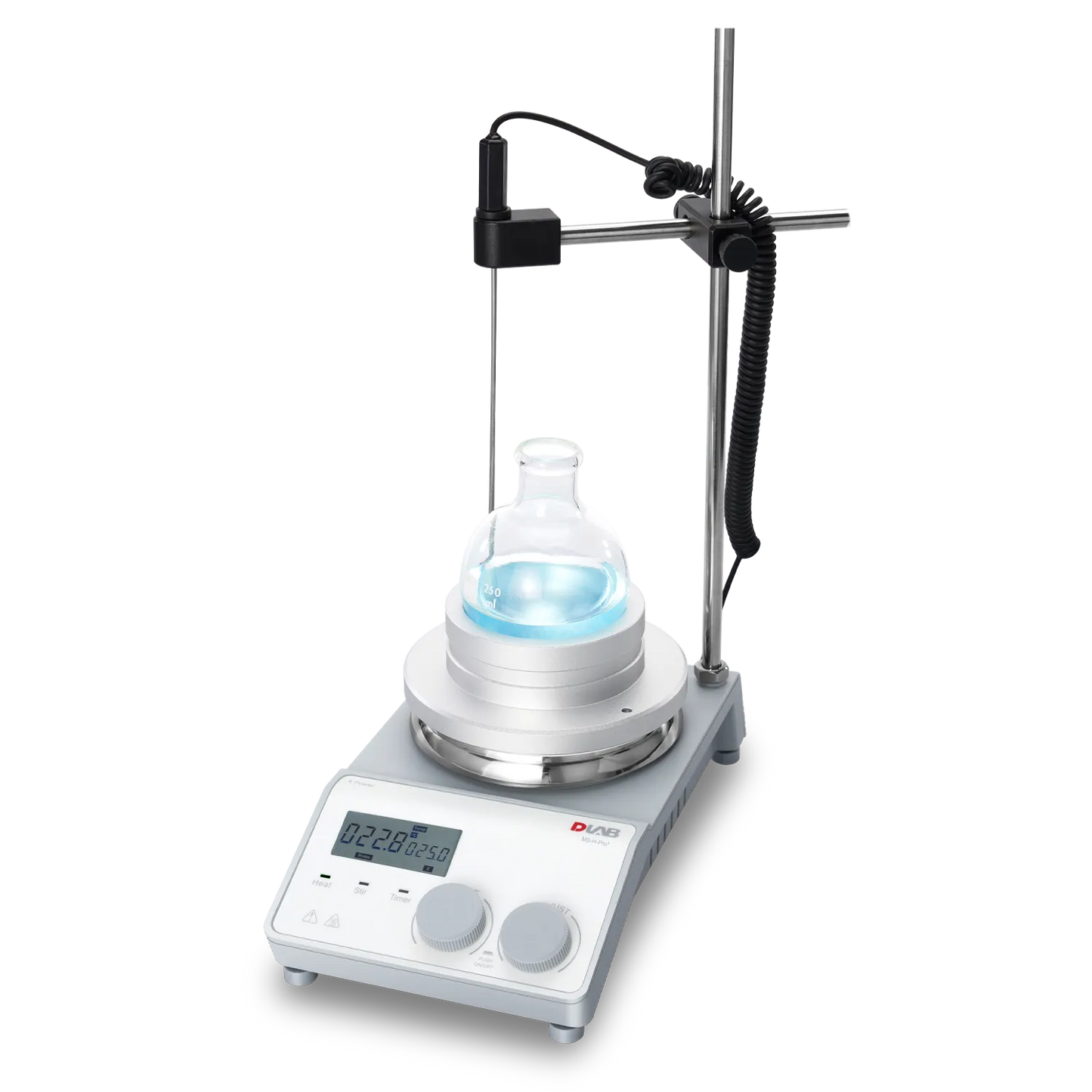

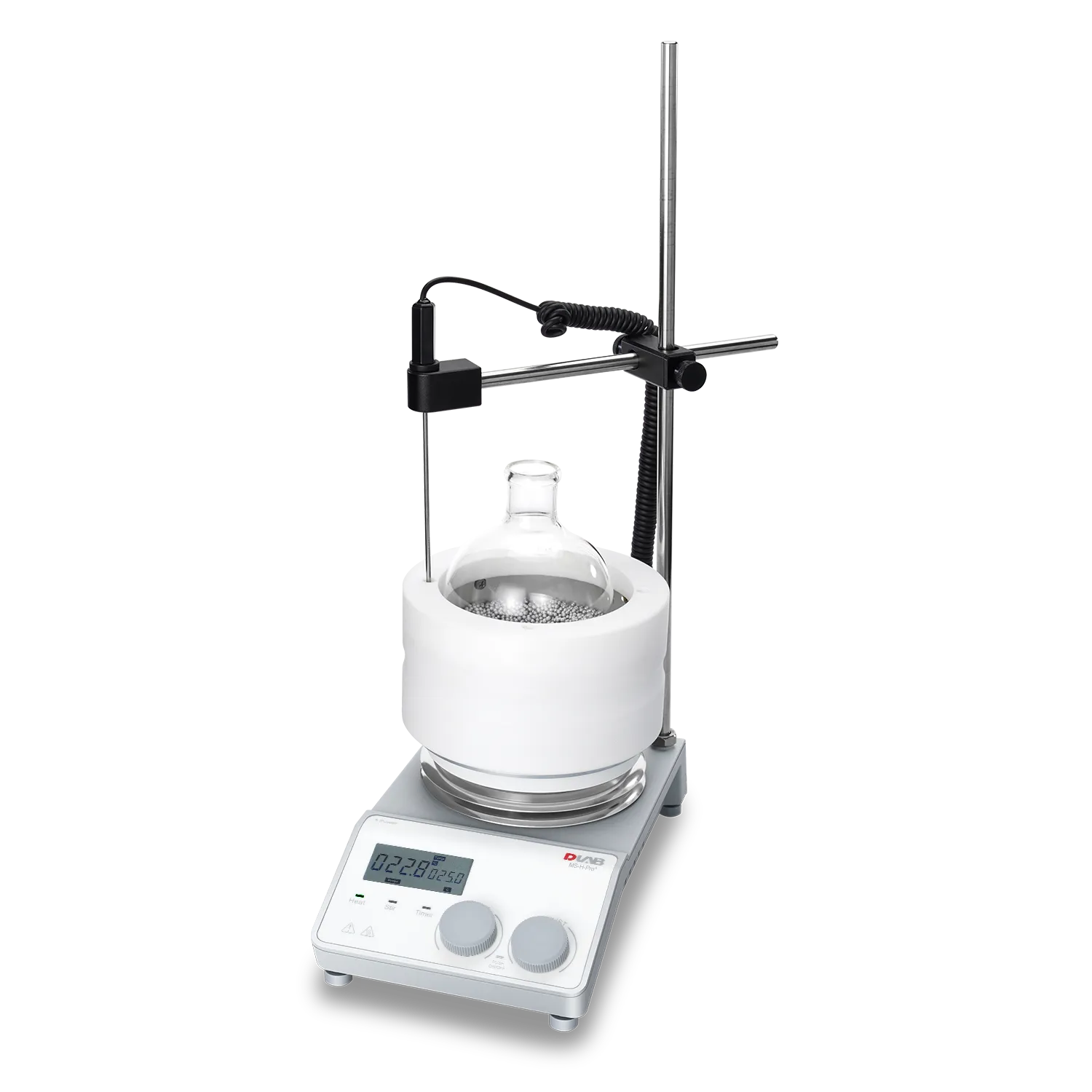

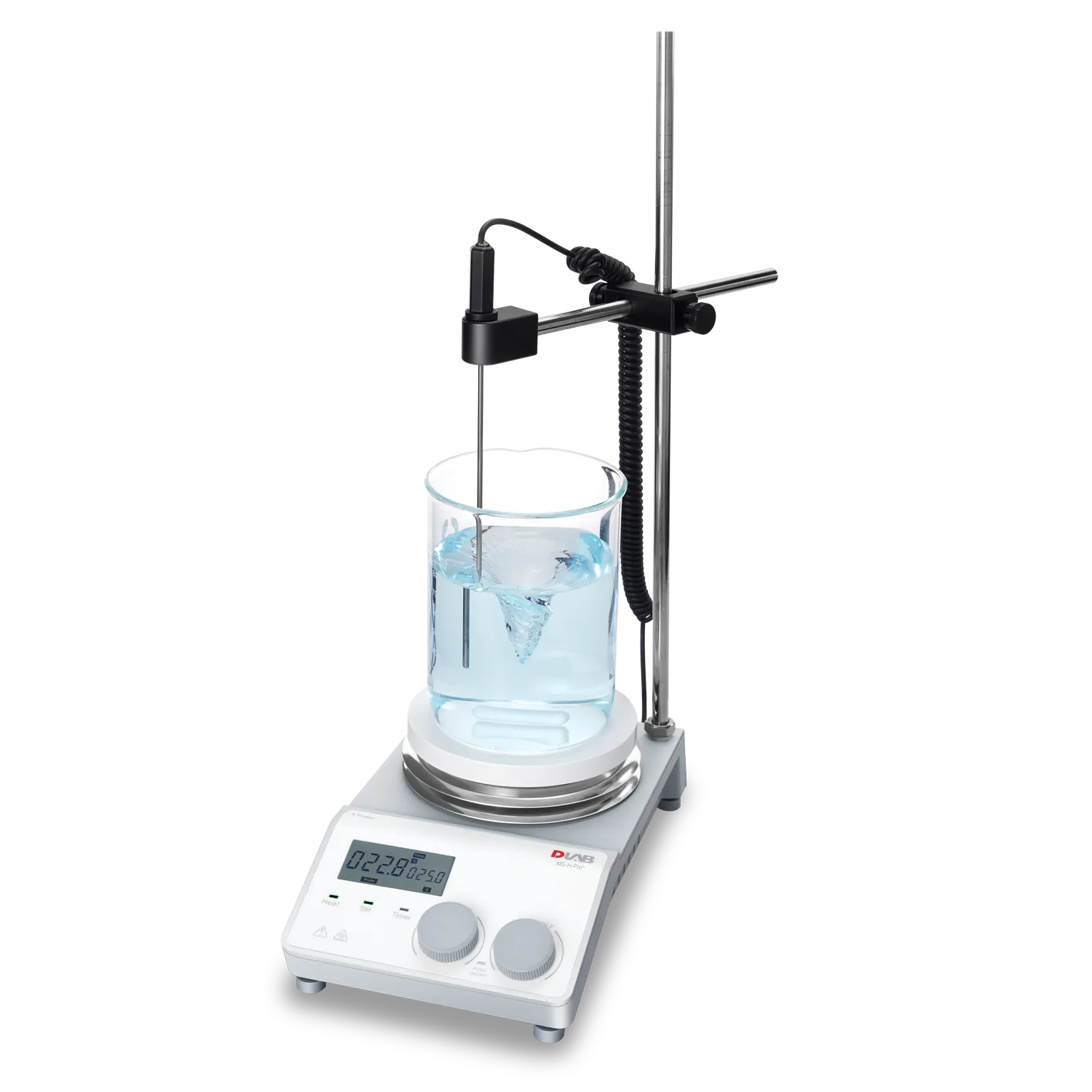

MS-H-ProA LCD Digital Magnetic Hotplate Stirrer
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
overview
DC brushless motor free of maintenance and spark, and with long service life
Digital temperature control up to 340°C
Digital speed control up to 1500rpm
Maximum stirring quantity of H2O is 20L
Safety circuits provide overheating protection
"HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
Work plate with ceramic coating provides good chemical-resistantperformance
Remote function provides PC control and data transmission
Wide variety of accessories available to choose
Features & Benefits
DC brushless motor free of maintenance and spark, and with long service life.
Digital temperature control up to 340°C.
Digital speed control up to 1500rpm.
Maximum stirring quantity of H2O is 20L.
Safety circuits provide overheating protection.
″HOT″ warning flashes if plate temperature is above 50°C even when hotplate is turned off.
External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C.
Work plate with ceramic coating provides good chemical-resistantperformance.
Remote function provides PC control and data transmission.
Wide variety of accessories available to choose.
Specifications
Product Parameters
| Parameter | Value |
| Cat.No. | 8060221110 |
| Work plate material | Aluminum cover with ceramic coating |
| Speed range | 100–1500 rpm |
| Temperature display | LCD |
| Temperature control accuracy | ±1°C (<100°C), ±1% (>100°C) |
| External temperature sensor | PT1000 (accuracy ±0.2°C) |
| Overheating temperature protection | 420°C |
| Stirring positions | 1 |
| Data connector | RS232 |
| Protection class | IP21 |
| Power | 720W |
| Voltage / Frequency | 100–120V / 200–240V, 50 / 60 Hz |
| Weight | 2.8 kg |
| Permissible ambient humidity | 80% RH |
| Work plate Dimension | Ø135 mm (5 inch) |
| Max. stirring quantity [H₂O] | 20 L |
| Speed display | LCD |
| Heating temperature range | Room temp.–340°C, increment 1°C |
| Temperature display accuracy | ±0.1°C |
| "Hot" warning | 50°C |
| Motor type | Brushless DC motor |
| Max. magnetic bar length | 80 mm |
| Timer function | 1 min to 99 h 59 min |
| Motor rating output | 10 W |
| Heating output | 600 W |
| Dimension [W×D×H] | 280 × 160 × 100 mm |
| Permissible ambient temperature | 5–40°C |
Order Information
Product Parameters
| Parameter | Value |
| Cat.No. | 8060221110 |
| Work plate material | Aluminum cover with ceramic coating |
| Speed range | 100–1500 rpm |
| Temperature display | LCD |
| Temperature control accuracy | ±1°C (<100°C), ±1% (>100°C) |
| External temperature sensor | PT1000 (accuracy ±0.2°C) |
| Overheating temperature protection | 420°C |
| Stirring positions | 1 |
| Data connector | RS232 |
| Protection class | IP21 |
| Power | 720W |
| Voltage / Frequency | 100–120V / 200–240V, 50 / 60 Hz |
| Weight | 2.8 kg |
| Permissible ambient humidity | 80% RH |
| Work plate Dimension | ?135 mm (5 inch) |
| Max. stirring quantity [H?O] | 20 L |
| Speed display | LCD |
| Heating temperature range | Room temp.–340°C, increment 1°C |
| Temperature display accuracy | ±0.1°C |
| "Hot" warning | 50°C |
| Motor type | Brushless DC motor |
| Max. magnetic bar length | 80 mm |
| Timer function | 1 min to 99 h 59 min |
| Motor rating output | 10 W |
| Heating output | 600 W |
| Dimension [W×D×H] | 280 × 160 × 100 mm |
| Permissible ambient temperature | 5–40°C |
