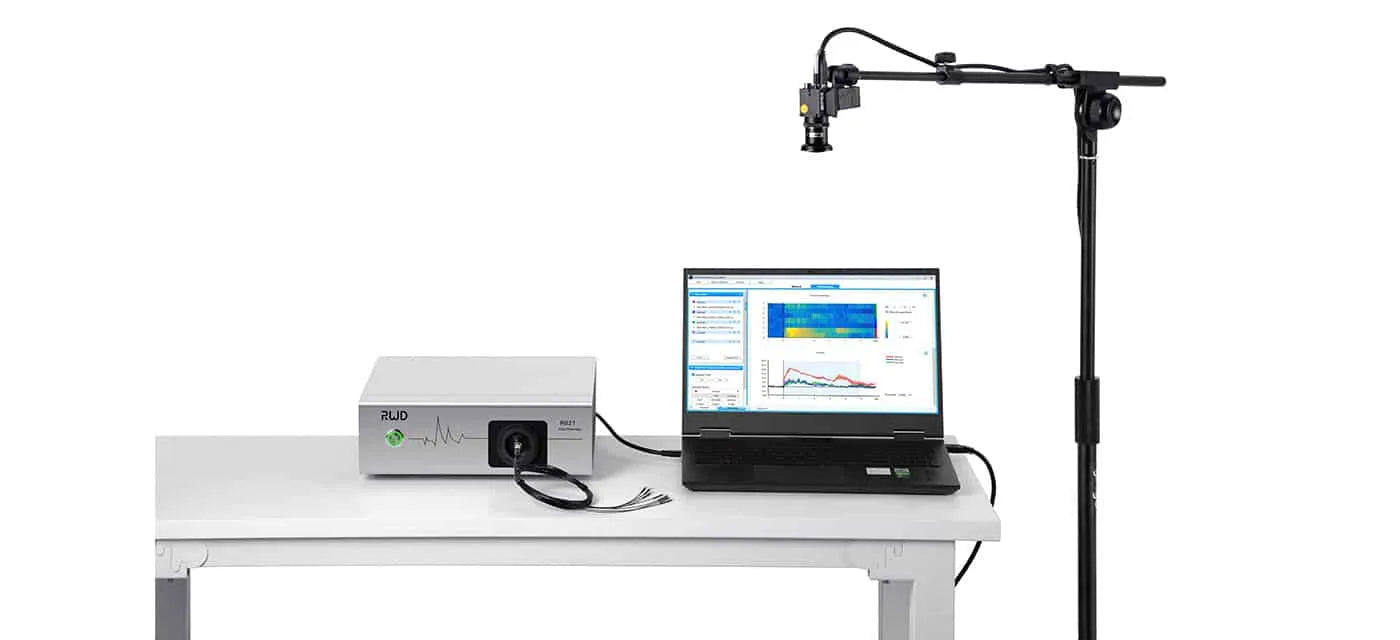

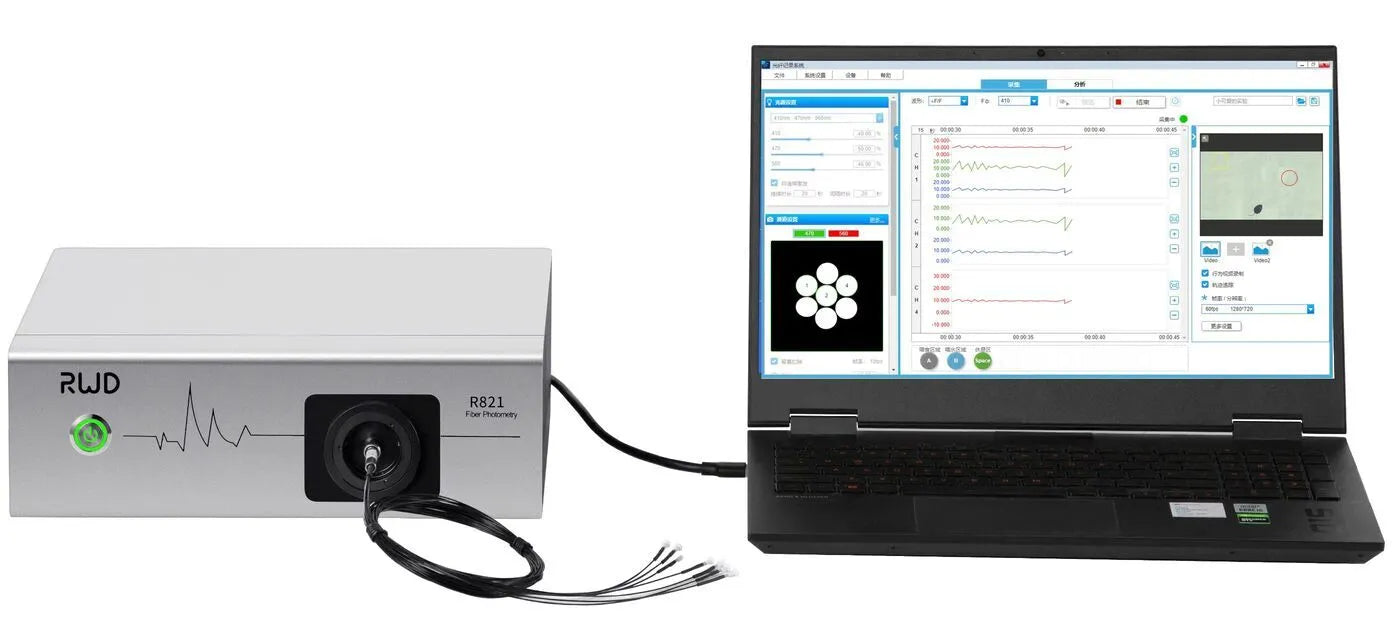

FR-21 Tricolor Multichannel Fiber Photometry System
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
Academic pricing and trade in options may be available. Request a quote to receive the best price for your lab.
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
overview
Features & Benefits
One-Click Graphs
Automatically generates fluorescence heatmaps, curve plots, and animal trajectory graphs for fast and intuitive visualization.
High-Sensitivity Signal Acquisition
Detects weak signals at the picowatt level, ideal for monitoring axons and glial activity.
Professional Data Analysis
Offers comprehensive pre-processing, event refinement, multi-dimensional analysis, and flexible data export options.
High Integration
Built-in optogenetic interface enables simultaneous stimulation and recording at the same site.
Stable Long-Term Performance
Supports over 500 hours of continuous acquisition, suitable for long-term experiments such as sleep studies.
Strong Expansion Capability
Four digital input/output interfaces and excitation light combination modes allow up to 9-channel simultaneous acquisition.
Highlights
Three kinds of excitation light sources, that are 410nm、470nm and 560nm, are respectively used for excitation of reference, green fluorescence and red fluorescence;
Support up to 9 channels, suitable for simultaneous experiment of multiple animals or multiple brain locations;
Dual highly sensitive detectors enabling independent and sequential detection to avoid interference of fluorescence excitation and detection, acquiring more accurate signals;
Professional acquisition and analysis softwares are flexible and easy to operate with data processing functions available. No matlab programming is required;
Supports multiple acquisition modes including continuous acquisition, interval acquisition, acquisition upon trigger, delayed acquisition and timing acquisition;
Live display of DeltaF/F acquisition to check scale of signal changes during acquisition;
Customized adjustment of output signal parameters, easily trigger and control external excitation equipment to achieve closed-cycle control of excitation and recording;
Applications
Ca2+ and Neurotransmitter sSgnal Detection
Neural Circuit Functionality Study
Mechanisms of Neurological Diseases Exploration
New Fluorescent Sensor Probes Development
Optical Principle Experiment
Specifications
| Item | Quantity | Description |
|---|---|---|

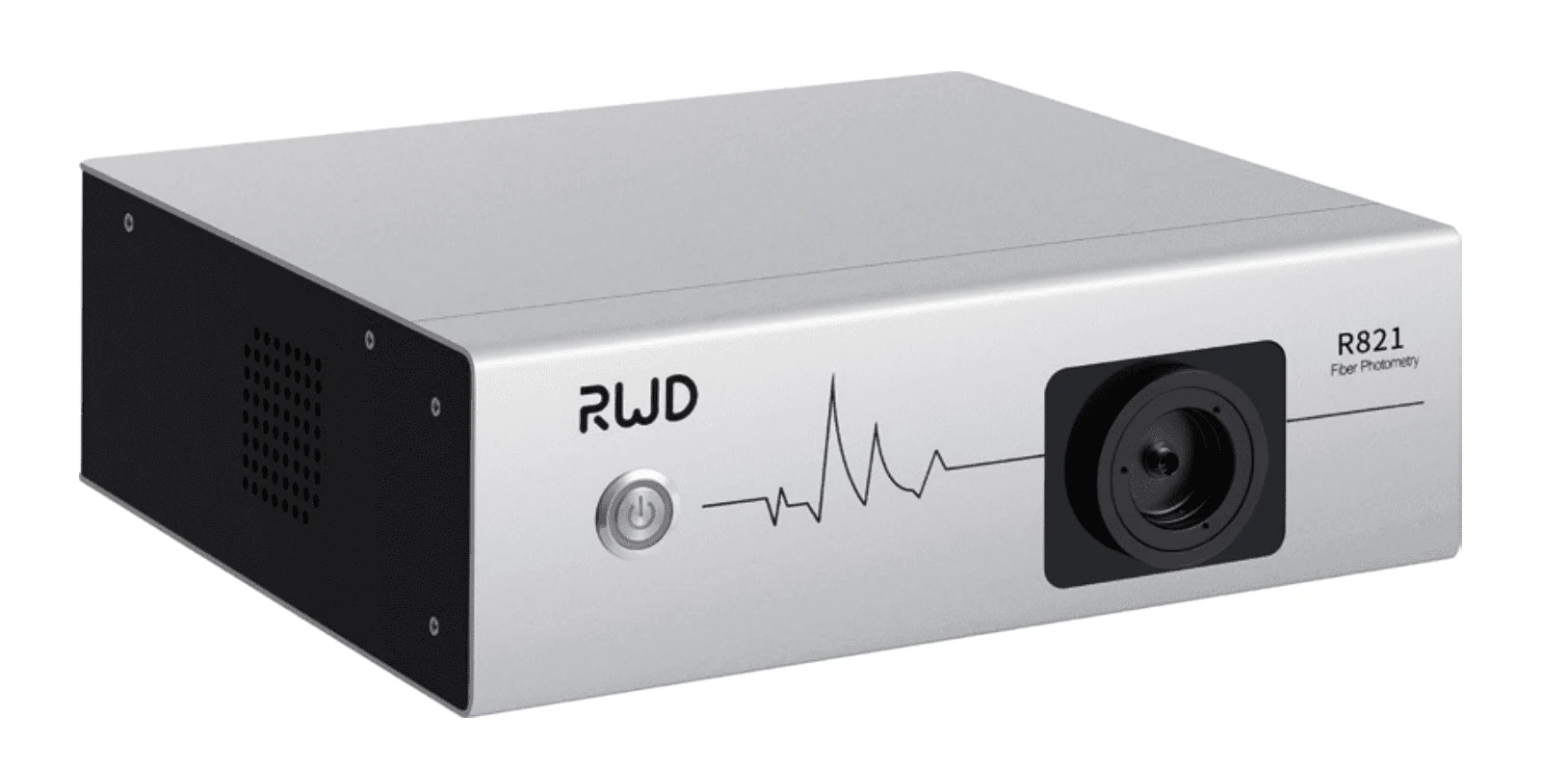

| Fiber Photometry Main Device | 1 | Includes: Host, power cord, 3 USB cables, USB expansion interface, software U disk |
| Computer | 1 | Includes pre-installed software, I5-10500H/16G/500G/WIN10 (1920×1080) |
| Optical fiber | 1 | Low Autofluorescence Fiber-optic Patch Cords 200um/0.37NA/2m, Φ1.25mm or Φ2.5mm |
| Fiber Cannula sleeves | 1 | Black Ceramic Sleeves, Φ1.25mm or Φ2.5mm |
| Behavior Camera | 1 | Record video of animal behavior and identify animal tracks, USB3.0, 3M |
| Behavior Camera bracket | 1 | Adjustable height range 0.8–1.5m, Rotation Angle 360° |
| Photobleaching device | 1 | FC/PC Patch Cord photobleaching machine (R810-1) |
| U disk | 1 | Software key (Not for analysis function) |
Order Information
| Parameter | Specification |
|---|---|
| Wavelength of excitation light | R811: 410nm 470nm R821: 410nm 470nm 560nm |
| Power | Min 0μW, Max≥100μW, adjustable with an accuracy of 0.1μW |
| Number of channels | 9 |
| Frame rate of fluorescent sampling | Max 250fps |
| Digital signal interface | 4 Input 4 Output |
| Signal output | Output frequency 0-500Hz, adjustable output pulse width and duration |
| Marking | Manual marking (10), automatic marking (4), ROI marking (9) |
| Behavior camera | 1920*1080 (30fps), 1280*720 (60fps) Switchable among multiple frame rates of resolution |

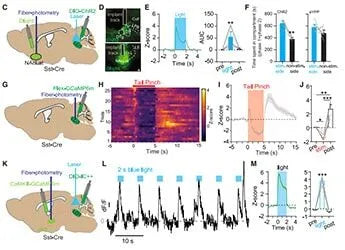

Case Study
