What positioning accuracy does the ASI-100 stereotaxic instrument provide?

The ASI-100 motorized stereotaxic system delivers 1 µm positioning accuracy using stepper motor-driven arms with gap-free operation. Its software automatically calibrates coordinates, ensuring precise brain injection, electrode implantation, and other neuroscience research procedures.

Can this stereotaxic system control multiple arms at the same time?

Yes, this automated stereotaxic instrument uses a single integrated controller to manage two robotic arms simultaneously. It supports real-time 3-axis coordinate display, one-touch positioning, and memory functions for efficient multi-step neuroscience workflows.

Does the ASI-100 include brain atlas software for navigation?

Yes, the system features built-in brain atlas software that allows users to select target regions or input coordinates directly. It guides the motorized stereotaxic arm for accurate craniotomy, micro-injection, and electrode implantation in neuroscience research.

What is the travel range of the ASI-100 stereotaxic system?

This motorized stereotaxic instrument provides an 80 mm travel range on ML and DV axes and 30 mm on the AP axis, with ±30° rotation. The extended sliding base adds 80 mm front-to-back movement, offering a larger and more flexible workspace.

What applications is the ASI-100 automated stereotaxic system used for?

The ASI-100 is designed for electrode implantation, micro-nucleus injection, and single- or multi-site automated brain injections. It supports repeatable neuroscience experiments with programmable workflows and saved custom protocols.

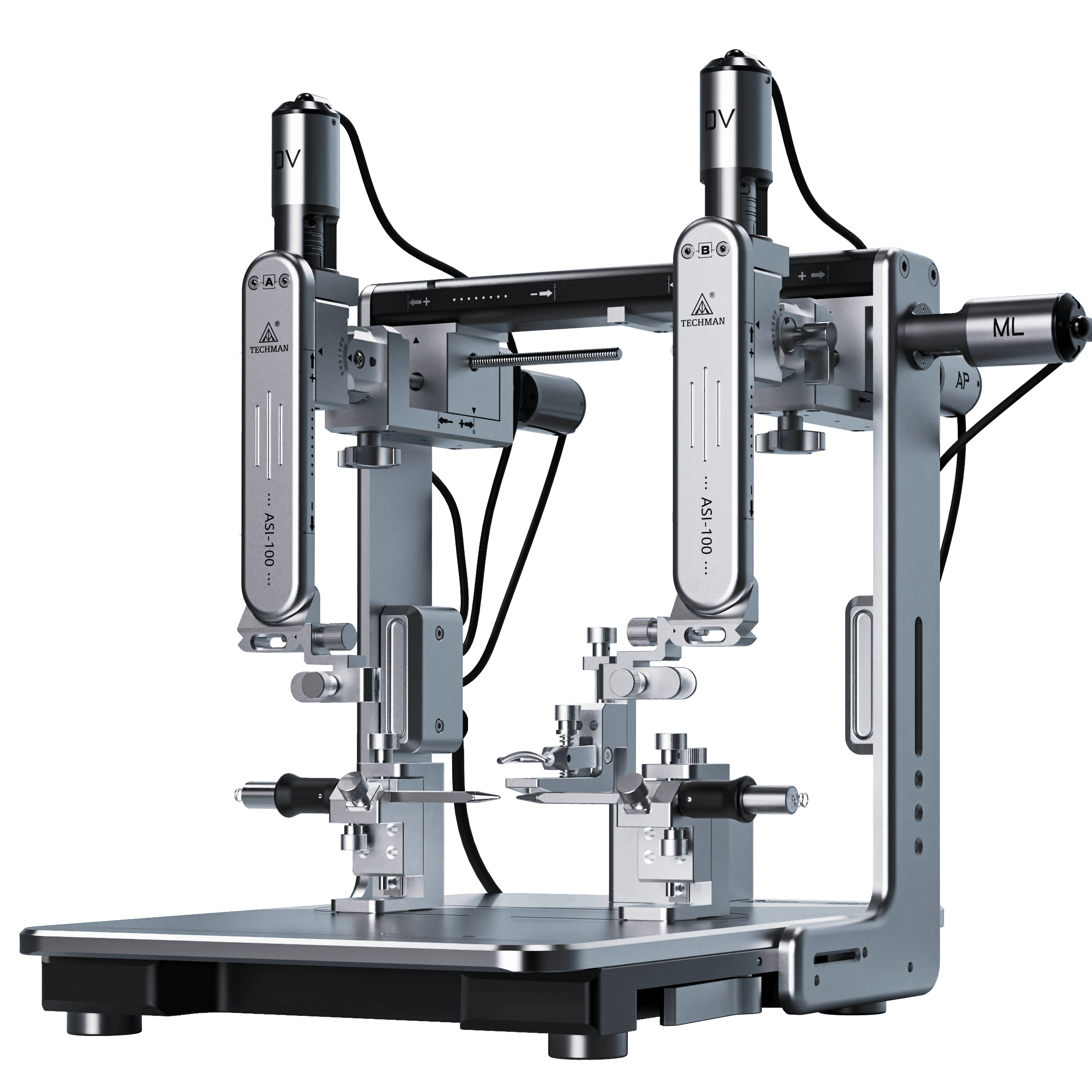

Techman Moterized Stereotaxic

Vendor: Techman

Type: Stereotaxic & Neurosurgery Systems

Precise control, easy to use, and equipped with multiple innovative designs. ... Read More

Name

Price Unit

Quantity

Moterized, 2-arm / Not Fully Automatic

$18,000.00

Moterized, right arm / Not Fully Automatic

$10,800.00

Moterized, left arm / Not Fully Automatic

$10,800.00

Moterized, 2-arm / Fully Automatic

$22,000.00

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Total Price:

$18,000.00

Perfect Match With

1/2

Shipping & lead times

In stock items usually ship within 2 business days
Custom / backordered items lead time vary. Contact us for a quote along with your exact delivery window.

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Feature

Highlights

Applications

Specifications

Order Information

Resources

FAQ

Customer Review

overview

The system combines high-precision robotic arms, an innovative gantry structure, an integrated controller, and smart software to deliver stable, efficient, and accurate operations for neuroscience research. Its design enhances stability, improves precision, streamlines workflows, and reduces operational difficulty.

Features & Benefits

High-Precision

Stepper motor-driven, 1 μm resolution, gap-free operation; software automatically calibrates arm coordinates, eliminating manual scale adjustments.

Smart Control

A single integrated controller manages two arms simultaneously, supports free switching and one-touch positioning; real-time display of 3-axis coordinates and speed; memory function for home and working positions.

Innovative designs

It features innovative designs in both software and mechanics, making it more user-friendly.

Highlights

Innovative Gantry Design

Enhanced stability, steadier arm movement and expanded workspace.

High-Precision Arm

Stepper motor-driven, 1 μm resolution, gap-free operation; software automatically calibrates arm coordinates, eliminating manual scale adjustments.

Smart Control

Extended Sliding Base

larger workspace, easier operation.

Intelligent Software(ASI-100A)

Built-in brain atlas enables users to select target regions or enter coordinates to guide the robotic arm for craniotomy, automatic injection, and electrode implantation. Experimental settings can be saved as custom programs.

Innovative Ear Bars

Multiple patented designs with customizable options, ensuring stable fixation and easy operation. Height adjustable to correct tilt.

Applications

Electrode implantation

Micro-nucleus injection

Single-& Multi-site automated injections

Specifications

Parameter	Description
Minimum Step Distance	1 μm
Travel Range	ML & DV axes: 80 mm, AP axis: 30 mm
Rotation Angle	±30° (ML & AP axes)
Base Platform Travel	80 mm (front/back)
Maximum Speed	3 mm/s

Order Information

Product Name	Model	Product Description	Remark
Moterized Stereotaxic	ASI-100	Moterized Stereotaxic (2-arm)	Upgradable to Automatic moterized Stereotaxic
	ASI-100R	Moterized Stereotaxic (Right arm)
	ASI-100L	Moterized Stereotaxic (Left arm)
	ASI-100A	Automatic moterized Stereotaxic (2-arm)

Certificate

For Research Use Only (RUO). Not for use in diagnostic procedures or patient testing.

Resources

Welcome to the User Manual! This manual is your go-to resource for understanding and utilizing our product efficiently. It offers comprehensive instructions, troubleshooting tips, and FAQs to help you navigate through its features seamlessly.

Stereotaxic Instrument ASI-100
