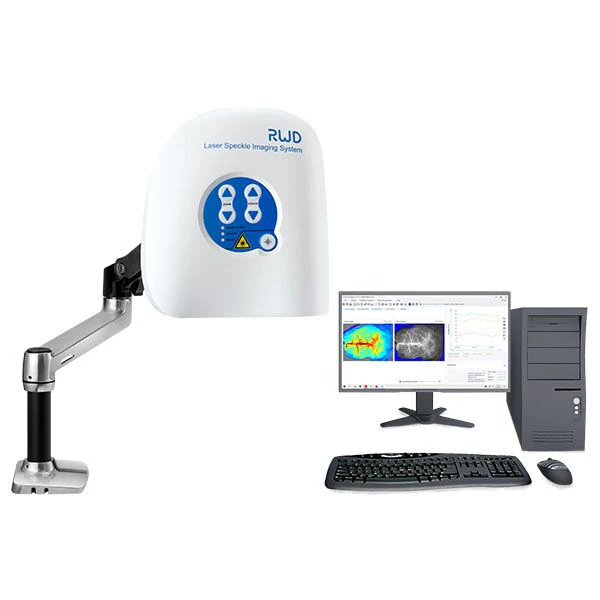

LSCI ZW Laser Speckle Contrast Imaging System
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
Academic pricing and trade in options may be available. Request a quote to receive the best price for your lab.
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
overview
Features & Benefits
Non-Contact & Contrast-Free Measurement
Enables non-contact blood flow measurement without contrast agents, reducing experimental complexity while preserving tissue integrity.
High Optical Resolution
Up to 3.9 μm/pixel resolution for clear visualization of fine tissue structures and microvascular details.
High-Speed Full-Field Imaging
Supports full-field imaging up to 100 fps, capturing dynamic blood flow changes in real time.
Wide Imaging Field
Imaging range from 0.57 × 0.75 cm² to 22.5 × 30 cm², suitable for diverse microcirculation research needs.
Fast & Precise Focusing
Combines automatic and manual focus functions for efficient and accurate imaging on various tissue surfaces.
Optimized Optical Filtering
Advanced lens assembly filters ambient and reflected light to ensure stable imaging and consistent data quality.
Class 1 Laser Safety
Measurement and indicating lasers comply with Class 1 safety standards for safe and user-friendly operation.
Reliable System Calibration
Supports precise calibration with a dedicated Calibration Box to maintain measurement accuracy.
Flexible External Integration
Trigger In/Out BNC connections enable synchronized communication with external experimental devices.
Unlimited Software Installation
Analysis software can be installed on unlimited PCs, supporting collaborative research workflows.
Advantages
Highlights
HD image & Video
2064*1544 high-resolution images; Optimize imaging details through algorithmic image stacking.
Accurate Data
Precise temperature control; Self-calibration program; Multiple optical lens coatings.
Large imaging area
Image size ranges from 5.7mm x 7.5mm to 225mm x 300mm； Motorised 10x optical zoom and auto focus.
Fast imaging
A high-speed camera (up to 100 FPS)； Fast data transfer with USB3.0.
Easy to use
No contrast agent required; Flexible stand and cart options; BNC communication interface.
Safe Laser
Class 1 per IEC 60825-1:2014 – Safe to use without eye protection.
Applications
Cerebral Blood Perfusion Monitoring
MCAO Model Assessment
Hind Limb Ischemia
Septic Shock
Tumor Angiogenesis
Kidney Blood Flow Monitoring
Thrombus
Chicken Chorioallantoic Membrane Assay
Skin Allergies
Laser Therapy
Eczema
Diabetic Foot
Specifications
| Parameter | Description |
|---|---|
| Resolution |
Max Camera Resolution: 2064 × 1544 pixels Best Resolution: 3.9 μm/pixel |
| Image | Flux / Gray / Intensity / Color / Overlay |
| Measurement Laser | 785 nm, Class 1 |
| Indicating Laser | 650 nm × 2, Class 1 |
| Focus | Auto / Manual (Fine Focus) |
| Trigger | 2 × BNC |
| Image Size | 0.57 × 0.75 – 22.5 × 30 cm² |
| Max Frame Rate | 100 fps (Full Field) |
| Zoom | 10× |
| Working Distance | 10 – 40 cm (Continuous) |
| System Calibration | Calibration Box |
| Software | Acquisition Software and Analysis Software |
