Description

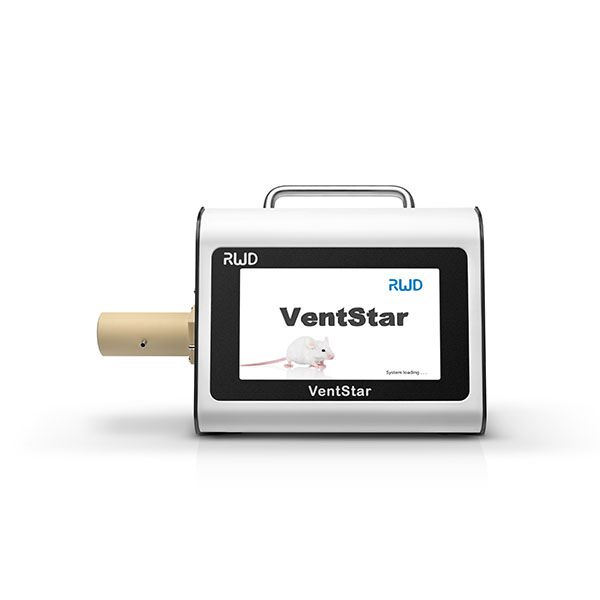

R416-AP is a mechanical ventilator used to assist animal respiration, suitable for mice, rats, and guinea pigs, and other animals weighing 10g-1kg.
It is widely used in basic medical research, clinical medicine,
animal medicine and other scientific research experiments (such as myocardial ischemia model making, lung function evaluation).
- Suitable for mice to guinea pigs range from 10g to 1kg.
- Convenient for the setting of animal ventilator data by inputting animal weight.
- Built-in VCV and PIPCV working mode.
- Real-time graphical display of tracheal pressure.
- Touch Screen with a 75-degree visual surface design for easy operation.
- Provide safe and effective intermittent positive pressure ventilation (IPPV), volume and pressure modes are available.
- Sound, intelligent text, error code and other fault alarm alerts
Specification
|
Suggested Weight Range |
10g～1kg |
| Species | Mouse/Rat～Guinea Pig |
| Tidal Volume Range (TV) | 0.05ml～5ml, Resolution: 0.001ml |
| Peak Inspiratory Pressure (PIP) | 1～50cmH2O, Resolution: 1 cmH2O Accuracy: ±0.7 cmH2O |
| PEEP | 0～10 cmH2O, Resolution: 1 cmH2O |
| Breath Rate (bpm) | 10～300 bpm |
| I:E Ratio | 20～80% |
| Sigh Breath | Frequency: Every 10～999 or Manual Volume: 0～20% of tidal volume (in volume mode) or PIP (in pressure volume) |
| Display | 7’’ LCD touchscreen, resistive |
| Remote Communication | RS-485 |
| Power Supply | 100～240VAC, 50/60Hz |
| Input Power | 24V DC, adaptor: 40W Max |
| Safety Alarms | Over-/Under-pressure, occlusion, high PEEP |
| Dimensions | 320*210*180mm |
| Weight | 5.1kg |
| Operating Temperature | 4℃～40℃ (40°F～104°F) |
| Operating Humidity | 20～80%, non-condensing |
| Storage Temperature & Humidity | -10℃～70℃ (14°F～158°F), 20%～80% RH, non-condensing |
Order Information
| Cat No. | Product Description |
| R415 | Small Animal Ventilator |
| R415-AP | Accessory package for Anesthesia and Ventilator |
R416-AP VentStar Small Animal Ventilator
$3,500.00
