RWD MP-1000 Micropipette Puller
Vendor:
RWD Life Science
Type:
Instruments & Utilities
Horizontal motorized micropipette puller with color touchscreen, preset programs, softening point testing, humidity control chamber, and positional scale mar...
...
Read More
Price Unit
Quantity
$7,800.00
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
COPY
Total Price:
$7,800.00
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
Share:
overview
Features & Benefits
Improved Electrode Resistance Stability
Electrode resistance stability has been improved by at least 10%.
Integrated Manipulation Arm
Horizontal integrated arm reduces assembly errors and enhances experimental experience.
Glass Tube Position Scale
Facilitates simultaneous extraction of two electrodes with identical length.
Enlarged Buttons and Extended Levers
Makes operation easier and more intuitive.
Filament Position Scale and Fixed Design
Simplifies replacement of various filament models.
Customizable Pull Protocols
Provides reference protocols for different capillary glasses, filaments, and microelectrode types.
Integrated Humidity Control Chamber
Keeps air around filament and capillary glass dry during pulling to avoid adverse effects of humidity.
One-Button Glass Softening Point Test
Conveniently displayed directly on the main interface.
Safe Heat Mode
Prevents filament damage from high temperature.
Preheating and Constant Temperature
Reduces influence of accumulated jaw heat on pulling consistency.

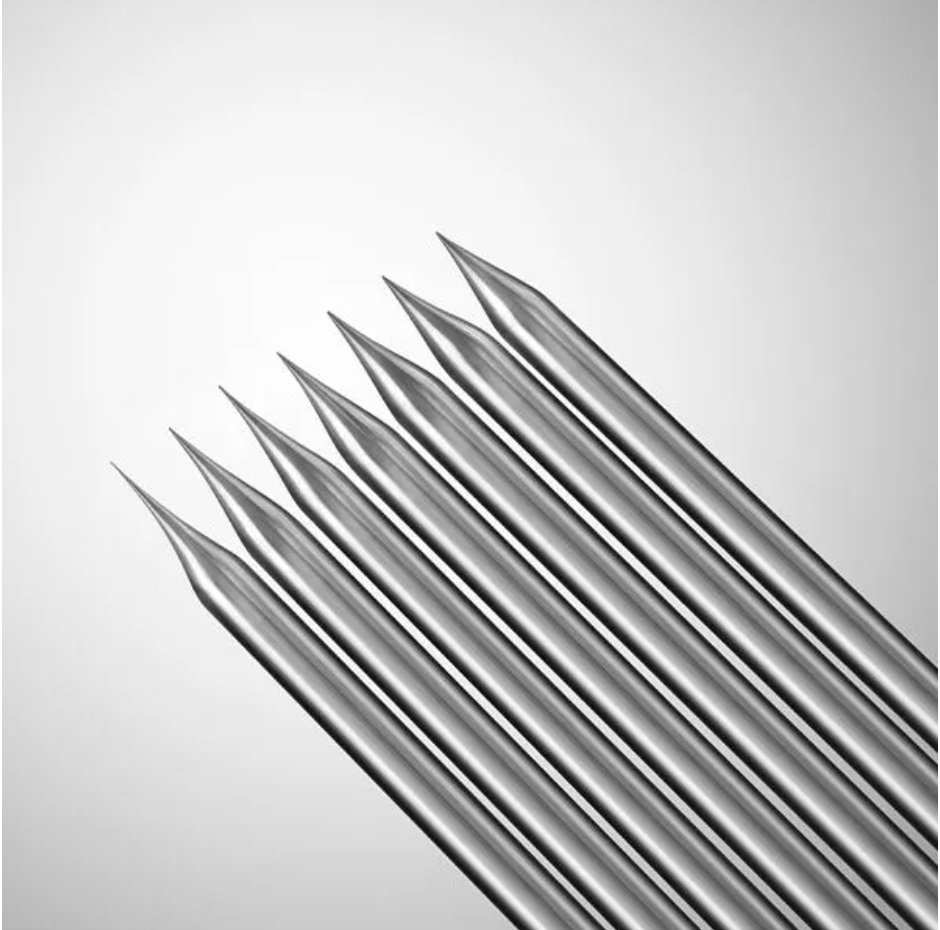

Stable Symmetrical Microelectrodes
Produces tips <0.06 μm, taper 3–15 mm, resistance 1–100 MΩ with high repeatability.
System Diagnostic Function
Automatically checks whether all components are in normal working condition.
Copy-and-Paste Function
Easily copy existing programs; stores up to 150 user-defined programs.
Highlights
Machine structure
A horizontal integrated manipulator arm structure reduces assembly errors, resulting in an improvement of at least 10% in electrode resistance stability.

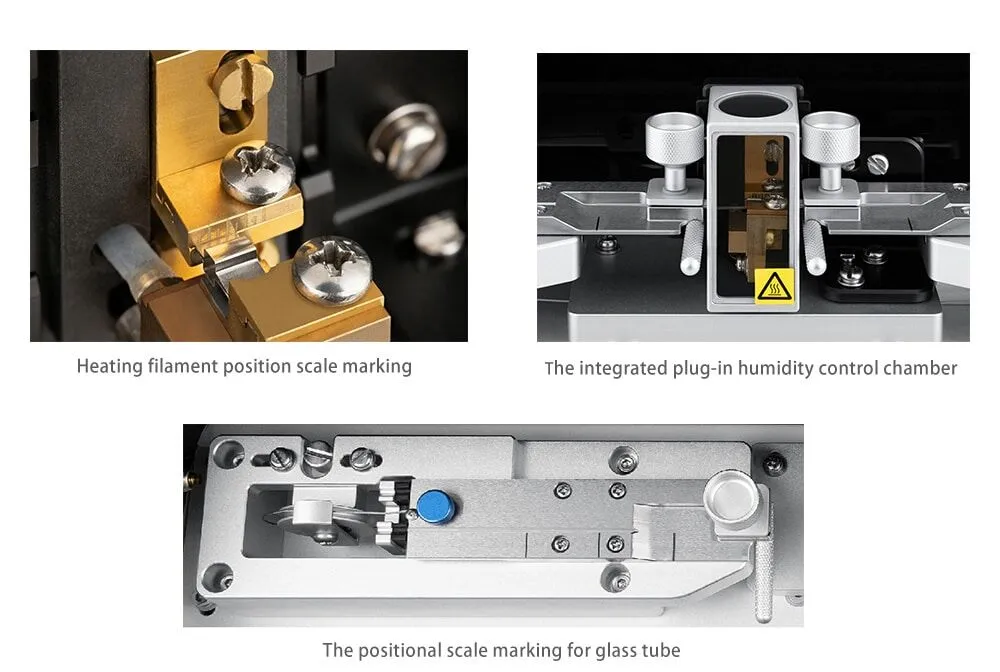

Heating filament
The positional scale marking and the fixing slot for the heating filament facilitate the installation of the heating filament.
The integrated plug-in humidity control chamber
An integrated plug-in humidity control chamber facilitates the disassembly process, reducing the time cost for replacing heating elements; it also avoids the adverse effects of damp air on the drawing results.
Button
Enlarged buttons with eye-catching colors, making the operation simpler and allowing users to easily press the buttons.
Pull handle
Extended pull handle for effortless and highly efficient operation.
Built-in pull program
Three-step setup to recommend parameters, lowering the usage threshold and reducing the time cost of preliminary experiments.
Applications
Patch-clamp experiment
Microinjection or microelectrode: Cranial injection
Microinjection or microelectrode: Intravitreal injection
Microinjection or microelectrode: Insect injection
Microinjection or microelectrode: C. elegans injection
Microinjection or microelectrode: Embryo injection
Microinjection or microelectrode: Cell injection
Microinjection or microelectrode: Embryo Electroporation
Microinjection or microelectrode: Zebrafish Embryo injection
Others: 3D print nozzle
Others: Cell capture
Others: Microfluidic
Specifications
| Item | Quantity | Description |
|---|---|---|
| Core Equipment | ||
| Fiber Photometry Main Device | 1 | Includes: Host, power cord, 3 USB cables, USB expansion interface, software U disk |
| Computer | 1 | Includes pre-installed software, I5-10500H/16G/500G/WIN10 (1920×1080) |
| Optical Accessories | ||
| Optical fiber | 1 | Low Autofluorescence Fiber-optic Patch Cords 200um/0.37NA/2m, Φ1.25mm or Φ2.5mm |
| Fiber Cannula sleeves | 1 | Black Ceramic Sleeves, Φ1.25mm or Φ2.5mm |
| Photobleaching device | 1 | FC/PC Patch Cord photobleaching machine (R810-1) |
| Behavior Monitoring | ||
| Behavior Camera | 1 | Record video of animal behavior and identify animal tracks, USB3.0, 3M |
| Behavior Camera bracket | 1 | Adjustable height range 0.8–1.5m, Rotation Angle 360° |
| Software Related | ||
| U disk | 1 | Software key (Not for analysis function) |
Order Information
| Item | Quantity | Description |
|---|---|---|
| Core Equipment | ||
| Fiber Photometry Main Device | 1 | Includes: Host, power cord, 3 USB cables, USB expansion interface, software U disk |
| Computer | 1 | Includes pre-installed software, I5-10500H/16G/500G/WIN10 (1920×1080) |
| Optical Accessories | ||
| Optical fiber | 1 | Low Autofluorescence Fiber-optic Patch Cords 200um/0.37NA/2m, Φ1.25mm or Φ2.5mm |
| Fiber Cannula sleeves | 1 | Black Ceramic Sleeves, Φ1.25mm or Φ2.5mm |
| Photobleaching device | 1 | FC/PC Patch Cord photobleaching machine (R810-1) |
| Behavior Monitoring | ||
| Behavior Camera | 1 | Record video of animal behavior and identify animal tracks, USB3.0, 3M |
| Behavior Camera bracket | 1 | Adjustable height range 0.8–1.5m, Rotation Angle 360° |
| Software Related | ||
| U disk | 1 | Software key (Not for analysis function) |
