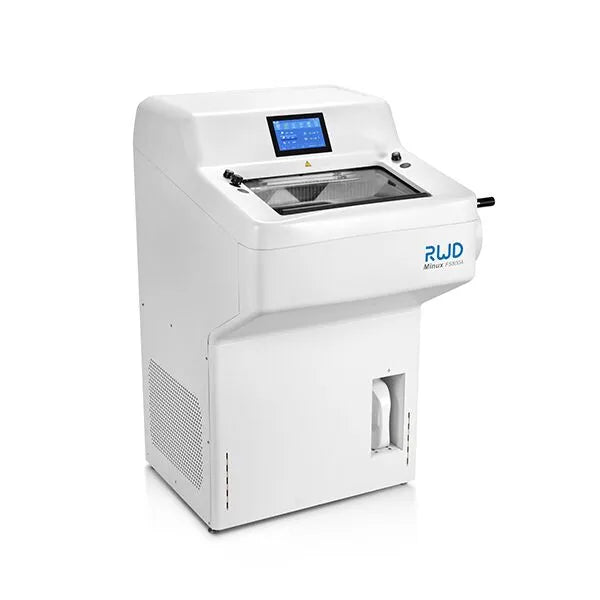

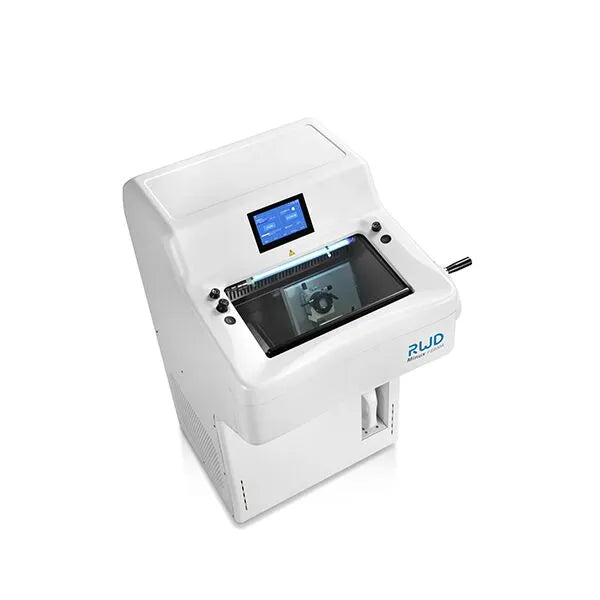

Minux® FS800 Cryostats Semi-Automatic
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
Academic pricing and trade in options may be available. Request a quote to receive the best price for your lab.
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
overview
Features & Benefits
Stable Temperature
The advanced temperature control system, compressor and cooling system perfectly guarantee temperature stability.
Stable Slice Quality
High-precision cross rail and screw, five-phase high-resolution sampling motor and horizontal sampling slider made of aviation aluminum form a precise sampling system to ensure stable slice quality.
UVC Disinfection
Adopting advanced low-temperature UVC disinfection technology to effectively kill bacteria and viruses, disinfecting the inner surface and the air of the cabinet to reduce the risk of contamination by infectious materials.
Waste Liquid Management
Waste liquid volume will be displayed on the touch screen. Full bottle alarm prevents waste liquid from flowing out and contaminating the ground.
Efficient Operation
Boasting a colorful touch-sensitive screen. Integrating coarse sample feeding, trimming and section switching, and slice parameter adjustment with a joystick to constitute an efficient operating system.
Quick Positioning
Precise positioning system with ±8° visual pointer makes it easy to adjust the specimen clamp to the target angle, reducing trimming and sample waste.
Automatic Sleep & Wake-up
Saves energy, simplifies manual operation, and reduces waiting time.
Highlights
Available Types
UV: for large specimen numbers and varying specimen types with UVC for increased user safety. Specimen: Standard type with individually controlled temperature settings on both the cabinet and the object specimen holder.
Applications
Pathological diagnosis
Biological research
Neuroanatomical research
Pharmaceutical research
Clinical cryo-sectioning needs
Specifications
| Model | FS800 Semi-Automated | FS800A Automated |
| Section thickness setting range: 0.50 – 100 ?m | √ | √ |
| Trimming section thickness setting range: 1 – 800 ?m | √ | √ |
| Electric sectioning speed: 0-1800?m adjustable | √ | √ |
| Specimen retraction: 0-250μm ajustable | √ | √ |
| Specimen feed: 28mm | √ | √ |
| Vertical stroke: 70mm | √ | √ |
| Specimen orientation with zero position horizontal/vertical rotation: X/Y axis 8° | √ | √ |
| Number of refrigerated sites: 15 | √ | √ |
| Number of fast cooling sites: 2 | √ | √ |
| Freezer refrigeration temperature: 0℃～－35℃ | √ | √ |
| Sample head minimum cooling temperature: －50℃ | √ | √ |
| Fully automated and semi- automated mode switch | √ | |
| Emergency stop button | √ | |
| Cut window function | √ | |
| Slice speed selection | √ | |
| Multiple slice modes | √ | |
| Pedals(optional) | √ |
Order Information
| Model | Type | UVC disinfection | Vacuum | Specimen cooling system | Auto section | note |
| FS800 | Specimen | √ | √ | Most popular cryostat with individually controlled temperature settings on both the cryochamber and the specimen holder. |
Certificate
