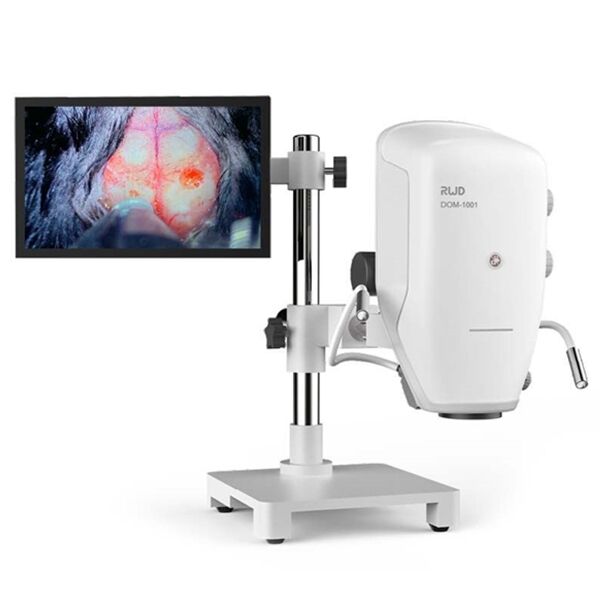

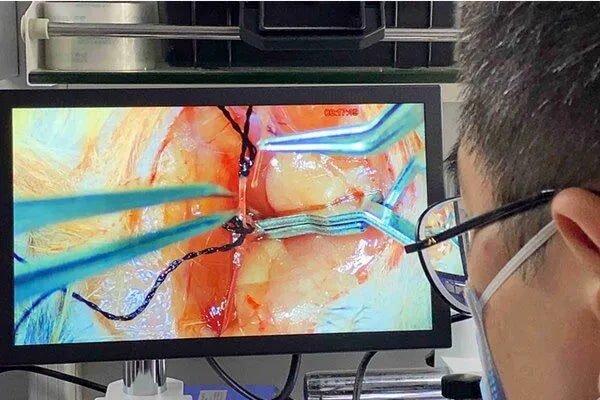

DOM-1001 is a 16 Million Pixels high-end integrated digital microscope, and enables real-time record, collect, and share high-definition 4K images and videos(1080P). Multiple people can view samples simultaneously, supporting the whole process of taking pictures and videos. it is widely applied in Life science: dental, animal surgery, tumor, morphological observation, embryologic histology, education, Industry & Manufacturing: electronics& semiconductor, metals, medical, new energy, etc.
Benefits to customers:
Perfect quality of use and image
Compatible with stereotaxic frame

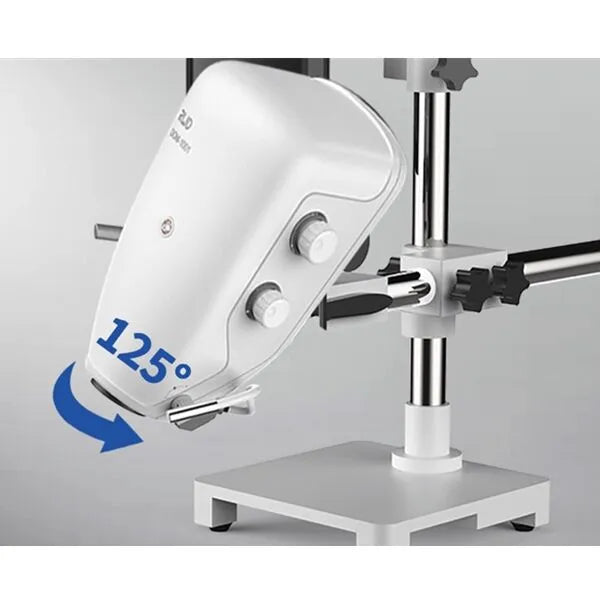

High stability, easy to use and move
| Parameter item | Technical Item Description |
| Resolution | 1920×1080pixel |
| Sensor grade | Panasonic 1600W 1/2.33″CMOS |
| Pixel size | 1.335μmX1.335μm |
| Sensor size | 6.18mmx4.65mm |
| magnification | 18-100x (27-inch monitor) |
| Zoom Ratio | 7:1 |
| Working distance | 180mm |
| The depth of field | 6.7 mm（Highest magnification）, 0.41 mm（Lowest magnification） |
| Model | Type Name | Number | Notes |
| DOM-1001 | Digital Microscope | N | Standard configuration includes 11.6-inch display |
| S2721HS | Dell Full HD Monitor – 27 inches | N | Matching (recommended) |
