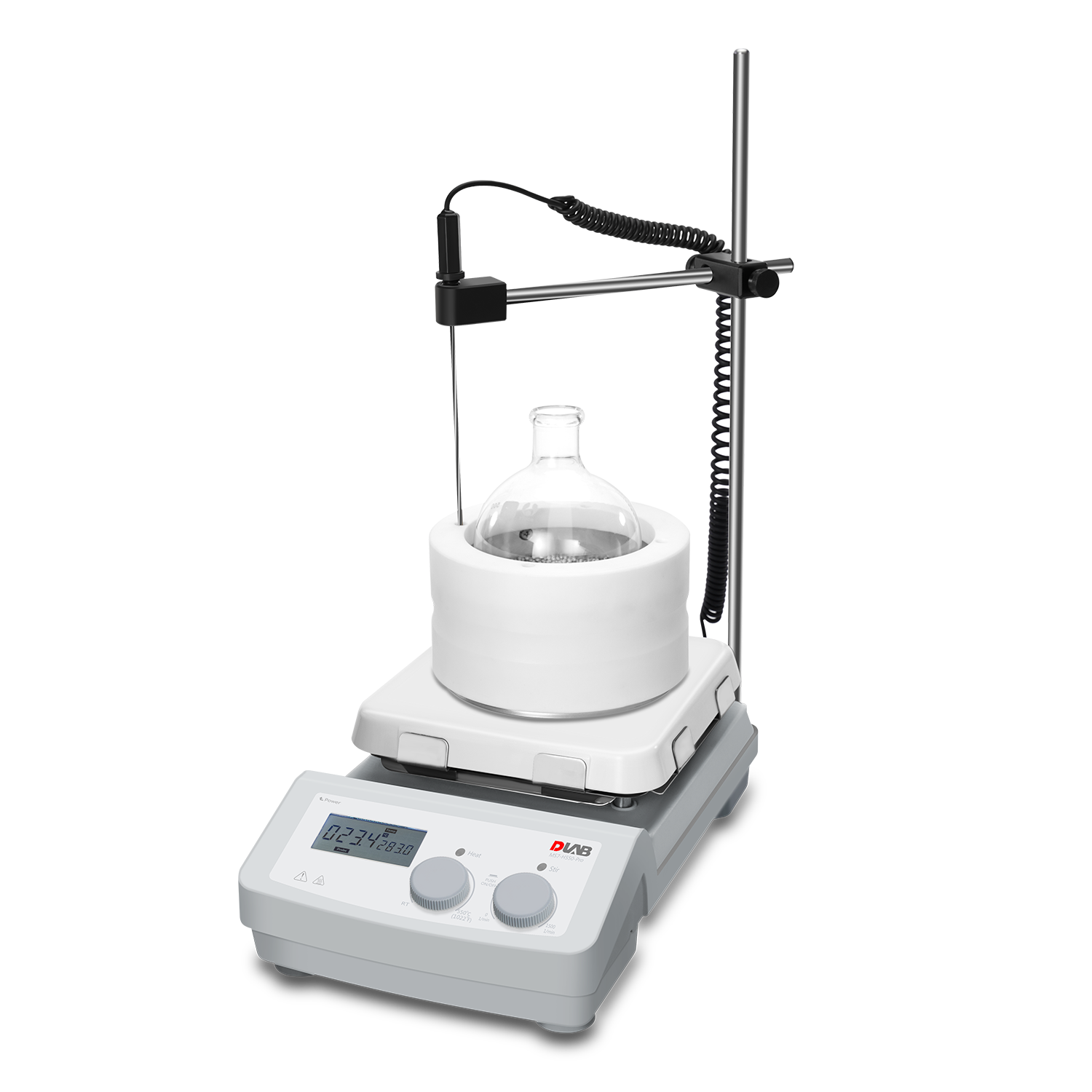

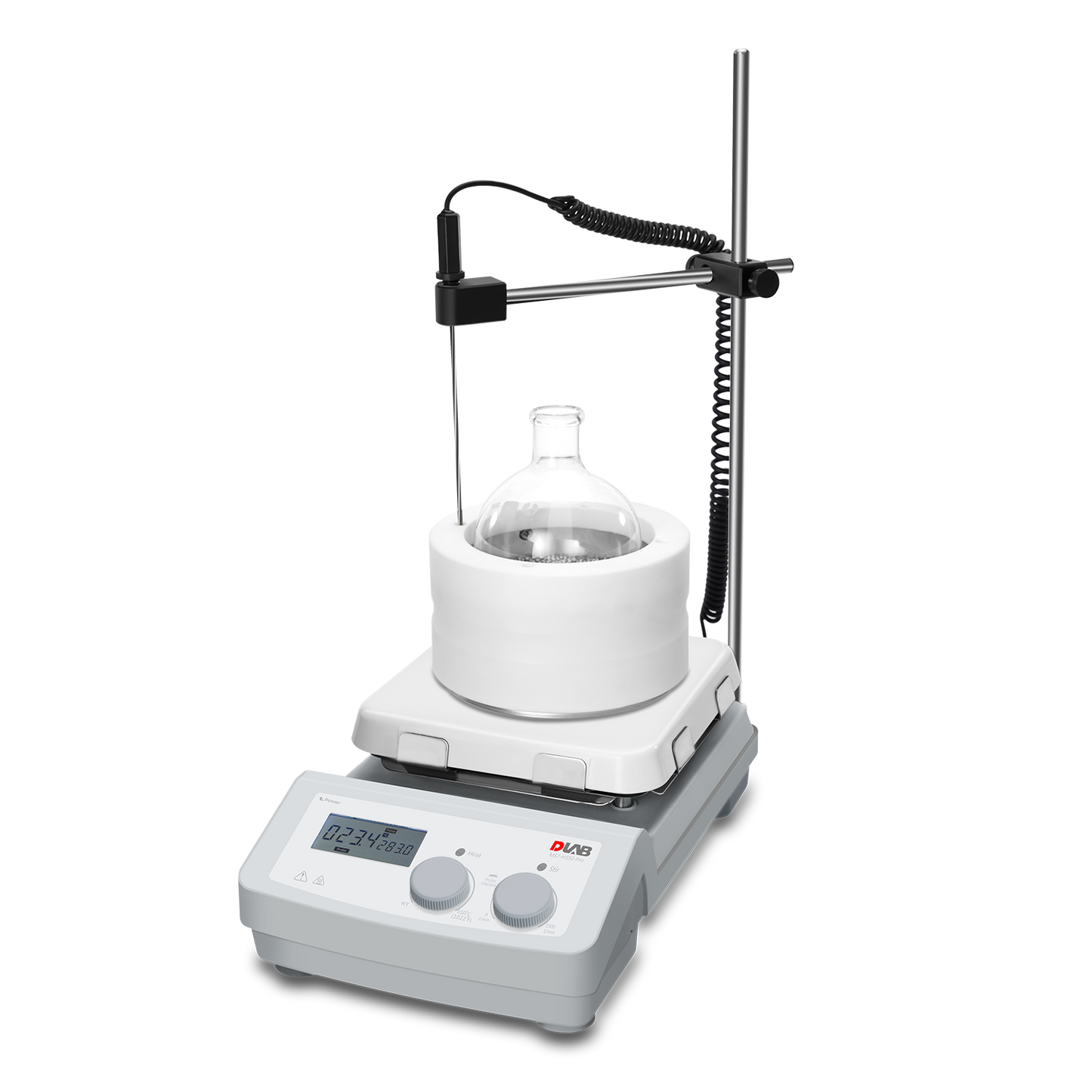

MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate

MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate

Vendor: DLAB Scientific Inc.
Type: Benchtop Equipment & Devices
Magnetic Hotplate Stirrer is an essential laboratory instrument.A Magnetic Hotplate Stirrer typically consists of a hotplate surface and a magnetic stirring ... ... Read More
Price Unit
Quantity
$782.40

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY
Total Price:
$782.40

Perfect Match With
1/2

Delivery timelines will be provided with your quote

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Share:
Overview
Feature
Specifications
Order Information
Customer Review

overview

Magnetic Hotplate Stirrer is an essential laboratory instrument.A Magnetic Hotplate Stirrer typically consists of a hotplate surface and a magnetic stirring mechanism. The hotplate is designed to heat the liquid sample placed on it. It can provide a stable and adjustable heat source, which is crucial for various chemical and biological reactions that require specific temperature conditions.The magnetic stirring part works by using a rotating magnetic field. A small magnetic stir bar is placed inside the container with the liquid. As the magnetic field rotates, the stir bar spins, effectively mixing the liquid evenly. This ensures good homogeneity of the solution, which is important for processes such as dissolving substances, chemical reactions where reactants need to be well - mixed, and in sample preparation.It is widely used in scientific research, in fields like chemistry, biochemistry, and materials science. For example, in a chemistry experiment, when synthesizing a compound that needs to be heated and stirred simultaneously, the Magnetic Hotplate Stirrer can play a significant role. It offers convenience and accuracy, enabling researchers to precisely control the heating temperature and the speed of stirring, thus contributing to the reproducibility and success of experiments.

Features & Benefits

LCD displays actual temperature & speed.

Built-in PID controller ensures safe heating of the medium with overheating protection.

Maximum heating plate temperature up to 550℃.

Glass ceramic work plate is resistant to corrosion and is easy to clean.

External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃.

Digital speed control with Maximum range of 1500rpm.

Outstanding brushless DC motor offers more stirring power.

Two knobs enable easy adjustment of speed and temperature.

“HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off.

Remote function provides PC control and data transmission.

Specifications

Specifications

Specifications MS7-H550-Pro
Work Plate Dimension [W×D] 184 × 184 mm (7 inch)
Work Plate Material Glass ceramic
Motor Type Brushless DC motor
Stirring Positions 1
Max. Stirring Quantity [H₂O] 20 L
Max. Magnetic Bar Length 80 mm
Speed Range 100–1500 rpm, resolution ±1 rpm
Speed Display LCD
Temperature Display LCD
Heating Temperature Range Room Temp.–550°C, increment 1°C
Temperature Control Accuracy ±1°C (<100°C) ±1% (>100°C)
Overheating Protection 580°C
Temperature Display Accuracy ±0.1°C
External Temperature Sensor PT1000 (accuracy ±0.2°C)
"Hot" Warning 50°C
Data Connector RS232
Protection Class IP21
Motor Rating Output 10 W
Power 1050 W
Heating Output 1000 W
Voltage / Frequency 100–120/200–240 V, 50/60 Hz
Dimension [W×D×H] 215 × 360 × 112 mm
Weight 5.3 kg
Timer Function -
Permissible Ambient Temp. & Humidity 5–40°C, 80% RH

Order Information

Specifications

Specifications MS7-H550-Pro
Work Plate Dimension [W×D] 184 × 184 mm (7 inch)
Work Plate Material Glass ceramic
Motor Type Brushless DC motor
Stirring Positions 1
Max. Stirring Quantity [H?O] 20 L
Max. Magnetic Bar Length 80 mm
Speed Range 100–1500 rpm, resolution ±1 rpm
Speed Display LCD
Temperature Display LCD
Heating Temperature Range Room Temp.–550°C, increment 1°C
Temperature Control Accuracy ±1°C (<100°C) ±1% (>100°C)
Overheating Protection 580°C
Temperature Display Accuracy ±0.1°C
External Temperature Sensor PT1000 (accuracy ±0.2°C)
""Hot"" Warning 50°C
Data Connector RS232
Protection Class IP21
Motor Rating Output 10 W
Power 1050 W
Heating Output 1000 W
Voltage / Frequency 100–120/200–240 V, 50/60 Hz
Dimension [W×D×H] 215 × 360 × 112 mm
Weight 5.3 kg
Timer Function -
Permissible Ambient Temp. & Humidity 5–40°C, 80% RH
