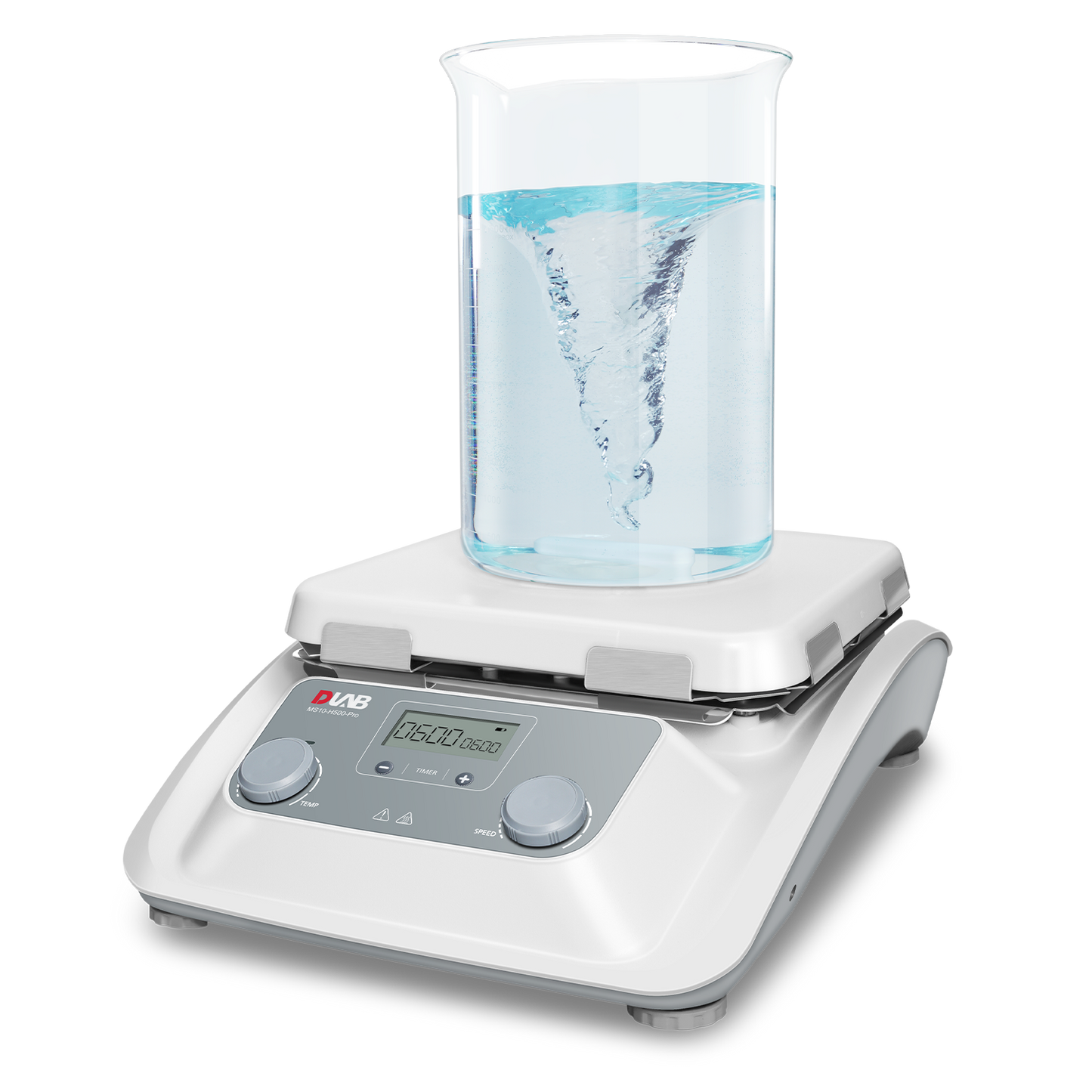

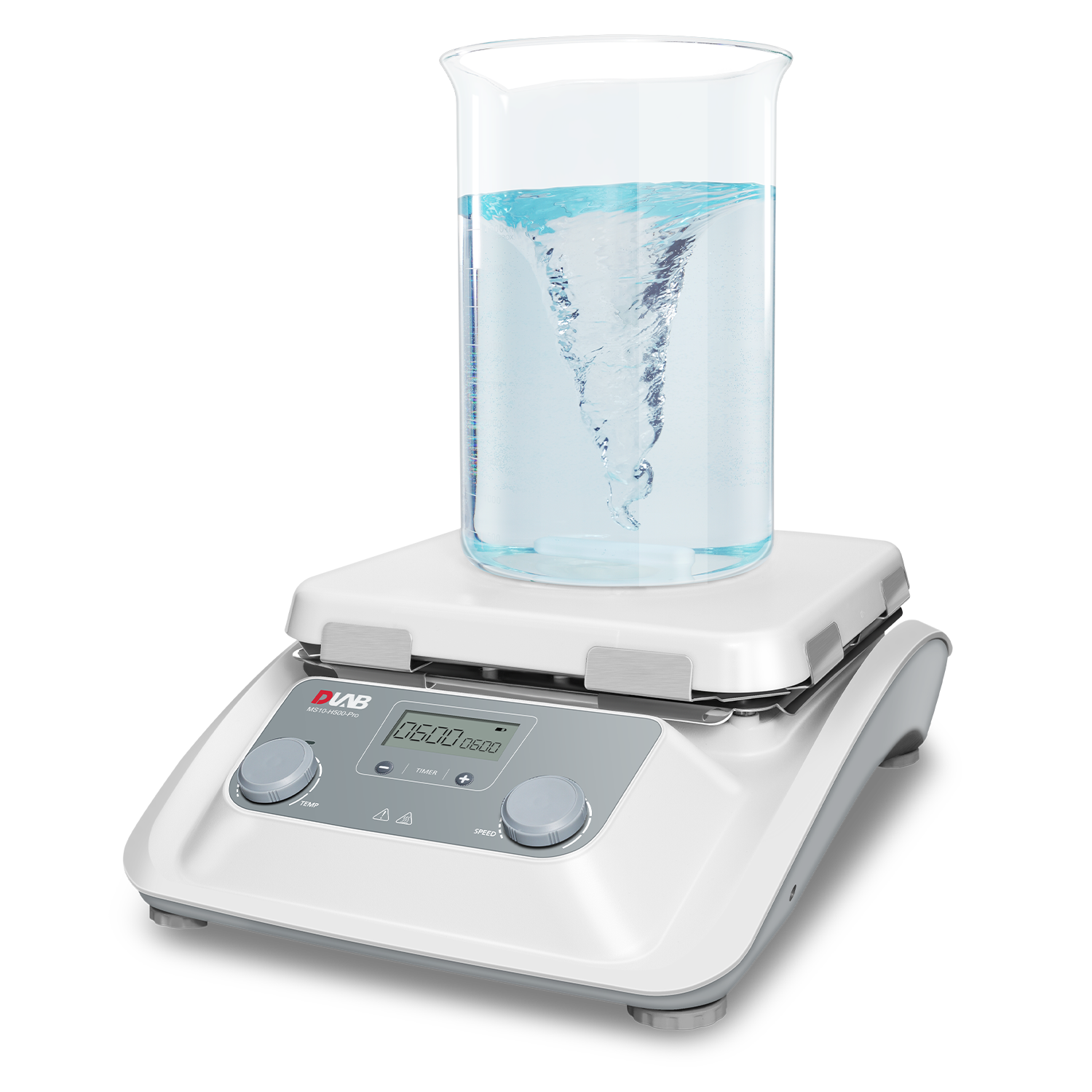

MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
Features & Benefits
Large Volume
Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring.
Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer.
LCD display for precise monitoring of speed and temperature. External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.2°C.
Digital speed control of 100 -1500rpm.
Max. heating plate temperature 500℃.
The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off.
Data connector
The SD card also records the instrument's running data in real time.
Timing function
The running time of the instrument can be set.
Specifications
Specifications
| Specifications | MS10-H500-Pro |
| Work Plate Dimension [W×D] | 254 × 254 mm (10 inch) |
| Work Plate Material | Glass ceramic |
| Motor Type | Brushless DC motor |
| Stirring Positions | 1 |
| Max. Stirring Quantity [H₂O] | 30 L |
| Max. Magnetic Bar Length | 80 mm |
| Speed Range | 100–1500 rpm, resolution ±1 rpm |
| Speed Display | LCD |
| Temperature Display | LCD |
| Heating Temperature Range | Room Temp.–500°C, increment 1°C |
| Temperature Control Accuracy | ±1°C (<100°C) ±1% (>100°C) |
| Overheating Protection | 540°C |
| Temperature Display Accuracy | ±0.1°C |
| External Temperature Sensor | PT1000 (accuracy ±0.2°C) |
| "Hot" Warning | 50°C |
| Data Connector | SD card |
| Protection Class | IP20 |
| Motor Rating Output | 10 W |
| Power | 1700 W |
| Heating Output | 1500 W |
| Voltage / Frequency | 100–120 / 200–240 V, 50/60 Hz |
| Dimension [W×D×H] | 328 × 424 × 138 mm |
| Weight | 7.1 kg |
| Timer Function | 1 min – 99 h 59 min |
| Permissible Ambient Temp. & Humidity | 5–40°C, 80% RH |
Order Information
Specifications
| Specifications | MS10-H500-Pro |
| Work Plate Dimension [W×D] | 254 × 254 mm (10 inch) |
| Work Plate Material | Glass ceramic |
| Motor Type | Brushless DC motor |
| Stirring Positions | 1 |
| Max. Stirring Quantity [H?O] | 30 L |
| Max. Magnetic Bar Length | 80 mm |
| Speed Range | 100–1500 rpm, resolution ±1 rpm |
| Speed Display | LCD |
| Temperature Display | LCD |
| Heating Temperature Range | Room Temp.–500°C, increment 1°C |
| Temperature Control Accuracy | ±1°C (<100°C) ±1% (>100°C) |
| Overheating Protection | 540°C |
| Temperature Display Accuracy | ±0.1°C |
| External Temperature Sensor | PT1000 (accuracy ±0.2°C) |
| ""Hot"" Warning | 50°C |
| Data Connector | SD card |
| Protection Class | IP20 |
| Motor Rating Output | 10 W |
| Power | 1700 W |
| Heating Output | 1500 W |
| Voltage / Frequency | 100–120 / 200–240 V, 50/60 Hz |
| Dimension [W×D×H] | 328 × 424 × 138 mm |
| Weight | 7.1 kg |
| Timer Function | 1 min – 99 h 59 min |
| Permissible Ambient Temp. & Humidity | 5–40°C, 80% RH |
