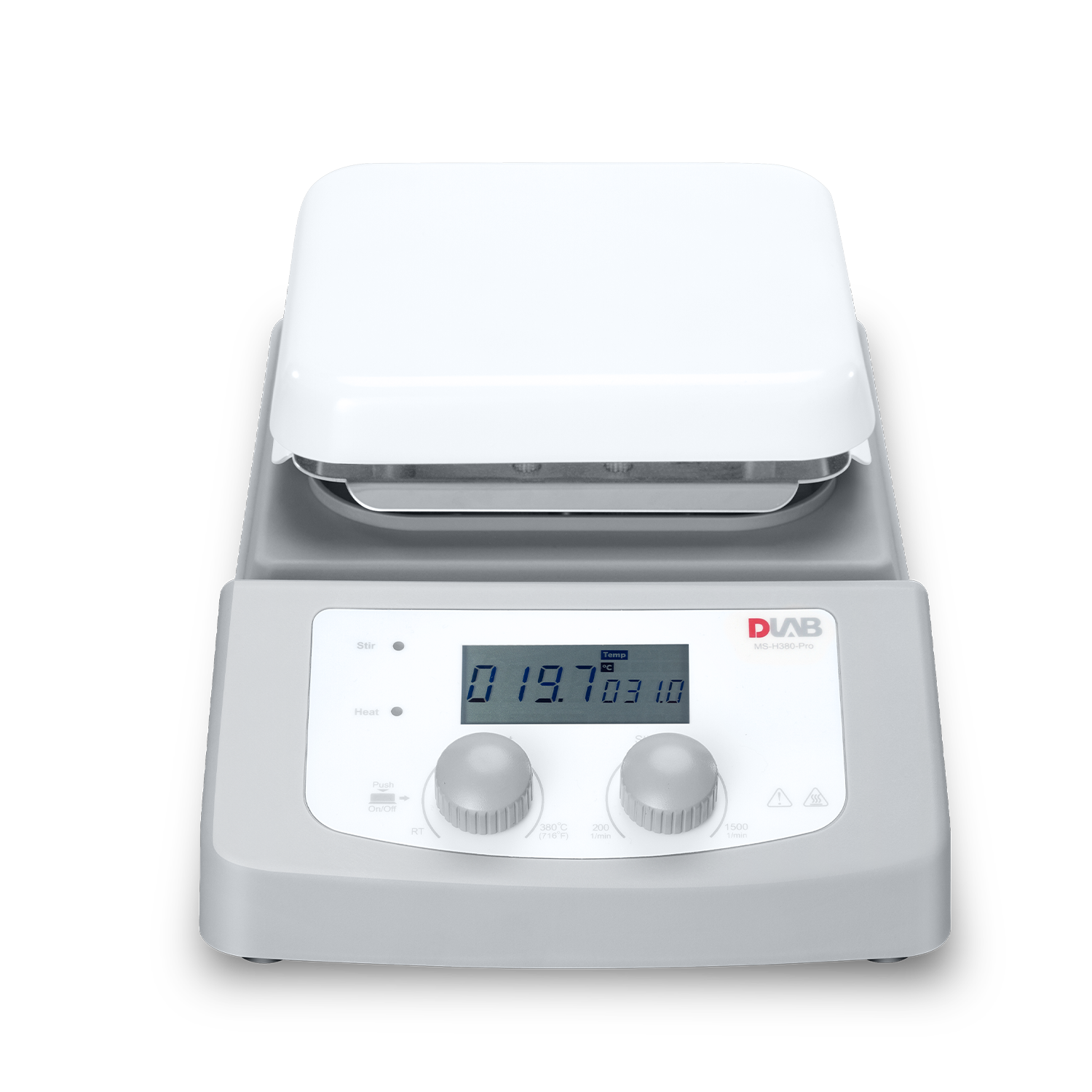

MS-H380-Pro LCD Digital Magnetic Hotplate Stirrer
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
Features & Benefits
Maximum heating temperature is 380°C.
High resolution LCD displays actual temperature and speed.
Brushless DC motor is maintenance free.
Aluminum ceramIc coating work plate, allowing immediate heat transfer.
External temperature control is possible with temperature sensor PT1000.
Digital speed control with Maximum speed up to 1500rpm.
Maximum stirring quantity of H2O at 5L.
Specifications
Specifications
| Specifications | MS-H380-Pro |
| Work Plate Dimension [W×D] | 140 × 140 mm |
| Work Plate Material | Aluminum cover with ceramic coating |
| Motor Type | Brushless DC motor |
| Stirring Positions | 1 |
| Max. Stirring Quantity [H₂O] | 5 L |
| Max. Magnetic Bar Length | 50 mm |
| Speed Range | 200–1500 rpm |
| Speed Display | LCD |
| Temperature Display | LCD |
| Heating Temperature Range | Room Temp.–380°C |
| Heating Liquid Temperature Control Accuracy | ±1°C (<100°C) ±1% (>100°C) |
| Overheating Temperature Protection | 420°C |
| Temperature Display Accuracy | ±0.1°C |
| External Temperature Sensor | PT1000 (accuracy ±0.2°C) |
| "Hot" Warning | 50°C |
| Data Connector | - |
| Protection Class | IP21 |
| Timer Function | - |
| Motor Rating Output | 1.8 W |
| Power | 510 W |
| Heating Output | 500 W |
| Voltage / Frequency | 100–120/200–240 V, 50/60 Hz |
| Dimension [W×D×H] | 320 × 180 × 108 mm |
| Weight | 2.2 kg |
| Permissible Ambient Temp. & Humidity | 5–40°C, 80% RH |
Order Information
Specifications
| Specifications | MS-H380-Pro |
| Work Plate Dimension [W×D] | 140 × 140 mm |
| Work Plate Material | Aluminum cover with ceramic coating |
| Motor Type | Brushless DC motor |
| Stirring Positions | 1 |
| Max. Stirring Quantity [H?O] | 5 L |
| Max. Magnetic Bar Length | 50 mm |
| Speed Range | 200–1500 rpm |
| Speed Display | LCD |
| Temperature Display | LCD |
| Heating Temperature Range | Room Temp.–380°C |
| Heating Liquid Temperature Control Accuracy | ±1°C (<100°C) ±1% (>100°C) |
| Overheating Temperature Protection | 420°C |
| Temperature Display Accuracy | ±0.1°C |
| External Temperature Sensor | PT1000 (accuracy ±0.2°C) |
| "Hot" Warning | 50°C |
| Data Connector | - |
| Protection Class | IP21 |
| Timer Function | - |
| Motor Rating Output | 1.8 W |
| Power | 510 W |
| Heating Output | 500 W |
| Voltage / Frequency | 100–120/200–240 V, 50/60 Hz |
| Dimension [W×D×H] | 320 × 180 × 108 mm |
| Weight | 2.2 kg |
| Permissible Ambient Temp. & Humidity | 5–40°C, 80% RH |
