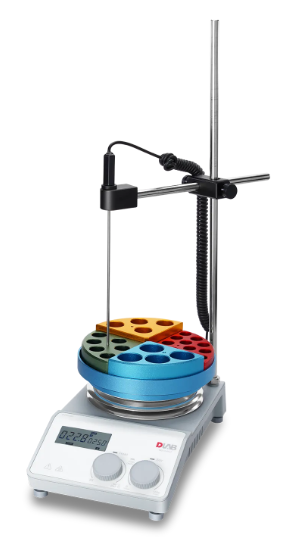

MS-H-Pro+ LCD Digital Magnetic Hotplate Stirrer
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
Features & Benefits
DC brushless motor free of maintenance and spark, and with long service life.
Digital temperature control up to 340°C.
Digital speed control up to 1500rpm.
Maximum stirring quantity of H2O is 20L.
Safety circuits provide overheating protection.
“HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off.
External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C.
Work plate with ceramic coating provides good chemical-resistantperformance.
Remote function provides PC control and data transmission.
Wide variety of accessories available to choose.
Specifications
Specifications
| Specifications | MS-H-Pro+ |
| Work Plate Dimension [W×D] | Ø135 mm (5 inch) |
| Work Plate Material | Stainless steel cover with ceramic coating |
| Motor Type | Brushless DC motor |
| Stirring Positions | 1 |
| Max. Stirring Quantity [H₂O] | 20 L |
| Max. Magnetic Bar Length | 80 mm |
| Speed Range | 100–1500 rpm, resolution ±1 rpm |
| Speed Display | LCD |
| Temperature Display | LCD |
| Heating Temperature Range | Room Temp.–340°C, increment 1°C |
| Heating Liquid Temperature Control Accuracy | ±1°C (<100°C) ±1% (>100°C) |
| Overheating Temperature Protection | 420°C |
| Temperature Display Accuracy | ±0.1°C |
| External Temperature Sensor | PT1000 (accuracy ±0.2°C) |
| "Hot" Warning | 50°C |
| Data Connector | RS232 |
| Protection Class | IP21 |
| Motor Rating Output | 10 W |
| Power | 550 W |
| Heating Output | 500 W |
| Voltage / Frequency | 100–120/200–240 V, 50/60 Hz |
| Dimension [W×D×H] | 160 × 280 × 100 mm |
| Weight | 2.8 kg |
| Permissible Ambient Temp. & Humidity | 5–40°C, 80% RH |
