Hot Plate

Hot Plate

Vendor: SANS
Type: Animal Research Equipment
The hot plate test has been the gold standard test for thermal pain tests in rodents and acts as an effective screening tool interventions of analgesia. SANS... ... Read More
Price Unit
Quantity
$3,341.52
Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY
Total Price:
$3,341.52

Perfect Match With
1/2

Delivery timelines will be provided with your quote

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Share:
Overview
Feature
Advantages
Specifications
Order Information
Customer Review

overview

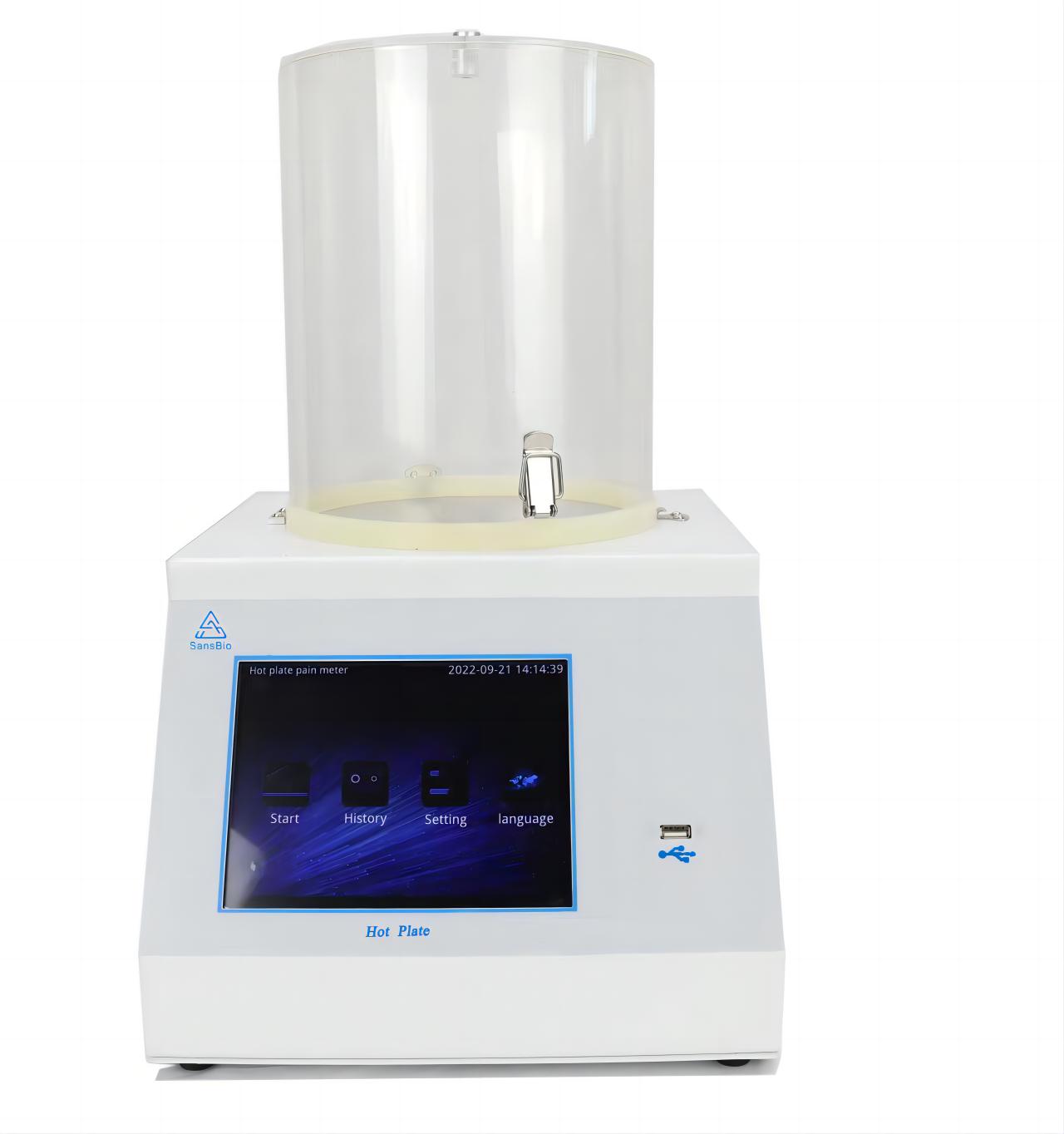

The hot plate test has been the gold standard test for thermal pain tests in rodents and acts as an effective screening tool interventions of analgesia. SANS Hot Plate adopt precise PID control algorithm, which is different from the temperature breakpoint method adopted by ordinary temperature controllers. The PID algorithm will continuously collect temperature feedback to control heating, thus being able to control the current temperature more accurately. The Hot Plate contains a metal temperature plate with a digital display and a lidded transparent glass cylindrical restrainer.

Features & Benefits

Real-Time Nocifensive Response Recording

Records the experimental temperature and first signs of paw licking or jumping
Suitable for rats, mice, and guinea pigs
Constant or variable temperature mode

Advantages

The hot plate test has been the gold standard test for thermal pain tests in rodents and acts as an effective screening tool interventions of analgesia. Science Hot Plate adopt precise PID control algorithm, which is different from the temperature breakpoint method adopted by ordinary temperature controllers. The PID algorithm will continuously collect temperature feedback to control heating, thus being able to control the current temperature more accurately. The Hot Plate contains a metal temperature plate with a digital display and a lidded transparent glass cylindrical restrainer.

Specifications

Temperature

Temperature Display Mode Capacitive eight-inch LCD display, resolution: 800×600
Temperature Range 20°C - 65°C, adjustment step 0.01°C
Temperature Control Standard Deviation < ± 0.2 °C
Heating Time 1 minute (from 20°C to 65°C when the ambient temperature is 20°C)

Time Display

Time Display 0.01 ~ 600.00 s, Precision: 0.01 seconds
Time Display Standard Deviation < 0.02 %

Experimental Data

Experimental Data Previous experimental curves and data can be viewed on the menu and each set of experimental data is displayed in real time: time, temperature, mean, maximum value, minimum value.
Data Storage 100 groups of data, each group can record 10 time data and instantaneous temperature data
Data Extraction USB drive, CSV format

Physical Info

Apparatus Size 25 cm × 33 cm × 38 cm (L × W × H)
Cylindrical Restrainer Dimensions D 21 cm × H 25 cm
Weight 6.5 kg

Power

Power Requirement 100 W, 110/220 V, 50-60 Hz

Order Information

Item No. Product Description
SA702 Hot Plate for Rat and Mouse
