Hot Cold Plate Test

Vendor: SANS

Type: Animal Research Equipment

Thermal sensitivity testing is a fundamental tool in pain and neuroscience research. BioMed Hot Cold Plate empowers labs to conduct standard hot plate tests,... ... Read More

Price Unit

Quantity

$4,468.45

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Total Price:

$4,468.45

Perfect Match With

1/2

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Feature

Advantages

Highlights

Applications

Specifications

Order Information

FAQ

Customer Review

overview

Thermal sensitivity testing is a fundamental tool in pain and neuroscience research. BioMed Hot Cold Plate empowers labs to conduct standard hot plate tests, thermal hyperalgesia assessments, and cold allodynia studies, acting as the gold standard test for thermal pain tests in rodents and acts as an effective screening tool intervention of analgesia.

Whether evaluating acute pain thresholds or long-term sensory behavior, the hot cold plate captures real-time behavioral response data, including paw withdrawal, licking, or jumping, with millisecond time precision. A high-resolution capacitive LCD screen, USB data export, and PC compatibility make it an efficient and flexible solution for both standalone and integrated application in thermal pain studies.

Features & Benefits

Capacitive 8-inch LCD Display

Resolution: 800×600
Big display for easy operation

Wide Temperature Range

-5° to -65°
Conduct various thermal sensitivity experiments, including severe cold allodynia

Accurate Temperature Control

32-bit microcomputer control chip ensures accurate temperature
Data extraction via USB in CSV format

Advantages

Hot Cold Plate, also call Analgesia Meter, is a precision-engineered device for evaluating thermal pain thresholds, thermal hyperalgesia, and cold/heat allodynia in rodents. Temperature range goes from -5°C to 65°C. The Hot Cold Plate adopts precise PID control algorithm, which is different from the temperature breakpoint method adopted by ordinary temperature controllers. The PID algorithm will continuously collect temperature feedback to control heating/cooling, thus being able to control the current temperature more accurately.

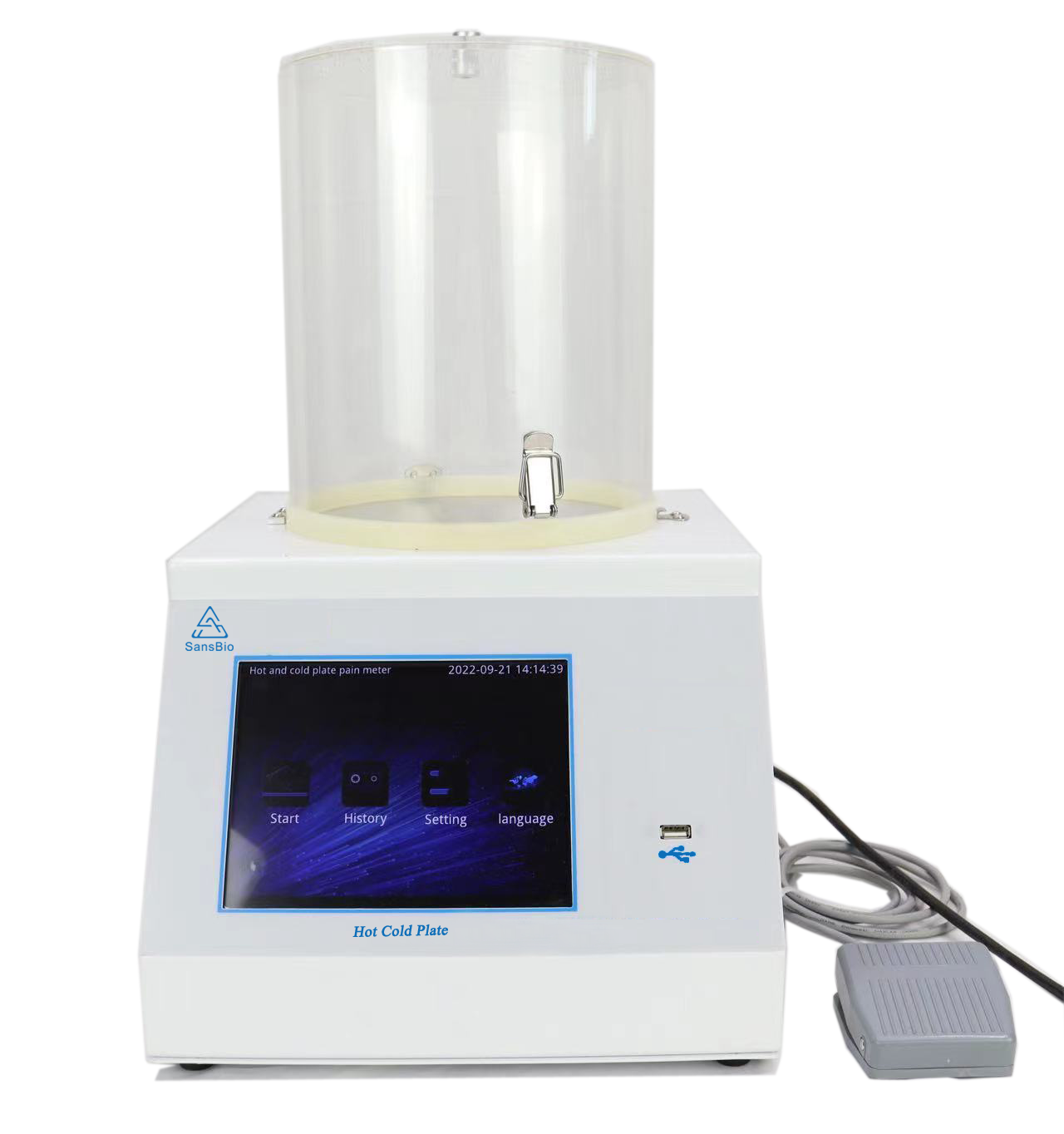

The Hot Cold Plate contains a metal temperature plate with a digital display and a lidded transparent glass cylindrical restrainer.

Highlights

Stable Thermal Stimulation

Delivers highly accurate and stable thermal stimuli, ensuring reproducible results in pain research.

Real-Time Monitoring

Simultaneously tracks temperature changes and animal responses to improve behavioral measurement precision.

Rapid Temperature Control

Fast heating and cooling shorten experimental cycles and improve overall testing efficiency.

Data Export & Analysis

Supports Excel-compatible data export for fast, convenient post-experiment analysis.

Compact Integrated Design

Built-in display and controller reduce system complexity and save valuable laboratory space.

Thermal Preference Testing

Enables thermal place preference experiments by creating controlled dual-zone temperature environments.

Applications

Neuropathic Pain

Inflammatory Pain

Hot Allodynia

Cold Allodynia

Hyperalgesia

Specifications

Specification

Application	Rat or Mouse
Commands	8-inch LCD display, resolution 800×600
Power	100-240 VAC, 50-60Hz, 620W
Sound Level	< 60 dB (A)

Operation

Plate Temperature Range	-5.0°C to +65°C (in 0.1°C steps)
Speed	Fixed, progressive
Start/Stop	By foot pedal switch
Detection	High-performance 32-bit microcomputer control chip
Time Display	0.01~600.00s
Time Display Standard Deviation	<0.02 ‰ Seconds

Data

Experimental Data	Time, temperature, mean, maximum value, minimum value
Data Export	By USB flash drive
Data Storage	100 data sets

Physical Info

Apparatus Size	350×300×485 mm (L × W × H)
Cylindrical Restrainer	210×250 mm (D × H)
Weight	12.5 kg

Order Information

Item No.	Product Description
SA705	Hot Cold Plate for Rat and Mouse

Frequently Asked Questions

What is the difference between this Hot/Cold Plate and a traditional hot plate?

Our Hot/Cold Plate allows both heating and cooling with precision (down to -5°C), whereas traditional hot plates only heat and lack dual-zone testing or precise PID control.
Can I use this for cold allodynia or thermal place preference experiments?

Absolutely. The wide temperature range and precision control make it ideal for cold allodynia and thermal preference studies in behavioral neuroscience.
How do I retrieve the test data?

All data can be easily extracted via USB in CSV format, ready for Excel or statistical analysis software.
Is PC software required in operating the hot/cold plate?

Our hot/cold plate operates independently via the built-in touch screen. We also provide software for labs that prefer remote control and analysis on a PC.
