Hargreaves Plantar Test

Vendor: SANS

Type: Animal Research Equipment

Hargreaves Plantar test is widely used to test the thermal stimuli responses in the study of analgesic drugs in pharmacological experiments. Experiments are ... ... Read More

Price Unit

Quantity

$6,265.35

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Total Price:

$6,265.35

Perfect Match With

1/2

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Feature

Advantages

Specifications

Order Information

FAQ

Customer Review

overview

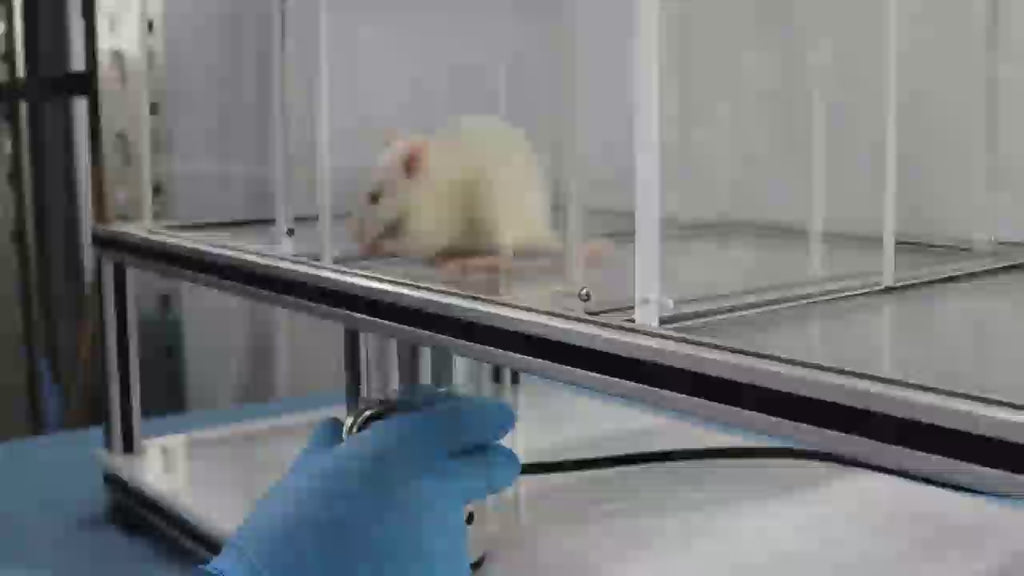

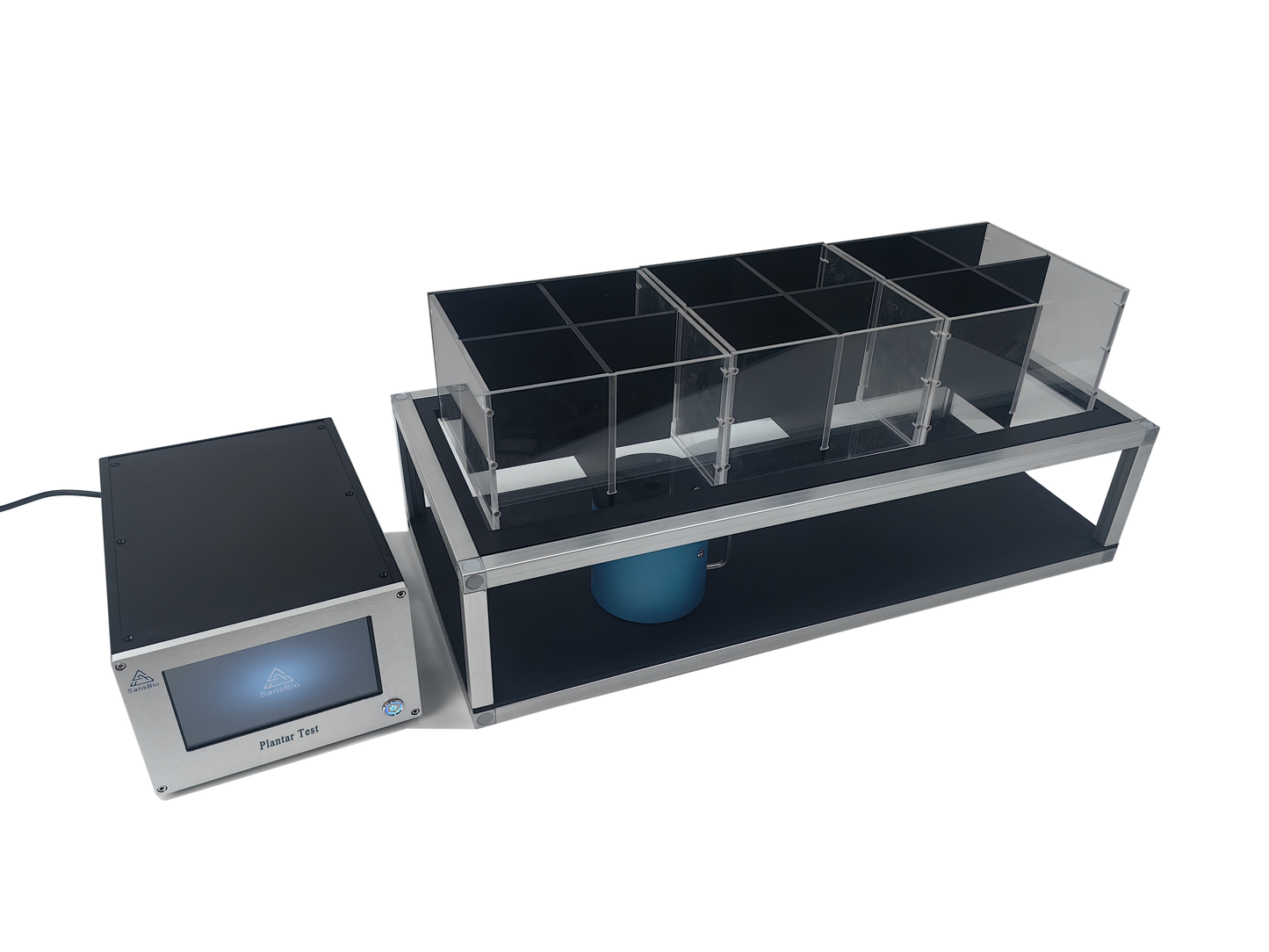

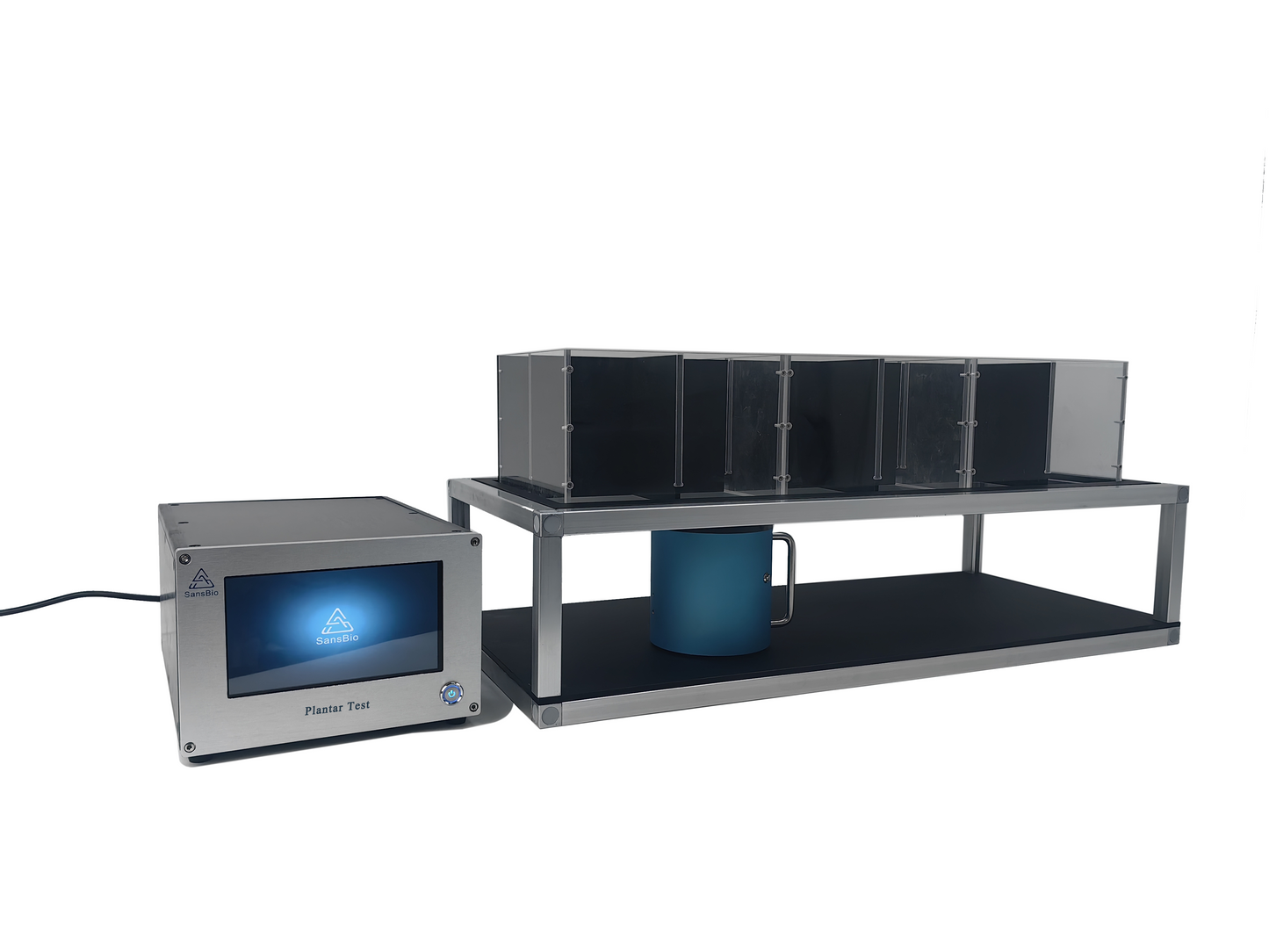

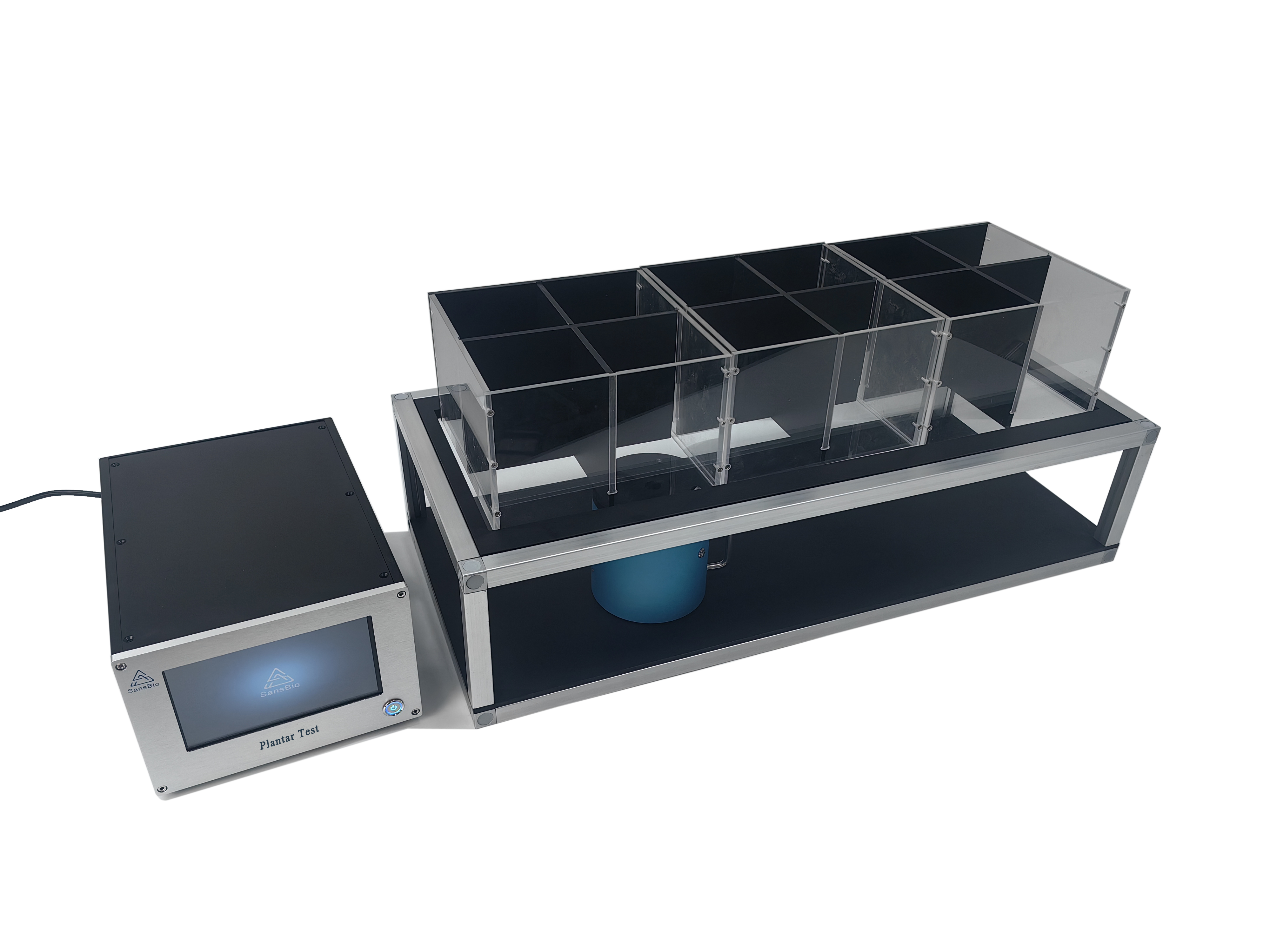

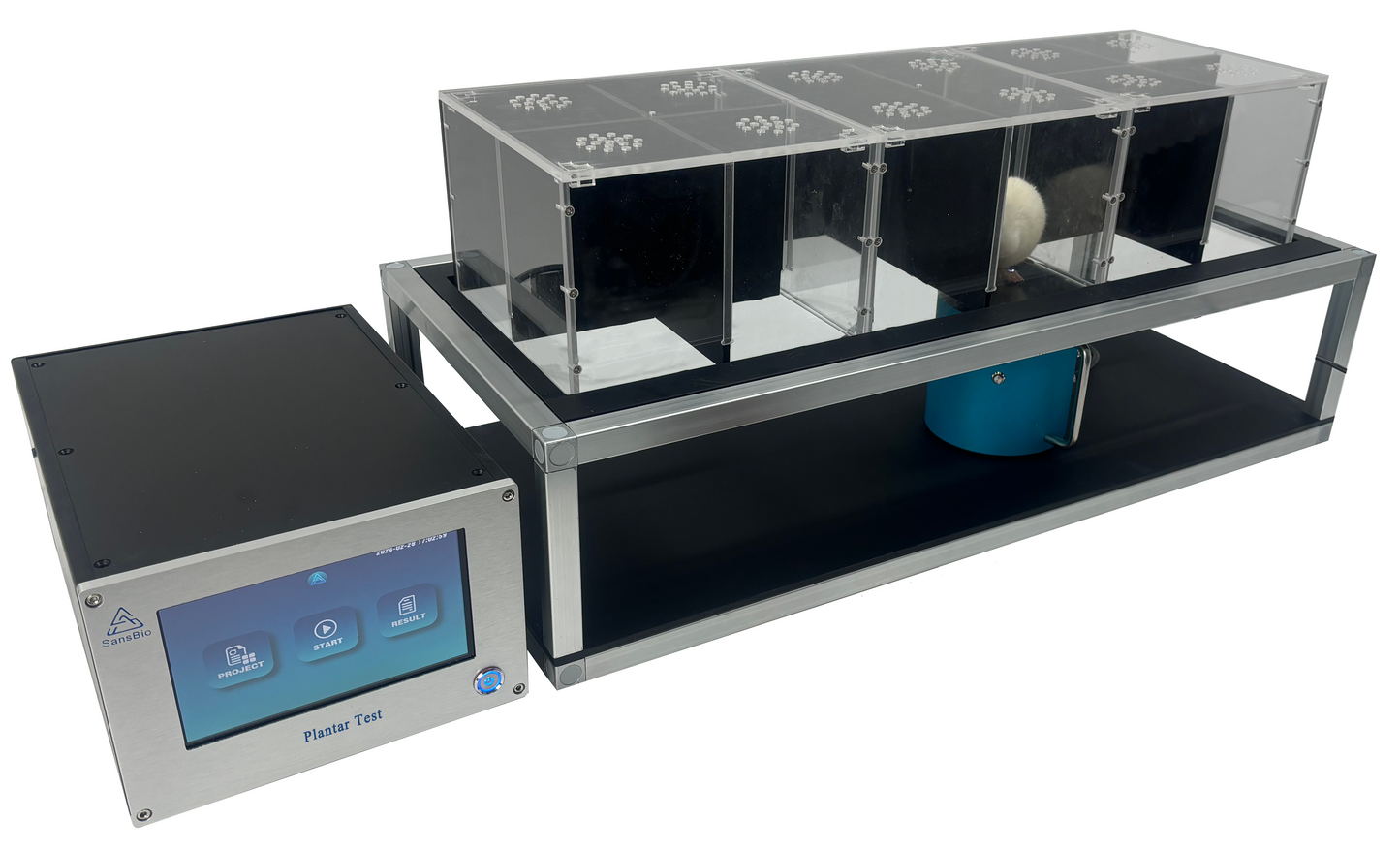

Hargreaves Plantar test is widely used to test the thermal stimuli responses in the study of analgesic drugs in pharmacological experiments. Experiments are easy to perform as a rodent’s hind paw is exposed to a beam of radiant heat through a transparent glass surface using plantar analgesia meter. The latency to withdraw to the heat stimulus is recorded as the time for paw withdrawal in both injured and uninjured hind paws. Our Plantar test adopts microcomputer control method to obtain the pain threshold time. The device contains an emitter/detector vessel, software controller, glass panel and animal enclosures. It can be used on 12 mice, 6 rats and other animals (cats, rabbits) unrestrained.

Features & Benefits

Infrared Heat Stimulus

Precise intensity control
High-contrast IPS capacitive touch screen for easy operation
0.01s high-precision timing improves reproducibility

Modular Enclosures for High Throughput

Supports 12 mice or 6 rats simultaneously
TTL I/O for third-party equipment synchronization

Flexible Light Intensity and Irradiation Time

5–100% light intensity adjustable
Time of irradiation can be flexibly set to protect animals

Advantages

The Plantar Test (Hargreaves Apparatus) is a widely used device for thermal nociception test and analgesia research. It measures paw withdrawal latency in freely moving rodents by applying a beam of infrared radiant heat through a transparent glass platform.

Our system features a 7″ capacitive touch screen with clear TFT display, intuitive UI, and real-time data display. The microcomputer control method ensures pain threshold measurement with 0.01s timing precision. Adjustable heat intensity from 0W–150W in 1.5W steps and 5–30s cut-off timing protect the animals while providing reproducible data.

The Hargreaves Plantar Test is a gold-standard thermal pain test apparatus designed for reliable measurement of paw withdrawal latency. With its infrared stimulus, microcomputer control, and touch screen interface, it is ideal for nociception research, drug screening, and thermal hyperalgesia studies. Its modular design, data export capability, and high precision make it an essential tool for behavioral neuroscience and pharmacology laboratories.

Specifications

Specification

Animal Capacity	Up to 12 mice and 6 rats simultaneous simulation
Display	7″ LCD touch screen to set parameters (light intensity, thresholds, etc.), real time data display
Stimulus	Infrared light
Power	0W-150W, adjustment 1.5W stepwise; AC 110-220 VAC, 50-60Hz, 150W
Heat Intensity Adjustment	5-100%
Max Illumination Time	Adjustable to the second (0.01-16s)
Measurement Mode	Manual
Cut-off Timing	5 to 30 seconds to protect the rodents
Timing Accuracy	0.01 s
Calibration	With I.R. Radiometer (optional)
TTL I/O	Support external 3.3V-5V high level signal trigger, Input/Output TTL signal
Sound Level	< 40 dB
Data Operation	Exportable data through USB disk into .CSV file; external thermal printer optional; platform with high temperature glass and transparent design

Physical Info

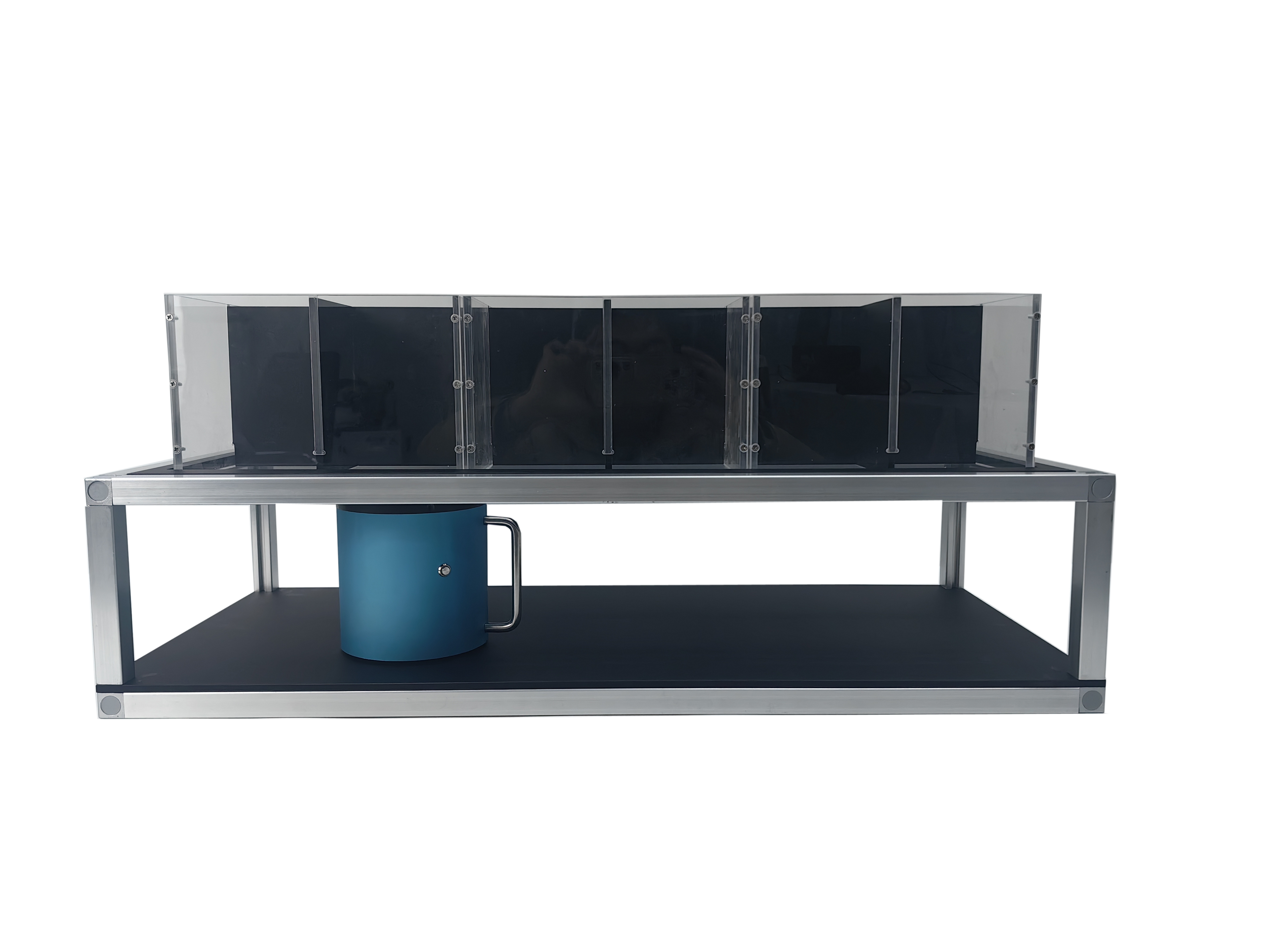

Working Platform	80 cm × 40 cm × 17 cm (L × W × H)
Acrylic Animal Enclosure	62 cm × 21 cm × 20 cm (for 6 Rats or 12 Mice)
Weight	3.5 kg

Order Information

Item No.	Product
SA709	Hargreaves Plantar Test
SA709-01	Plantar Test Controller Unit
SA709-02	Acrylic Animal Enclosure
SA709-03	Working Platform with Glass Pane
SA709-04	Emitter Vessel
SA709-05	Main Cable

Frequently Asked Questions

What is the Hargreaves Plantar Test used for?

The Hargreaves Plantar Test (also known as the Plantar Test for Thermal Hyperalgesia) is a widely used method for assessing pain sensitivity in rodents. Using an Infrared Plantar Test System, researchers measure paw withdrawal latency to evaluate thermal pain thresholds and investigate pain mechanisms in preclinical studies.
How does the Plantar Test Apparatus measure paw withdrawal latency?

Our Plantar Test Apparatus uses a controlled infrared light stimulation system with 0–150W intensity and 100-step adjustment. When the infrared beam is applied to the paw, the device records paw withdrawal latency with 0.01s timing precision, providing highly accurate and reproducible rodent paw withdrawal latency measurements.
What makes your Hargreaves Apparatus ideal for pain research?

This Hargreaves Apparatus for Pain Research is equipped with a high-quality TFT LCD display and 7-inch capacitive touch screen (1024×600 resolution, <3ms response time, 178° wide viewing angle). It supports modular chambers (up to 12 mice or 6 rats), precise thermal intensity control, and built-in data storage for up to 5000 experiments—perfect for thermal pain threshold testing in a high-throughput setting.
Can I export data from the Infrared Plantar Test System?

Yes. The Infrared Plantar Test System stores data locally in CSV format and supports USB export. Recorded parameters include animal information, duration, light intensity, max/min/average values, and start/stop time—making it easy to analyze results in any standard data-processing software.
How does the device ensure animal safety during thermal stimulation?

Our thermal pain threshold testing device features a protective timer (5–30 seconds) to prevent tissue damage, along with a high-quality heat filter lens that reduces visible light interference while maximizing thermal radiation. This design ensures both animal welfare and reliable experimental outcomes.
