Electronic Von Frey
Electronic Von Frey
Electronic Von Frey

Electronic Von Frey

Vendor: SANS
Type: Animal Research Equipment
Electronic Von Frey Anesthesiometer is a simple and accurate method designed for assessing pain threshold and mechanical allodynia in rodent models. This Ele... ... Read More
Name
Price Unit
Quantity
SA708
$3,451.00
SA708-001
$997.22
Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY
Total Price:
$3,451.00

Perfect Match With
1/2

Delivery timelines will be provided with your quote

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Share:
Overview
Feature
Advantages
Specifications
Order Information
FAQ
Customer Review

overview

Electronic Von Frey Anesthesiometer is a simple and accurate method designed for assessing pain threshold and mechanical allodynia in rodent models. This Electronic Von Frey device enables researchers to quantify responses to mechanical stimuli with superior accuracy and repeatability—key for studies in joint pain, neuropathic pain, and analgesic drug development, and used to determine the mechanism of central and peripheral nerve analgesia.

Ideal for preclinical pain research, the Von Frey integrates a digital force transducer, reusable filaments, and intuitive software to provide a streamlined, user-friendly experience. It is widely used across pharmacology, neuroscience, and inflammatory disease research.

Features & Benefits

Backlighted 4.7-inch LCD

Clear display with high contrast and easy operation

Embedded Force Sensor

One application on the force and accurate

Alone Operation Available

With 4.7 inch high-definition display
Real-time display of experimental curves
Convenient for use without a computer

Plantar Image Observation

Plantar image can be observed with a flat mirror
Direct observation allows easy capture of the target

Battery Integrated, Compact Design

Small footprint with display of test curves and results
Operable separately, with or without software

Standard Force Calibration

Calibration can be performed using standard weights
Ensures accuracy of the force stimulation

Automatic and Manual Recording

Applicable for higher intensity tests
Provides more accuracy with 0.1 RPM resolution

Grid Platform and Animal Enclosures (Optional)

Works with 6 rats and 12 mice simultaneously
Easy to clean

Advantages

Rodent Electronic Von Frey, also call as Plantar Analgesia Meter, it allows researchers to determine the mechanical pain sensitivity threshold in a simple and accurate method, through the sensitive filament stimulation. It is considered as a productive way to evaluate behavioral responses of neuropathic pain in preclinical and clinical research.

The Electronic Von Frey is battery integrated or power charge and comes with software included and data export in CSV. The Von Frey is adaptable for Mice or Rats in modular enclosures (up to 6 rats or 12 mice).

Specifications

Feature Details

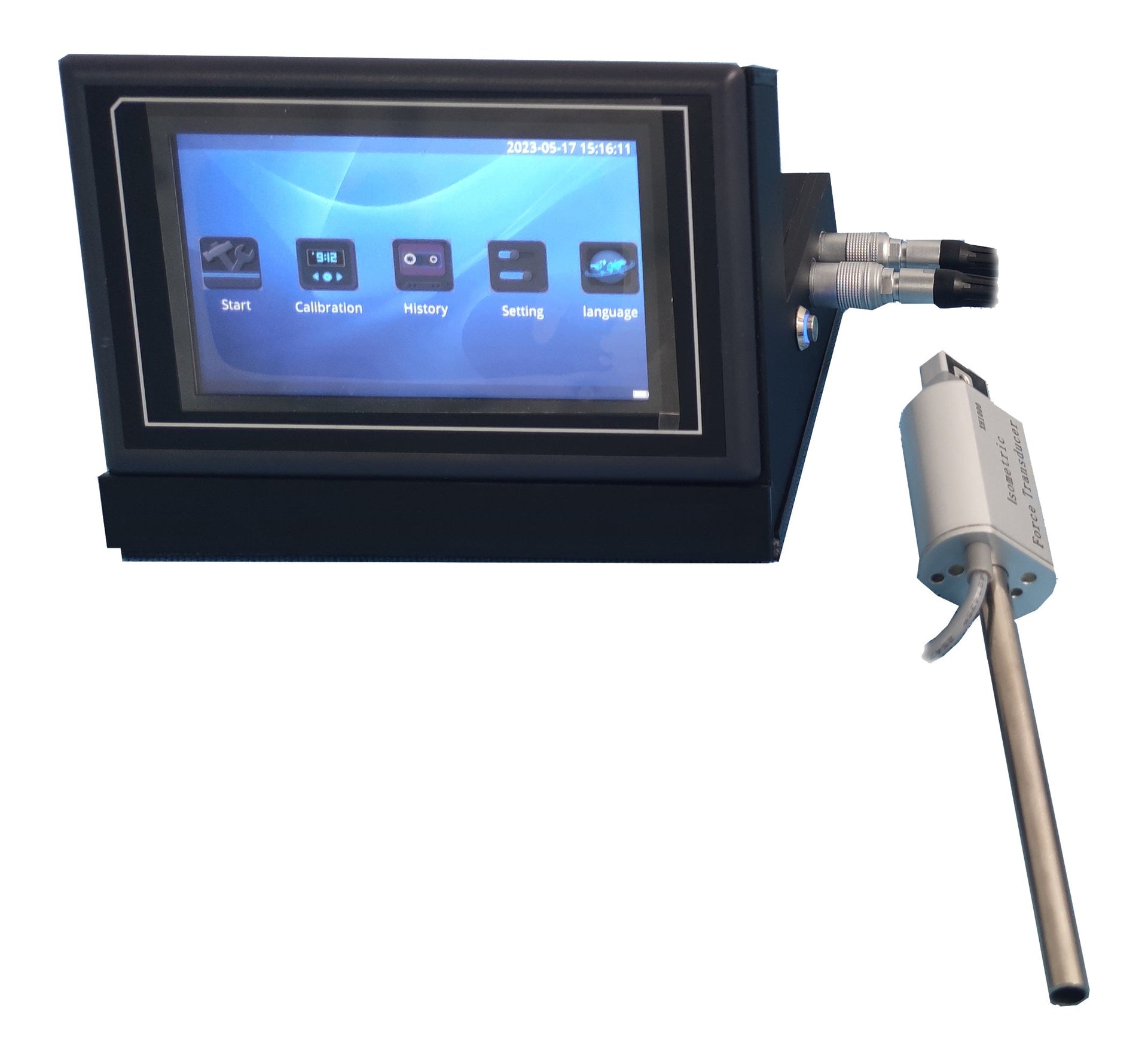

Display Backlighted 4.7-inch LCD, clear display with high contrast and easy operation. PEAK, Minimum value and CURRENT value displayed simultaneously. Real time curves and tables display.
Measurement Range: 0~300g, Resolution: 0.01g. Threshold force alarm available. Accuracy: ±0.02F.S. 24-bit AD sampling chip ensures high precision. Standard weight for calibration.

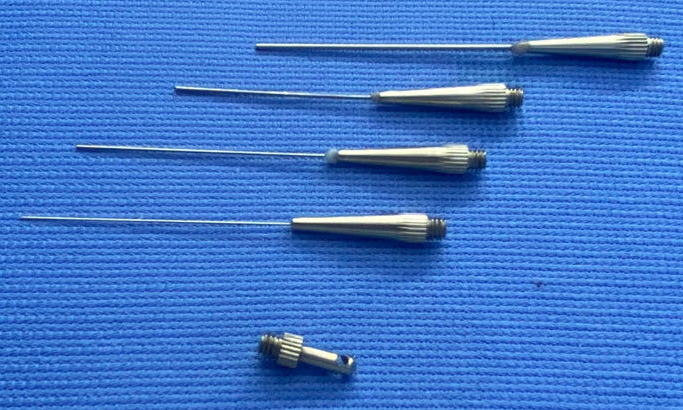

Filaments 4 kinds of reusable stainless-steel filaments: 0.4mm, 0.6mm, 0.8mm, 1.0mm. Different filaments for different experiments and animals.
Mode Automatic & Manual available. Automatic: experiment starts automatically under pressure, data recorded. Manual: foot pedal operation.
Memory Internal memory up to 200 values.
Power Battery standby >40 hours, continuous working >6 hours, charging <3 hours. Power supply: 110V-230V.

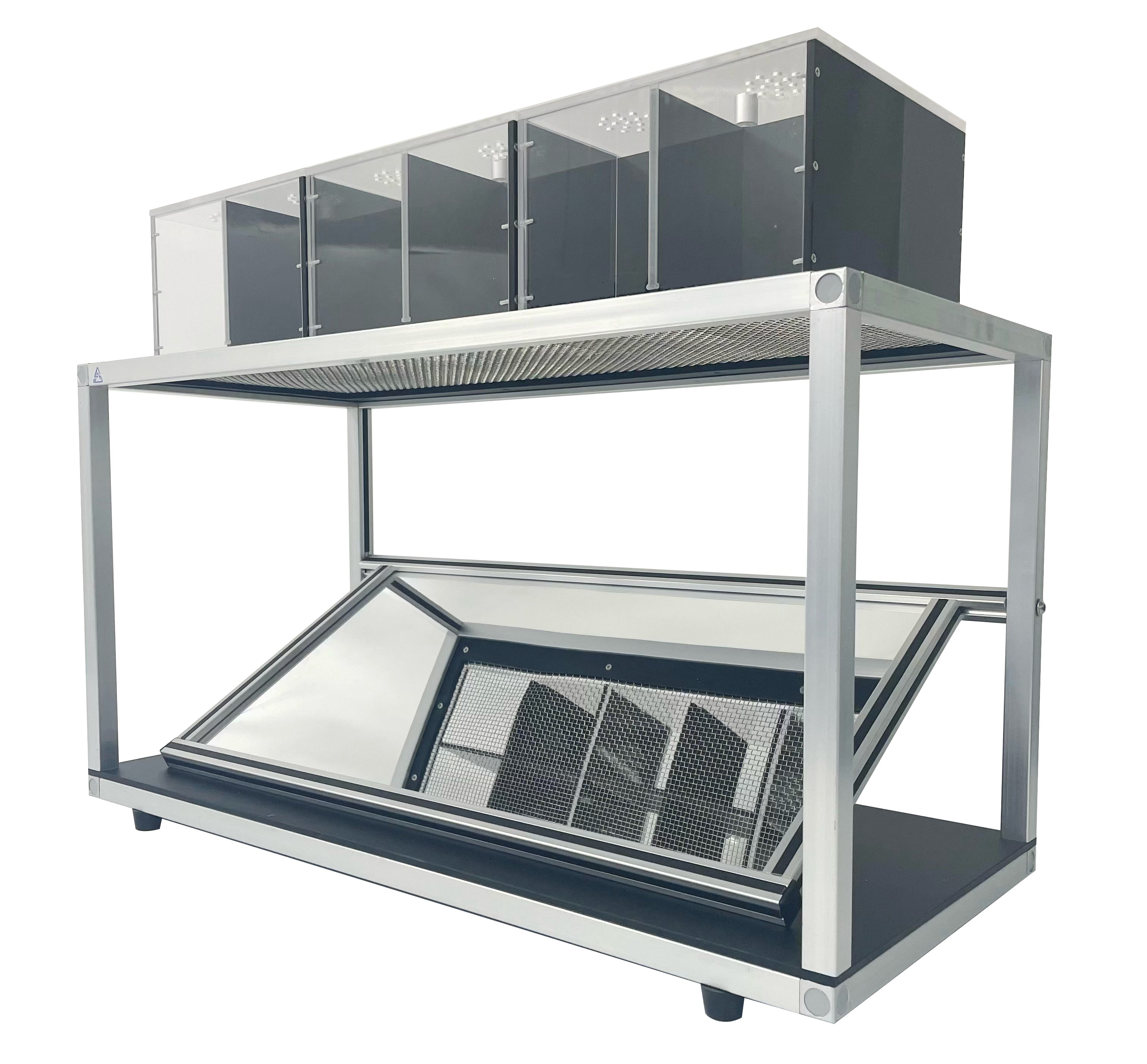

Von Frey Mesh Frame Chamber (optional)

Feature Details
Mesh Frame Size 74 x 33 x 38 cm (L x W x H)
Chamber Material Acrylic clear
Chamber Interior Size 22 x 22 x 14 cm (L x W x H)
Capacity Each chamber comes with two dividers. Holds 6 rats or 12 mice.
Lid Lid with air holes, easy to open and close.
Base No base included.
Optional Mesh frame chamber is optional.

Order Information

Item No. Product Description
SA708 Rodent Electronic Von Frey
SA708-001 VF mesh frame chamber

Frequently Asked Questions

  • What models is this device compatible with?

    It is optimized for use in mice and rats. The test chamber accommodates up to 12 mice or 6 rats, with interchangeable filaments for different body sizes.

  • What type of pain is this used for?

    Primarily mechanical allodynia and pain threshold assessment in models of joint pain, neuropathy, inflammation, and more.

  • Can I control the test digitally?

    Yes, the Electronic Von Frey includes a software control unit for real-time force tracking, curve plotting, and data export.

  • What makes this better than traditional Von Frey filaments?

    Unlike manual Von Frey methods, this Electronic Von Frey system delivers precise force quantification, reduces operator bias, and improves reproducibility.

  • Is calibration required?

    A calibration weight is included, and calibration is quick and straightforward using the included software.
