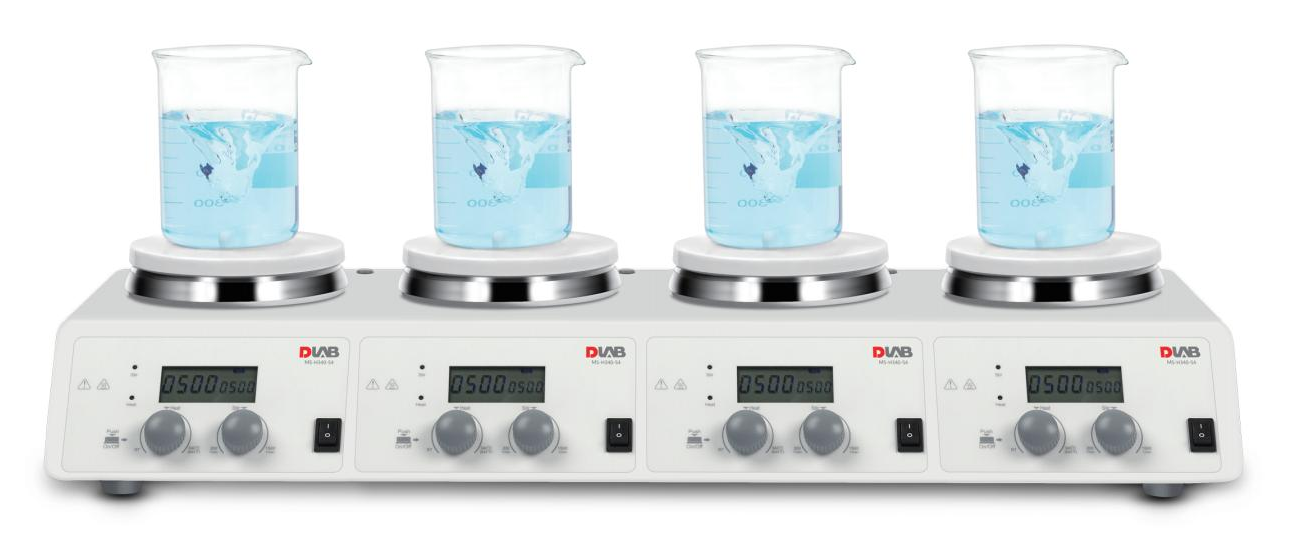

DLAB LCD 4-Channel Digital Magnetic Hotplate Stirrer MS-H340-S4

DLAB LCD 4-Channel Digital Magnetic Hotplate Stirrer MS-H340-S4

Vendor: DLAB Scientific Inc.
Type: Mixing & Heating
The DLAB MS-H340-S4 is a 4-channel digital magnetic hotplate stirrer designed for laboratories running multiple reactions in parallel. Each of the four posit... ... Read More
Price Unit
Quantity
$1,879.00
Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY
Total Price:
$1,879.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Perfect Match With
1/2

Shipping & lead times

Shipping & lead times

In stock items usually ship within 2 business days
Custom / backordered items lead time vary. Contact us for a quote along with your exact delivery window.

90-day return policy

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Share:
Overview
Feature
Highlights
Applications
Specifications
Resources
FAQ
Customer Review

overview

Parallel experimentation is where most synthesis labs lose time. The MS-H340-S4 replaces four separate stirrers with one instrument, giving each position its own LCD readout of real-time temperature and speed. Chemists screening reaction conditions, developing drug candidates, or optimising scale-up routes can run four variables at once and read every channel at a glance. Ceramic-coated plates resist aggressive reagents, and the sealed brushless motor eliminates brush wear, making the unit suitable for the continuous duty cycles typical of R&D and QC laboratories.

Features & Benefits

4 Independent Channels

Each of the four positions has its own heating and stirring control, allowing four different reaction conditions to run simultaneously on one instrument.

Real-Time LCD Readout

The LCD display shows the actual temperature and stirring speed as they are running, so deviations are visible immediately without an external monitor.

PID Temperature Control

A PID controller delivers a precise and stable heating profile across the full range up to 340 °C, minimising overshoot on sensitive reactions.

Brushless DC Motor

The brushless drive runs quietly and requires no brush replacement, providing more powerful and consistent speed control over long unattended runs.

External PT1000 Probe

An external temperature sensor measures the medium directly to an accuracy of 0.2 °C, rather than inferring it from the plate surface.

Overheating Protection

An independent safety cut-out triggers at 420 °C to protect samples, the instrument, and the operator from thermal runaway.

Ceramic-Coated Work Plate

The stainless steel plate carries a ceramic coating that provides good chemical resistance against spilled solvents and corrosive reagents.

Extensive Accessory Range

A wide variety of accessories is available to adapt the stirrer to different vessel types and workflow requirements.

Highlights

4 Channels

Four fully independent heating and stirring positions in a single benchtop unit.

Up to 340 °C

PID-controlled heating across the full range for precise, stable temperature profiles.

0.2 °C Accuracy

External PT1000 probe measures medium temperature directly for reliable control.

420 °C Cut-Out

Independent overheating protection safeguards samples and operators.

Applications

Synthesis of Organic Intermediates

Fine Chemical Synthesis

Rapid Screening of Reaction Conditions

Organic Methodology Studies

Drug Development and Screening

Parallel Reaction Screening

Scale-Up Process Optimization

Recrystallization and Purification

Specifications

Specifications MS-H340-S4
Cat. No. 8030278110
Work plate dimension Ø135mm (5inch) ×4
Plate material Stainless steel with ceramic coating
Motor type Brushless DC motor
Stirring positions 4
Max. stirring quantity of single position (H2O) 10L × 4
Max. magnetic bar 40mm
Speed range 200–1500rpm
Speed display LCD
Temperature display LCD
Control accuracy of sensor ±20rpm
Temperature range 25–340°C
Over temperature protection 420°C
Temperature display accuracy ±0.1°C
External temperature sensor PT1000 (accuracy ±0.2°C)
IP Protection class IP20
Motor input power 1.8W×4
Power 515W×4
Heating Power 500W×4
Voltage, Frequency 100–120V, 60Hz; 200–240V, 50Hz
Dimensions [W×D×H] 698×270×128mm
Weight 9.5kg
Permissible ambient temperature 5–40°C
Permissible relative humidity 80%RH

Resources

Welcome to the User Manual! This manual is your go-to resource for understanding and utilizing our product efficiently. It offers comprehensive instructions, troubleshooting tips, and FAQs to help you navigate through its features seamlessly.

DLAB MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer

Frequently Asked Questions

  • Can each of the four positions be set to a different temperature and speed?

    Yes. Heating and stirring are controlled independently at every position, so four sets of conditions can run at the same time on one instrument.

  • How accurate is the temperature control?

    The unit uses PID control for a stable heating process, and the external PT1000 sensor measures the medium temperature to an accuracy of 0.2 °C.

  • What happens if the plate overheats?

    An overheating protection function cuts in at 420 °C, above the 340 °C maximum working temperature, to protect the sample and the instrument.

  • Is the work plate resistant to chemical spills?

    The stainless steel plate is ceramic-coated, which gives it good chemical resistance to solvents and reagents encountered in organic synthesis.

  • Does the motor need servicing?

    No. The brushless DC motor is maintenance-free, quiet, and designed for reliable long-term operation.
