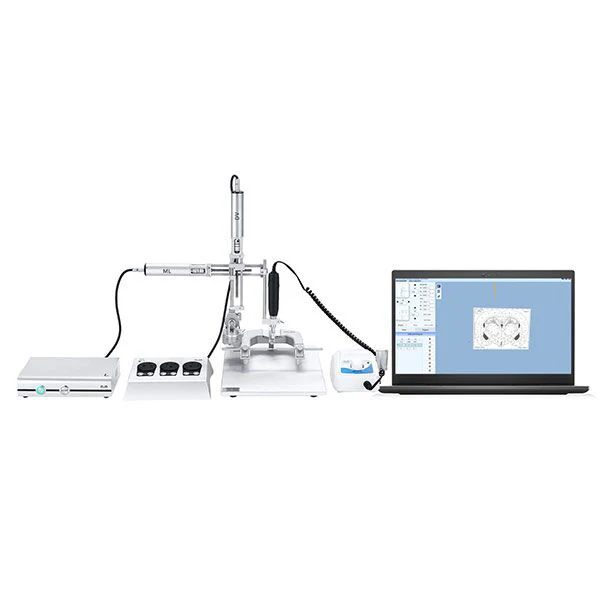

Verifying Performance Specifications in Coordinate-Based Surgical Systems
Verifying the operational limits of precision apparatus requires a detailed analysis of their engineering specifications. When evaluating a digital stereotaxic instrument, the acceptable tolerance ranges define the boundary between successful targeting and experimental variability. We at BPLabLine establish these parameters for our automated stereotaxic instrument lineup to provide researchers with a clear expectation of mechanical and digital performance.
Linear Axis Precision and Encoder Verification
The foundational accuracy of a digital stereotaxic instrument is measured along its three primary linear axes. For a system to be considered precise, the positional error—the discrepancy between the digital coordinate input and the actual tool tip location—should not exceed ±0.05 millimeters. This specification is validated using laser interferometers or high-precision calibration blocks. The automated stereotaxic instrument relies on optical or magnetic encoders to achieve this, with encoder resolution typically specified between 1 and 10 micrometers. This fine resolution ensures that the digital stereotaxic instrument can execute minute movements, even if the absolute accuracy is a larger value.
Angular Alignment and Rotational Component Tolerance
Beyond linear movement, the alignment of the instrument's components introduces angular tolerances. The frame of a digital stereotaxic instrument must maintain perpendicularity between axes within a narrow margin, typically 0.1 degrees. Deviations beyond this can cause a progressive targeting error that increases with distance from the origin point. The locking mechanisms on an automated stereotaxic instrument must also be evaluated for minimal "play" or deflection when secured, with acceptable movement under load being less than 5 micrometers. This ensures that once a target is set, the instrument remains stable throughout the procedure.
Thermal Stability and Long-Term Drift Metrics
A frequently overlooked specification is the thermal coefficient of the materials used in the digital stereotaxic instrument. Aluminum and steel components expand and contract with temperature fluctuations. A high-quality system will have a thermal drift of less than 15 micrometers per degree Celsius. This means that an automated stereotaxic instrument calibrated at 20°C will still perform within its stated tolerances if the laboratory temperature shifts to 22°C. Long-term drift, the gradual change in accuracy over months of use, should be accounted for in the design, with manufacturers specifying recommended recalibration intervals to maintain performance.
The acceptable tolerance ranges for a digital stereotaxic instrument are not merely theoretical numbers; they are practical requirements for reproducible neuroscience. Targeting specific brain nuclei, which may be less than 500 micrometers in diameter, demands this level of consistency. By designing our automated stereotaxic instrument systems to operate within these defined mechanical and thermal tolerances, we provide a platform that reduces experimental variables and supports the collection of reliable scientific data.
