Is the treadmill limited to applicable for 5 mice and 5 rats?

By default, the treadmill has 5 lanes for mice or rats. Customization of lanes is available according to researchers’ demand.

If we would like to do for both Rats and Mice, do we need to purchase 2 individual treadmill?

The treadmill can be used for both mice and rats. You don’t need to purchase 2 individual units; you only need two sets of covers and shock grids, one for mice and the other for rats. This design helps save cost.

Is the treadmill controlled by a touch screen that comes with the device? Or via a software on a PC?

The treadmill is controlled via a touch screen that comes with the device, and it can also be controlled via the software on a PC.

Can we program a specific session of treadmill in advance?

Yes, 8 protocol settings are included in the software, and sectional acceleration can be set. The last program is saved as the default screen display.

Do we need to set these 2 exhaustion modes together or either one will do? If these 2 modes ON together, for example, Warn is 3 and Shock is 30 sec, when the shock time reached to 30 sec, will the experiment stop before the warn reaches 3 times?

You do not need to set the 2-exhaustion modes at the same time. Usually, researchers do not do this. If both modes are turned on together, for example, Warn: 3 and Shock: 30 sec, when the shock time reaches 30 sec while Warn has not reached 3 times, the experiment will stop at the shock time before the Warn reaches 3.

When the electric stimulation stops, will there be any electric current on for all channels? And when will the electric shock resume after stopping?

It depends on two conditions: 1. Exhaustion mode: When the channel reaches the exhaustion mode, electric stimulation stops. 2. General mode: When the channel reaches the set experiment duration, electric stimulation stops. The electric shock will not resume until you start another new trial.

SANS Treadmill for Rat & Mouse SA101

Vendor: SANS

Type: Behavioral & Phenotyping Systems

Motorized rodent treadmill with 7" touchscreen, shock grid motivator, and acrylic/aluminum chamber. Supports fitness, endurance, motor injury, metabolic, and... ... Read More

Name

Price Unit

Quantity

5 Mice

$7,800.00

5 Rats

$7,800.00

5 Mice and 5 Rats

$9,800.00

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Listing Price :

$7,800.00

Academic pricing and trade in options may be available. Request a quote to receive the best price for your lab.

Perfect Match With

1/2

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Advantages

Specifications

Order Information

Literature

FAQ

Customer Review

overview

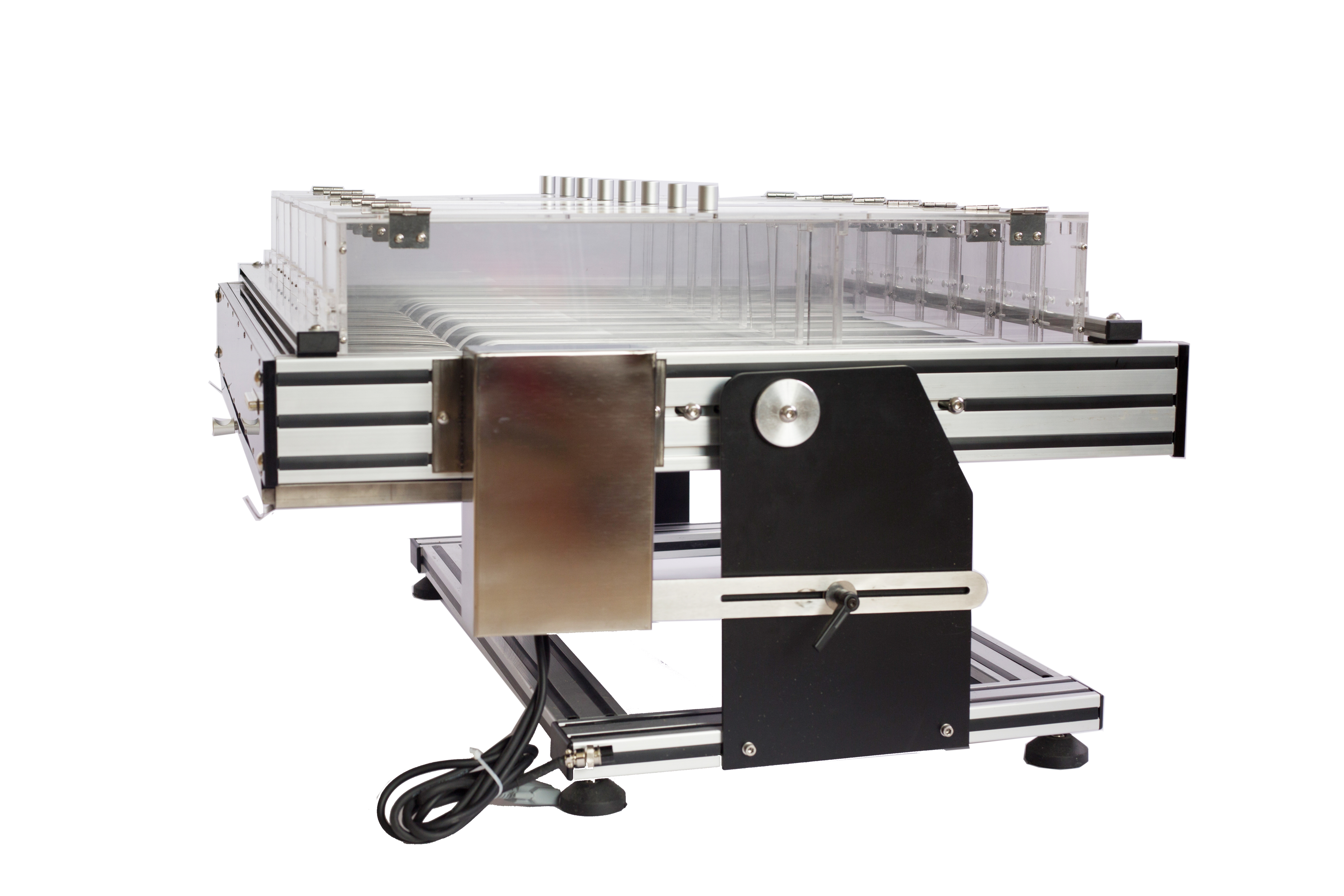

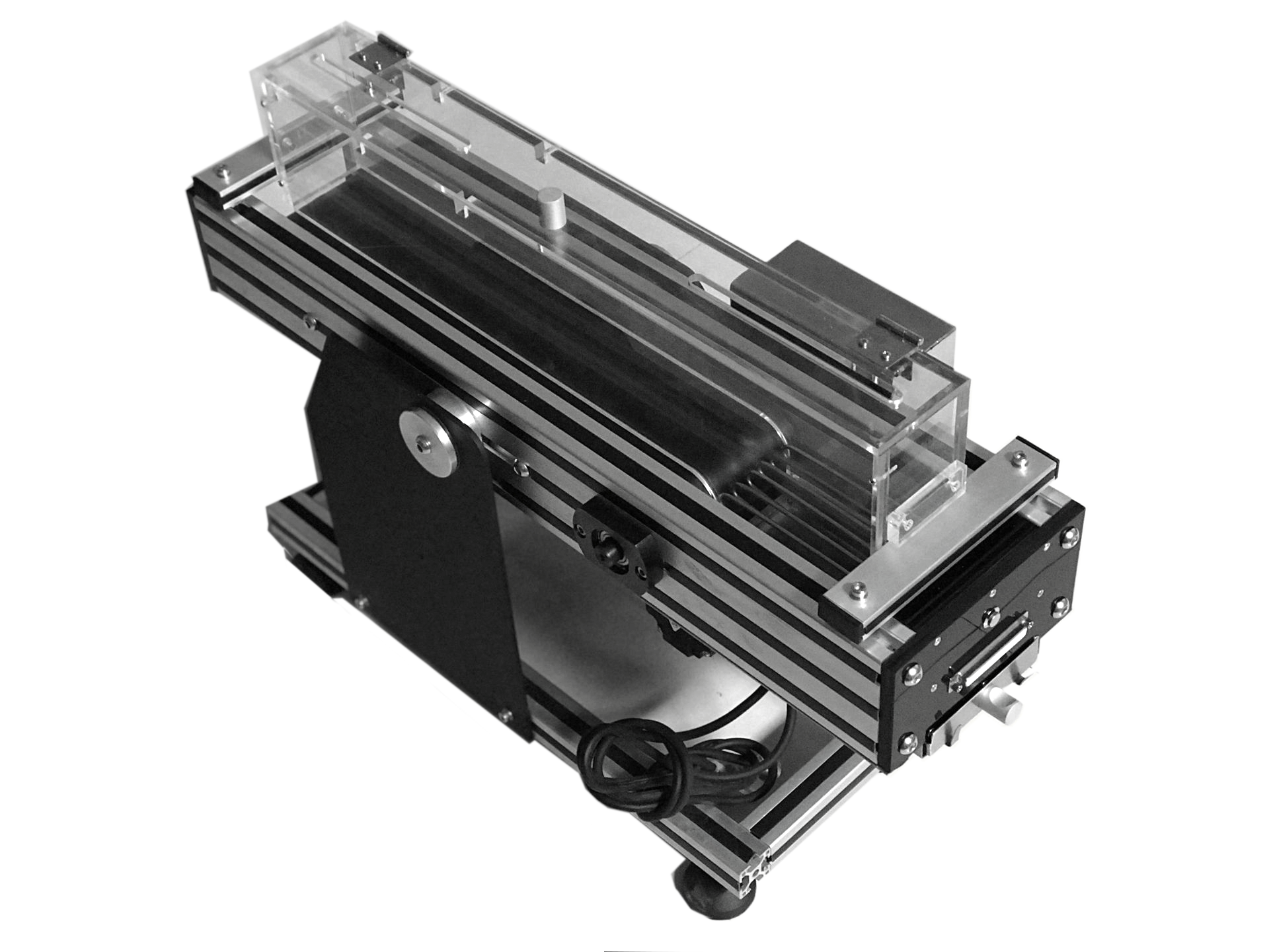

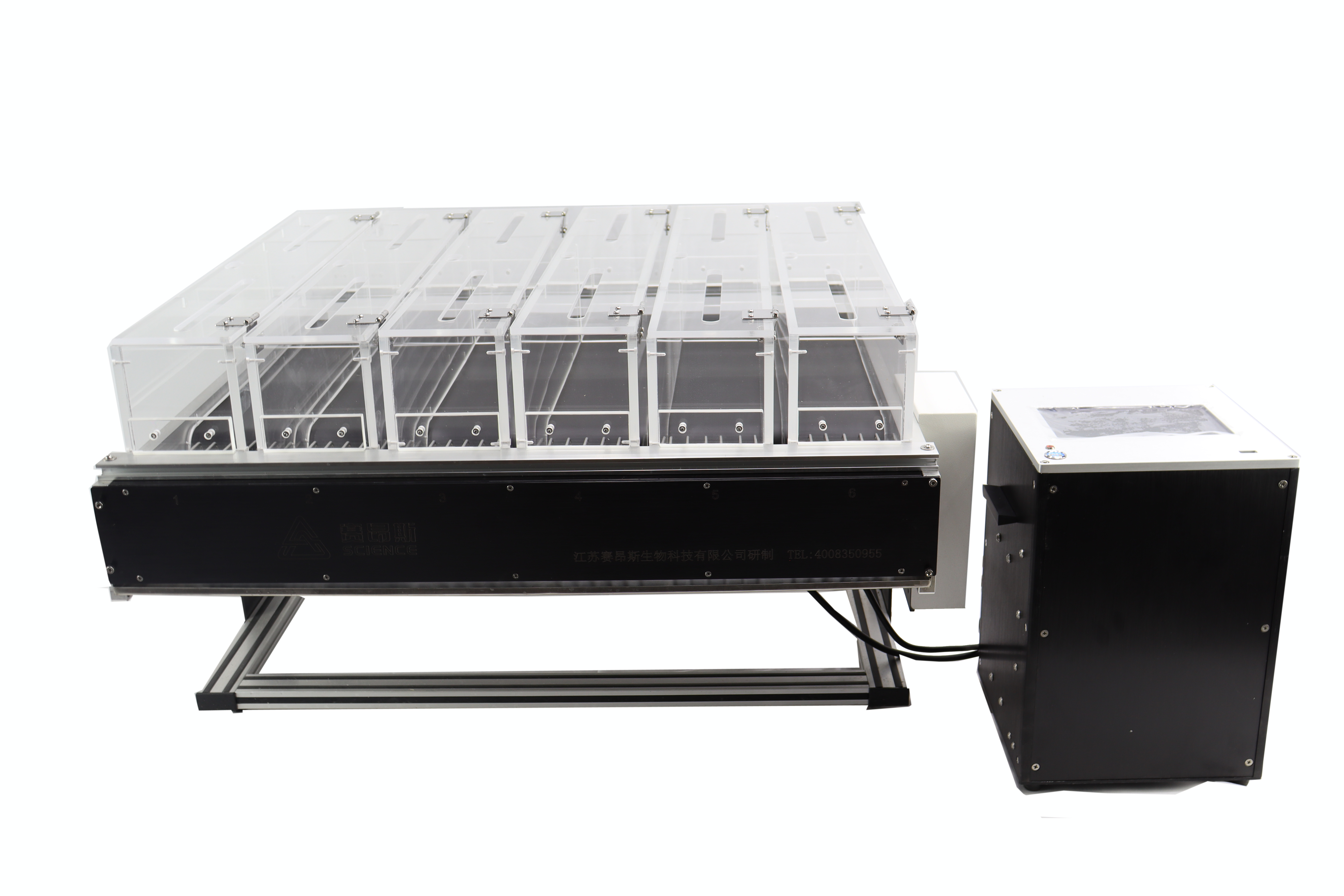

SA101 Rodent Treadmill is widely used in the research of physical fitness, endurance, motor injury, motor nutraceuticals, motor physiology, pharmacology, metabolic and cardiovascular research etc. It consists of the main unit, incorporating the drive, the shocker, the control unit with 7 Inch touch screen, the running belt enclosed within a chamber constructed of acrylic and aluminum. The chamber contains a shock grid, which serves as an aversive stimulus to motivate exercise. Two sizes are available in our company, smaller size for mice and a larger size for rats.

Advantages

Our rodent treadmills designed with Individual lane and programming, which is helpful for easy cleaning and accurate detection.
A variety of motion modes can be achieved, uniform speed, uniform acceleration, uniform deceleration, acceleration and deceleration mixed mode, etc.
Speed ranges from 0-100 meter /minute, resolution 0.01m/min.
Adopts IR sensor for effective pulse electric shock, which ensure avoiding blind area in detection.
Two kinds of exhaustion mode are available in our rodent treadmill,time and frequency.

Specifications

Basic Specification

Application	5 Rats/5 Mice
Commands	7″ capacitive IPS LCD touch screen
Power	100–240 VAC, 50–60Hz
Sound Level	< 60 dB (A)

Operation

Mode	Uniform speed, uniform acceleration, uniform deceleration, acceleration and deceleration mixed mode
Speed	0.1–100 m/min adjustable, resolution 0.01 m/min
Acceleration	0.1–100 m/min²
Start/Stop	From the touch screen
Detection	When touch the electric shock grid
Stimulation	Pulse electric, sound, light
Shock	0.1mA–10mA adjustable, pulse electric shock
Sound	1000–10KHz frequency adjustable
Light	1–5000Hz frequency adjustable
Lane slope	-25° ~ 25°
5 kinds of exhaustion mode	Distance, Time & Shock
Results	Distance, running time, number of shocks, shock time, current, exhaustion state, speed
Data export	By USB flash drive in csv or excel
Data save	>1000

Physical Size

	Mouse Treadmill	Rat Treadmill
Lanes	5 lanes	5 lanes
Overall Size	69.5×69.5×42.5 cm (27.3×27.3×16.7 inch)	69.5×69.5×44 cm (27.3×27.3×17.3 inch)
Running Belt Size	69.5×69.5×34.5 cm (31.3×27.3×13.5 inch)	69.5×69.5×34.5 cm (31.3×27.3×13.5 inch)
Lane Size (L×W×H)	61×8.5×15 cm	61×11.5×16.5 cm
Independent Lane Control	Yes	Yes
Shock Grid Size	12×6 cm	12×12 cm
Speed: 1–100 meter/minute
Lane slope degree: -25° ~ 25°
Acceleration: Adjustable acceleration in 0.1 meter/minute increments
Adjustable current stimulus: 0.01 – 10 mA
Treadmill controller: 32×34×12 cm (length × width × height), weight: 7.5 kg
Structure: Clear, removable acrylic maze walls and an aluminum frame

Note: Smaller size for Mouse Treadmill is available, 52×65×44 cm.

Order Information

Item No.	Product Description
SA101BM	Treadmill for 5 Mice (Sound, Light, Electric Stimulation, Adjustable acceleration, different time section, separate lane, adjustable lane length)
SA101BR	Treadmill for 5 Rats (Sound, Light, Electric Stimulation, Adjustable acceleration, different time section, separate lane, adjustable lane length)
SA101B	Treadmill for 5 Rats and 5 Mice (Sound, Light, Electric Stimulation, Adjustable acceleration, different time section, separate lane, adjustable lane length)

Certificate

For Research Use Only (RUO). Not for use in diagnostic procedures or patient testing.

literature

Daytime-restricted feeding enhances running endurance without prior exercise in mice

Read All

Cross-species metabolomic analysis identifies uridine as a potent regeneration promoting factor

Read All

Stabilization of heterochromatin by CLOCK promotes stem cell rejuvenation and cartilage regeneration

Read All

Aerobic exercise promotes the expression of ATGL and attenuates inflammation to improve hepatic steatosis via lncRNA SRA

Read All

Moderate intensity exercise may protect cardiac function by influencing spleen microbiome composition

Read All

MicroRNA-224-5p nanoparticles balance homeostasis via inhibiting cartilage degeneration and synovial inflammation for synergistic alleviation of osteoarthritis

Read All

Elimination of senescent cells byβ-galactosidase-targetedprodrug attenuates inflammation and restores physicalfunction in aged mice

MOTS-c and Exercise Restore Cardiac Function by Activating of NRG1-ErbB Signaling in Diabetic Rats

LRRK2 Deficiency Aggravates Sleep Deprivation-InducedCognitive Loss by Perturbing Synaptic Pruning in Mice

HMGB1- Promoted Neutrophil Extracellular Traps Contribute to Cardiac Diastolic Dysfunction in Mice

Piezo1-mediated M2 macrophage mechanotransduction enhances bone formation through secretion and activation of transforming growth factor-β1

Cadmium exposure impairs skeletal muscle function by altering lipid signature and inducing inflammation in C57BL/6J mice

Frequently Asked Questions

Is the treadmill limited to applicable for 5 mice and 5 rats?

By default, the treadmill has 5 lanes for mice or rats. Customization of lanes is available according to researchers’ demand.
If we would like to do for both Rats and Mice, do we need to purchase 2 individual treadmill?

The treadmill can be used for both mice and rats. You don’t need to purchase 2 individual units; you only need two sets of covers and shock grids, one for mice and the other for rats. This design helps save cost.
Is the treadmill controlled by a touch screen that comes with the device? Or via a software on a PC?

The treadmill is controlled via a touch screen that comes with the device, and it can also be controlled via the software on a PC.
Can we program a specific session of treadmill in advance?

Yes, 8 protocol settings are included in the software, and sectional acceleration can be set. The last program is saved as the default screen display.
Do we need to set these 2 exhaustion modes together or either one will do? If these 2 modes ON together, for example, Warn is 3 and Shock is 30 sec, when the shock time reached to 30 sec, will the experiment stop before the warn reaches 3 times?

You do not need to set the 2-exhaustion modes at the same time. Usually, researchers do not do this. If both modes are turned on together, for example, Warn: 3 and Shock: 30 sec, when the shock time reaches 30 sec while Warn has not reached 3 times, the experiment will stop at the shock time before the Warn reaches 3.
When the electric stimulation stops, will there be any electric current on for all channels? And when will the electric shock resume after stopping?

It depends on two conditions: 1. Exhaustion mode: When the channel reaches the exhaustion mode, electric stimulation stops. 2. General mode: When the channel reaches the set experiment duration, electric stimulation stops. The electric shock will not resume until you start another new trial.
