SANS Shuttle Avoidance Test

Vendor: SANS

Type: Behavioral & Phenotyping Systems

Shuttle avoidance test apparatus for active and passive avoidance learning research in rodents. Assesses fear-based conditioned responses using sound, light,... ... Read More

Name

Price Unit

Quantity

SA222M for Mouse

$5,115.81

SA222R for Rat

$5,115.81

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Total Price:

$5,115.81

Perfect Match With

1/2

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Feature

Advantages

Specifications

Order Information

Customer Review

overview

Shuttle Avoidance Test, also call Active Avoidance/Passive Avoidance Test, is common used in neuroscience to assess different forms of fear-based conditioned avoidance learning in rodents.

Active Avoidance Test (also called shuttle box test or automatic reflex conditioner), i.e. learning to predict the occurrence of an aversive event, based on the presentation of a specific stimulus, like sound, light and electricity.

Passive Avoidance Test requires performing a specific behavior in order to escape or avoid the aversive stimulus, represented by mild foot shock.

Features & Benefits

Applicable Tests

Applicable for Rats and Mice in Shuttle and Passive Avoidance Test

Stimuli

Sound, Light, Shock at any combination

Automated Detection

High-density infrared scanning technology ensures accurate signal detection, solves slow response, blind areas, and anti-interference issues

Independent Signal Control

Each box detects signals independently for precise experimental measurement

Separate Controller

Operates the software without PC requirement

Software Compatibility

Suitable for Shuttle and Passive Avoidance tests

Data Export

Experimental data automatically saves 3000 sets and can be exported in CSV format

Real-Time Display

Processing timing diagram displayed in real-time

Controller Screen

1024×600 IPS capacitive touch screen

Advantages

SANS Shuttle Avoidance Box is a flexible system for both active and passive avoidance experiments. It comes with two independent grid floors that allow for flexible adverse stimuli. A top-loading door allows easy access inside the box. The chamber contains a sound generator and a visual stimulus (light) that functions separately for each compartment. Software can be directly operated in the controller.

Shuttle Avoidance Test

When an aversive stimulus is applied, the subject learns to avoid the aversive stimulus by moving to the other side of the two-compartment chamber after the presentation of the stimulus.

Passive Avoidance Test

After the motivation or training, the subject is forced to move to the preferred side of the two-compartment chamber. Then it confined to the dark portion of the chamber, and experiences inescapable aversive stimulus.

Specifications

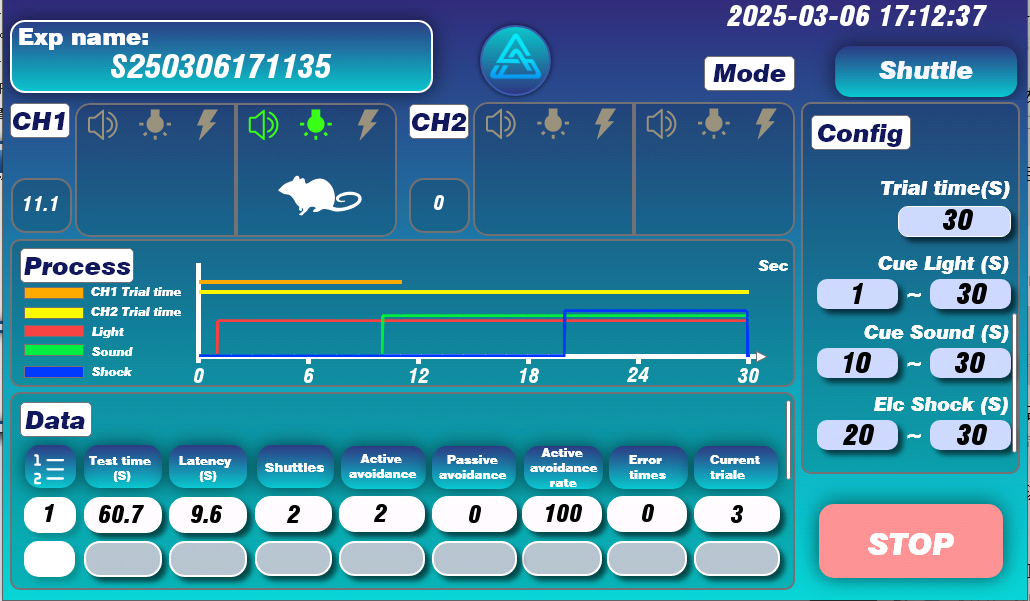

Shuttle Test

Electricity Shock	0.05 ~5 mA, using pulse current, deviation 0.01 mA
Test times	1~9999 min
Interval	1~9999 s
Electric shock / sound / light time	0~9999 s

Shuttle Test Data Record

Test time(s)	Latency(s)	Shuttle times
Active avoidance times	Passive avoidance times	Current trial
Active avoidance rate	Error times

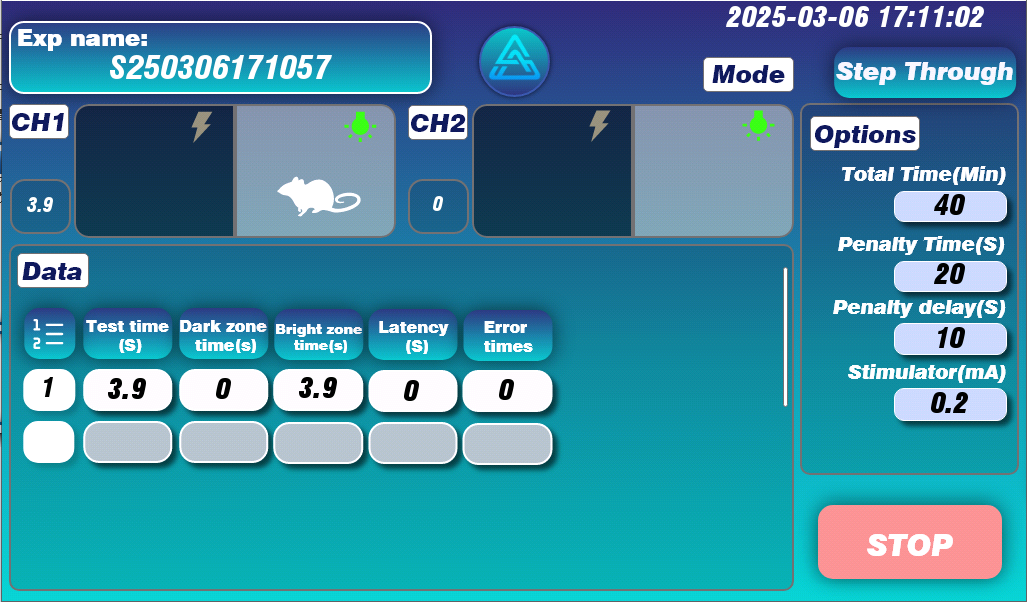

Avoidance Test

Electricity Shock	0.05 ~5 mA, using pulse current, deviation 0.01 mA
Test times	1~9999 min
Penalty delay	0-999 s
Penalty	0~999 s

Avoidance Test Data Record

Test time(s)	Dark zone time(s)	Bright zone time(s)
Latency(s)	Error times

Options

Total time (min)	Penalty delay (s)	Penalty time (s)
Stimulator (mA)

Shuttle Avoidance Physical Info

Mouse chamber	400 × 250 × 170 mm
Rat chamber	620 × 360 × 265 mm
Control unit	350 × 350 × 155 mm
Weight	5.8 kg
Power	AC 100V~240V 50/60HZ 100W

Order Information

Model	Description
SA222M	Shuttle Avoidance Test for Mouse
SA222R	Shuttle Avoidance Test for Rat

Certificate

For Research Use Only (RUO). Not for use in diagnostic procedures or patient testing.
