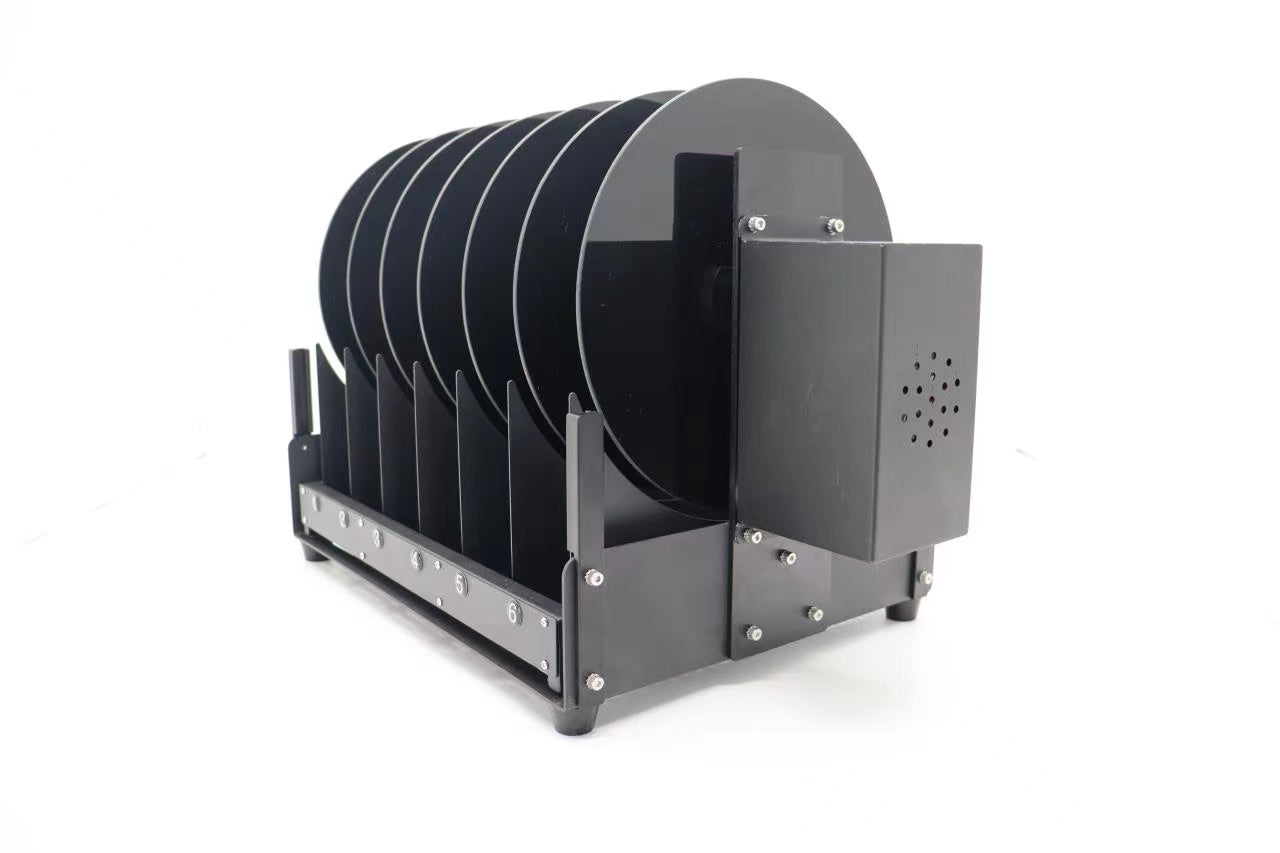

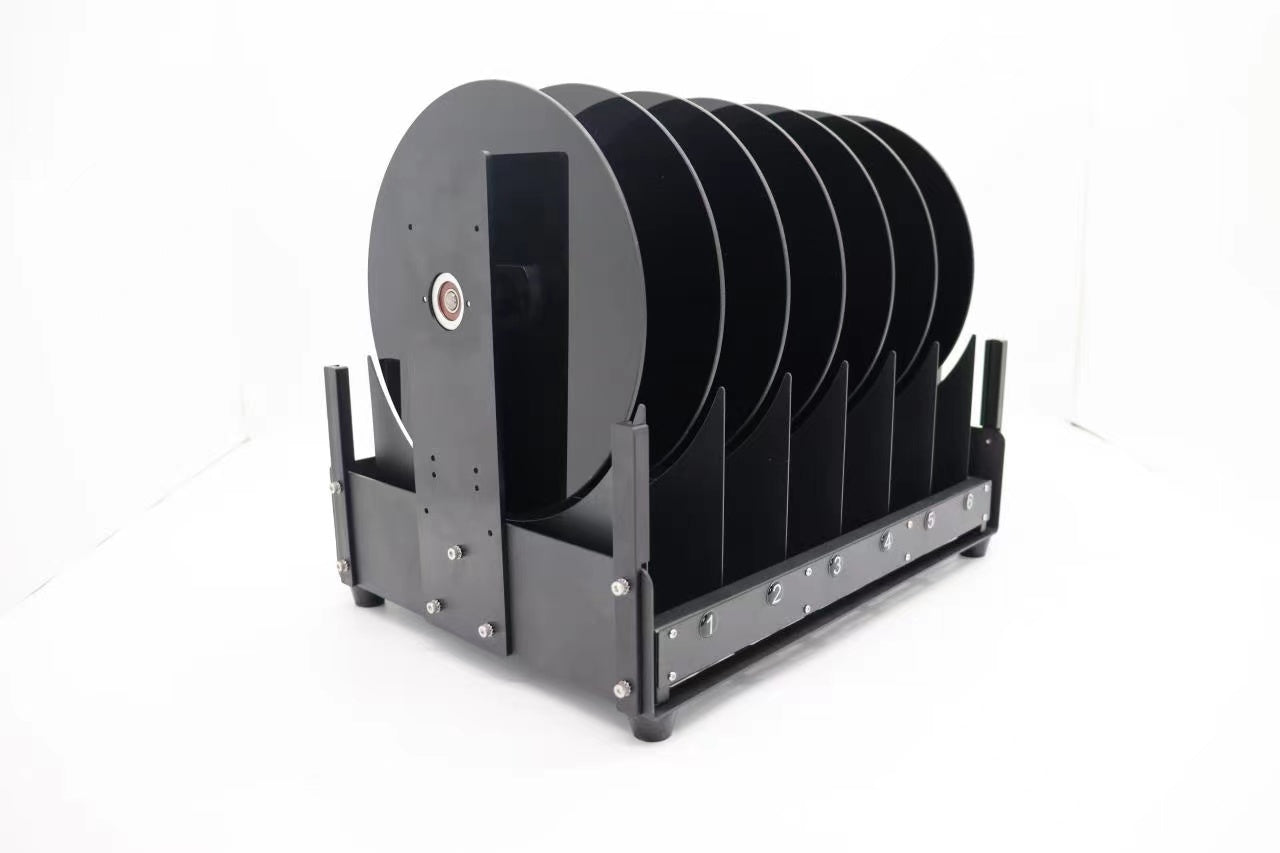

SANS RotaRod for Mice & Rats

Vendor: SANS

Type: Behavioral & Phenotyping Systems

RotaRod for Mice & Rats is a versatile system for assessing motor coordination, balance, and endurance in rodent models. Designed for neurological and ph... ... Read More

Name

Price Unit

Quantity

SA102 RotaRod for 6 Mice and 4 Rats

$7,473.20

SA102M RotaRod for 6 Mice

$5,606.09

SA102R RotaRod for 4 Rats

$5,606.09

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Total Price:

$7,473.20

Perfect Match With

1/2

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Feature

Advantages

Specifications

Order Information

Literature

Customer Review

overview

The RotaRod is mainly used for motor coordination, balance testing, anti-fatigue drug screening and identification testing, acted as the effective tool to assess motor performance in rodents using the natural fear of falling as motivation. Our RotaRod not only allows you easily switch to Rats or Mice by changing its frame. Also, it is a cost-saving RotaRod apparatus to do mouse and rat RotaRod performance test, and very easy to replace.

Applicable: 6 Mice or 4 Rats can be tested by using the same control unit.

Features & Benefits

Controller and RotaRod frame separately

Cost-saving, switch flexible

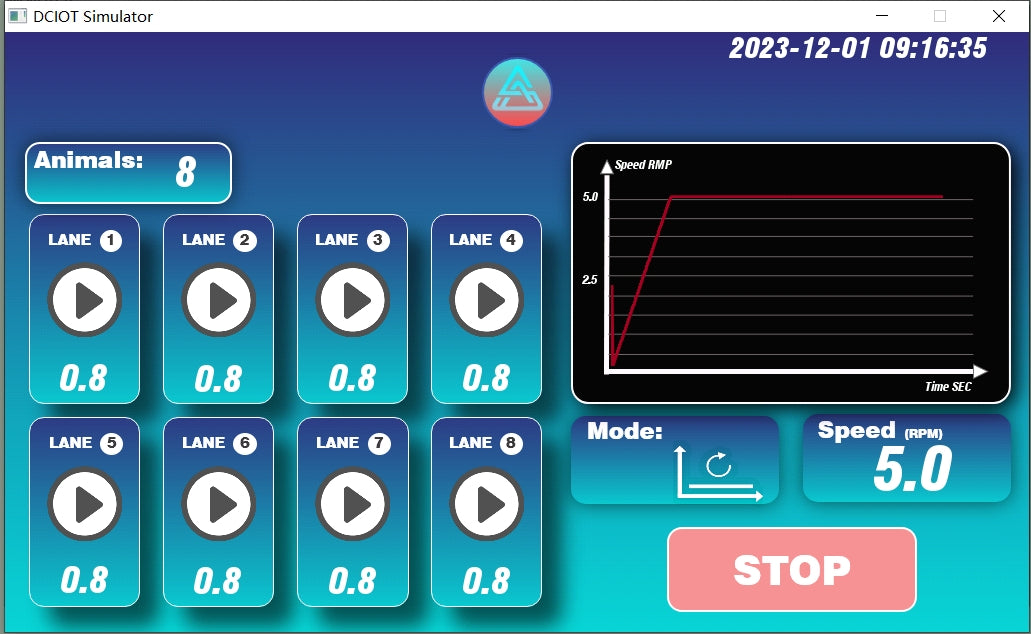

7 ” capacitive IPS LCD touch screen, resolution 1024*600

Big touch screen to be very easy to get the experiment data and good sensitivity in touch.

Control unit and USB key saving

No need to connect to PC.

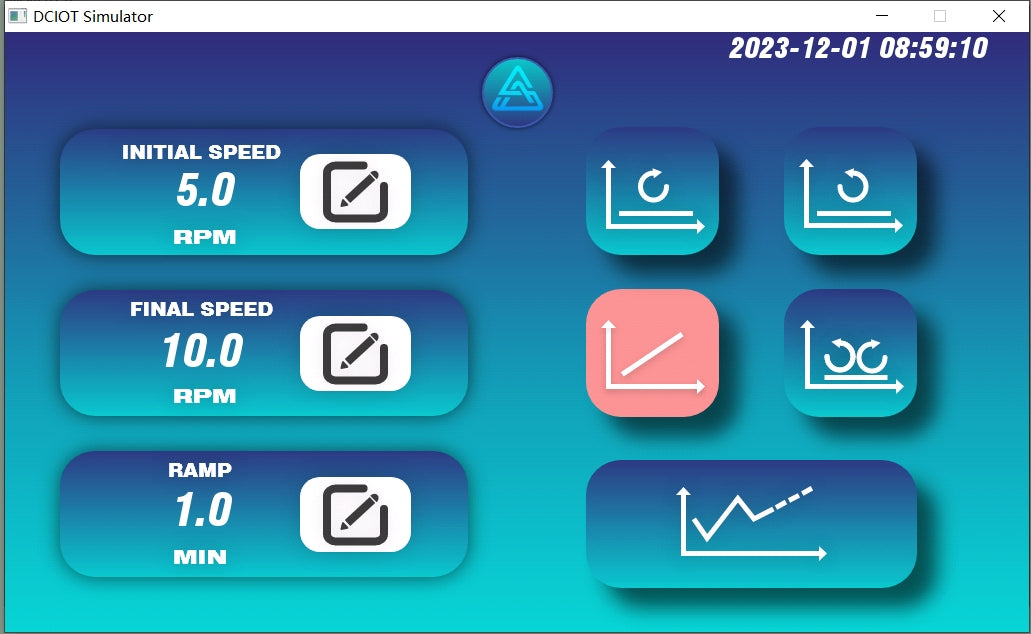

Constant, uniform acceleration, reverse ramp, custom ramp and rocking

ADAPTS to almost all coordination behavior and motor function experiments.

Precision IR Sensor

More accurate and sensitive for the detection.

8 protocol configurations can be set in the experiment

Can directly call the internal save experiment protocol, without setting up each experiment every time.

Speed range 0.05-100 RPMs, Step 0.1RPM

Be applicable for higher intensity test and more accuracy with 0.1RPM resolution.

Alone mode

Ensure the consistency of experimental data in each lane.

Automatic conversion of data into CSV files for the USB stick

Possibility to open files in Excel

>2000 data save

Large memory storage

Advantages

In the test, a rodent is placed on a horizontally oriented, rotating rod. Due to the height of the rod, rodents will tend to remain on the rod as fear of falling. As it rotates, either at a constant or at an increasing speed, rodents are forced to run thus to remain on the rod.

There are various rotation modes available in our RotaRod, constant, accelerating, rocking (back and forth) or through complex acceleration/deceleration ramps. The RotaRod can be switched to Rats or Mice by changing the rod frame only.

When the rodent falls off its cylinder section on to the plate below, the rotating time and the speed of falling will be recorded.

6 Mice or 4 Rats can be tested simultaneously and 8 protocols integrated in control unit to train and assess the motory coordination through the falling time.

Specifications

Basic Specification
Application	6 mice or 4 rats
Commands	7″ capacitive IPS LCD touch screen
Power	100–240 VAC, 50–60Hz
Sound Level	< 60 dB (A)
Operation
Mode	Uniform speed, uniform acceleration, uniform deceleration, acceleration & deceleration mixed mode
Speed	0.1–100 m/min adjustable, resolution 0.01 m/min
Acceleration	0.1–100 m/min²
Start / Stop	From the touch screen
Detection	When touching the electric shock grid
Stimulation	Pulse electric, sound, light
Shock	0.1–10 mA adjustable, pulse electric shock
Sound	1000–10 kHz frequency adjustable
Light	1–5000 Hz frequency adjustable
Lane slope	−25° ~ 25°
Exhaustion modes	Distance, Time, Shock
Results	Distance, running time, number of shocks, shock time, current, exhaustion state, speed
RotaRod Specification
Models	SA102M (Mouse), SA102R (Rat), SA102L (Large Rat)
Lanes	6 / 4 / 3
Rod Diameter	30 mm / 60 mm / 90 mm
Rod Width	56 mm / 86 mm / 120 mm
Fall Height	20 mm / 30 mm / 30 mm
Device Size (L × W × H)	51×28×35 cm (Mouse); 51×28×57 cm (Rat & Large Rat)
Weight	11 kg / 14 kg
Controller Size	27×30×13 cm
Controller Weight	6 kg
Power Consumption	60 W

Order Information

Item No.	Product Description
SA102	RotaRod for both Rats and Mice
SA102M	Mouse RotaRod (6 lanes)
SA102R	Rat RotaRod (4 lanes)
