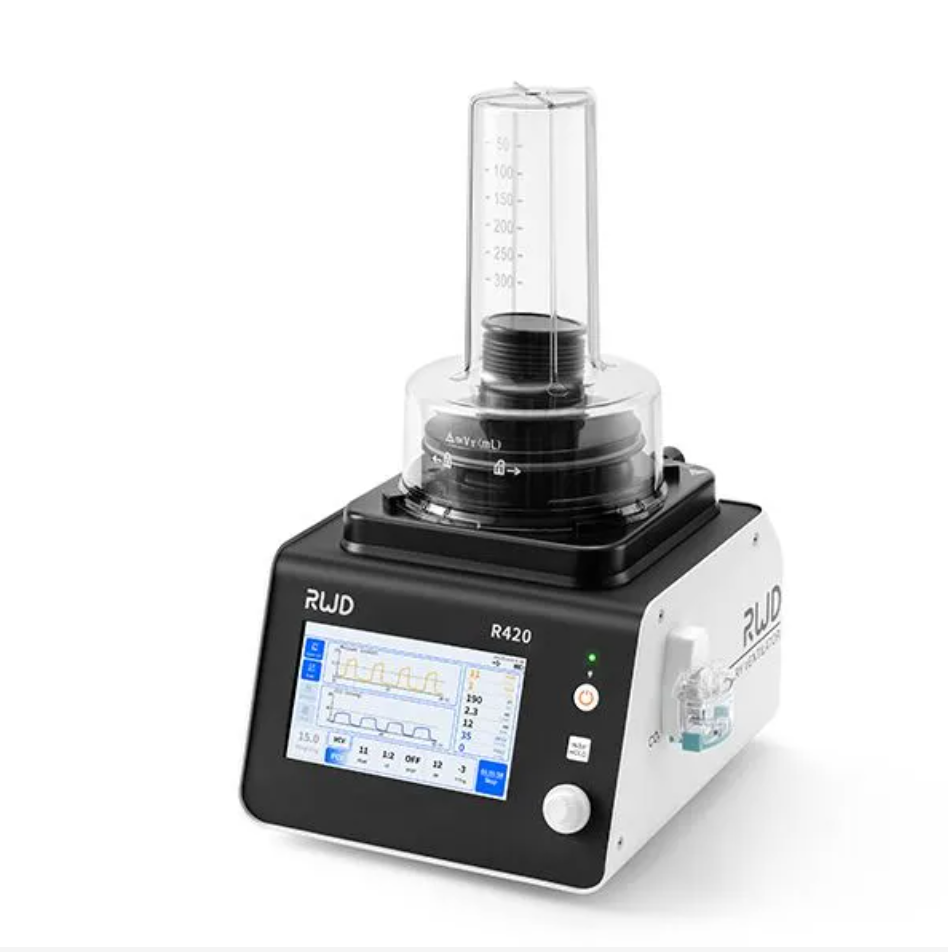

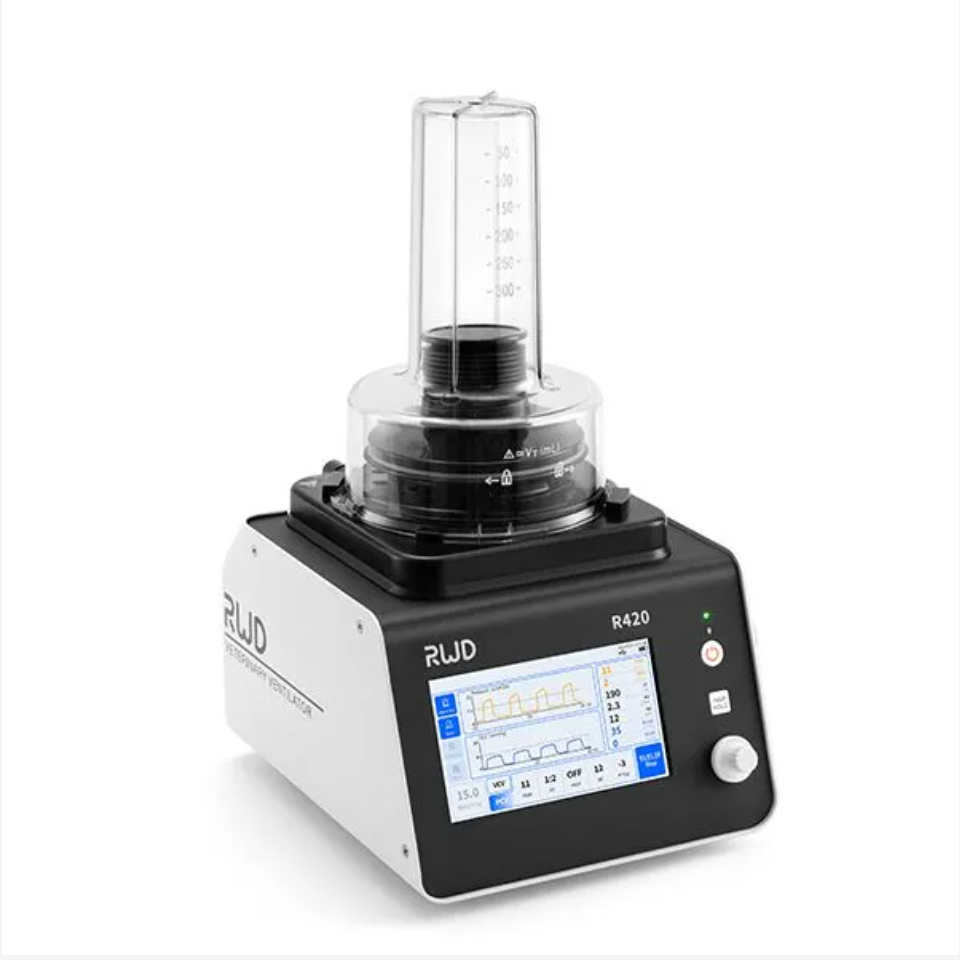

RWD R420 Veterinary Electric Turbo Ventilator

RWD R420 Veterinary Electric Turbo Ventilator

Vendor: RWD Life Science

Type: Anesthesia & Ventilation Systems

Turbine-driven veterinary ventilator requiring no driven gas. Features easy-to-use working modes and comprehensive animal ventilation monitoring for safe and... ... Read More

Price Unit

Quantity

$4,180.00

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Total Price:

$4,180.00

Perfect Match With

1/2

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Feature

Specifications

Order Information

Customer Review

overview

As a mechanical ventilation device, this is definitely a veterinary ventilation innovation. With high-performance turbine drive, R420 ventilator no longer needs driven gas. It’s a good solution to gas consumption problem of traditional ventilators. In addition, its easy-to-use working modes and comprehensive monitoring of animal ventilation state can ensure safe ventilation.

Features & Benefits

Turbo Drive

Electronically driven by a high-performance turbine, no more driven gas.

Precise ventilation

Minimum tidal volume down to 4 mL，more friendly to tiny animals.

Smart preset

Once inputting animal weight, smart respiratory parameters can be called up.

Guard “breathing” safety

Accurate and continuous monitoring of respiratory status, such as airway pressure – time chart, minute volume, EtCO2, and etc.

Multiple alarms

Multiple alarms and clear handling prompts ensure the safety of mechanical ventilation.

PEEP function

Help veterinarians solve low SpO2 problems during surgery.

Auto system leak test

Graphical guidance for quick start.

Remote control of inspiratory hold

During a CT scan of the chest or abdomen, help the animal to hold the inspiration and complete the CT scan.

Specifications

Item	Specification
Working principle	Turbo drive
Size	291mm×336mm×462mm
Net weight	8.5kg
Animal weight range	0.4 kg-150 kg
Respiratory rate	2~60bpm
I:E	1：1.0-1：4.0
Tidal volume	4-1500 ml
Peak inspiratory pressure	5-50 cmH2O
PEEP	3~20 cmH2O, OFF
Trig pressure	PEEP OFF: -10~ -1cmH2O，OFF； PEEP ON: -10~-4cmH2O，OFF
Touch screen	7inch，1024*600px
EtCO2 measuring range	Measuring range :0mmHg – 114 mmHg
EtCO2 sample flow rate	75mL/min

Order Information

Product Name	Catalog Number
Veterinary Electric Turbo Ventilator	R420

Certificate

For Research Use Only (RUO). Not for use in diagnostic procedures or patient testing.
