RWD Minux® Rotary Microtome S712

Vendor: RWD Life Science

Type: Microtome

Rotary microtome with manual and semi-automated sectioning, separate control panel, position memory, half-knife function, 5" touchscreen with history logging... ... Read More

Name

Price Unit

Quantity

Minux® Rotary Microtome S712

$11,150.00

S700-F3 Universal clamp

$234.00

S700-F4 Standard clamp

$292.00

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Total Price:

$11,150.00

Perfect Match With

1/2

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Feature

Specifications

Certificate

Customer Review

overview

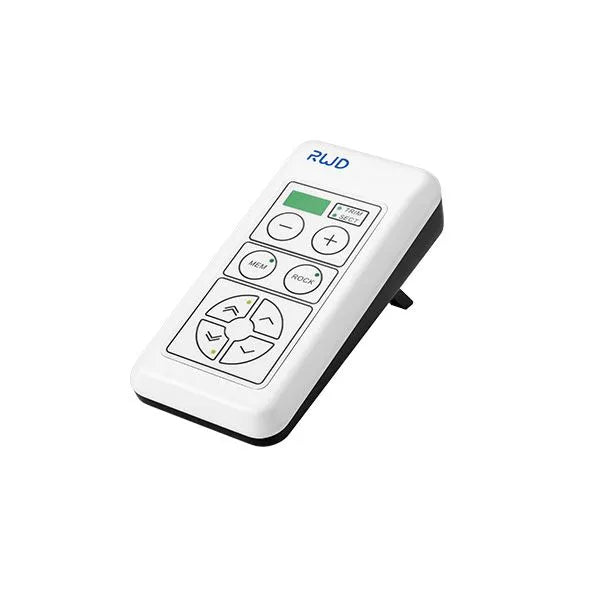

The S712 rotary microtome offers a combination of manual sectioning and semi-automated setup, meeting operators’ different habits. Its separate control panel allows for sample advance and retreat, trimming and sectioning conversion, thickness adjustment, position memory and half-knife function.

Moreover, the historical record system shows operation and alarm logs on a 5-inch touch screen to query the microtome usage and facilitate information tracking. Then low-cost maintenance can be achieved.

The 2-in-1 blade holder satisfies the use of high and low-profile blades.

Features & Benefits

Precise

High-precision sampling system combining cross roller bearings, screw rod, five-phase high-resolution stepper motor and aviation-grade aluminum link block ensures excellent section quality. Stable gantry structure and high-hardness alloy transmission enhance rigidity for accurate hard-tissue sectioning. The precision knife holder minimizes position shift during blade changes, with scale markings to help determine the optimal blade position.

Safe

Dual handwheel locks enable safe sample replacement, with the handwheel lockable at any position. Full-length knife guard covers the blade to prevent accidental injury during operation, ensuring safer daily use.

Convenient

Unique visual pointer allows clear and accurate angle adjustment for faster specimen positioning and easy angle replication across multiple devices. Ergonomic small handwheel and side knob enable comfortable slice thickness adjustment, with adjustable single-turn sampling distance and low torque below 2.5 kgf·cm for all-day operation.

Easy to Clean

Magnetic design allows quick disassembly and installation. Large-capacity waste tray with special coating is easy to clean, reducing cleaning time to just a few seconds.

Information Backtracking

Built-in historical record system displays operation and alarm logs on a 5-inch touch screen, enabling easy review of microtome usage and efficient information tracking.

Specifications

Available accessories

Description	Model
Universal clamp	S700-F3
Standard clamp	S700-F4
Blade holder assembly	S700-F2
Blade holder upper bracket	S700-F8

Specifications

Parameter	Specification
Section thickness range	0.5 – 100 µm
Trimming section thickness range	1 – 800 µm
Electric coarse feed	100 – 3000 μm/s adjustable
Specimen retraction	0 – 250 µm adjustable
Horizontal feed	28 mm
Vertical stroke	70 mm
Specimen orientation	X / Y axis 8°
Maximum specimen size	60 × 50 × 40 mm
Dimensions (W × D × H)	490 × 430 × 315 mm
Machine weight	30 kg
Mode	Rock mode
Other	Position memory function

Certificate

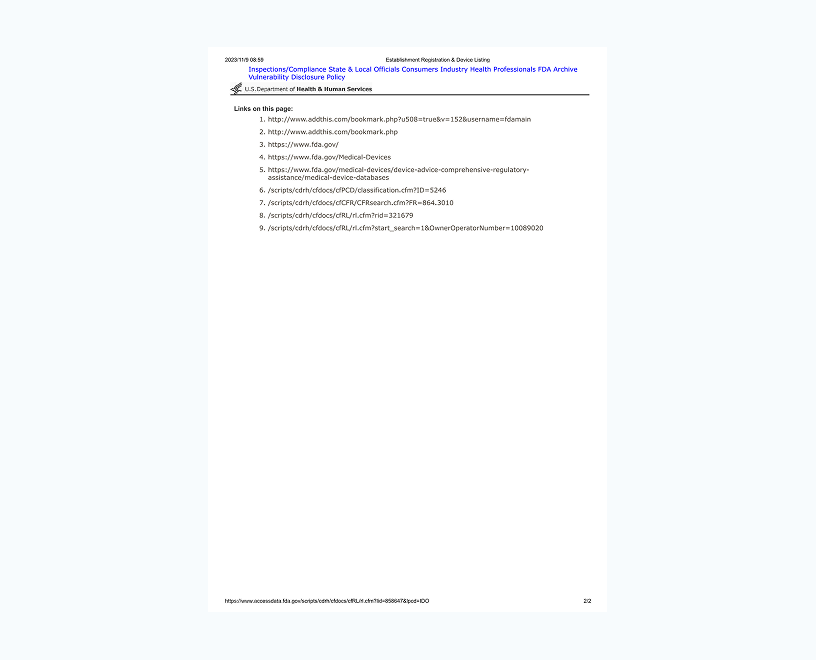

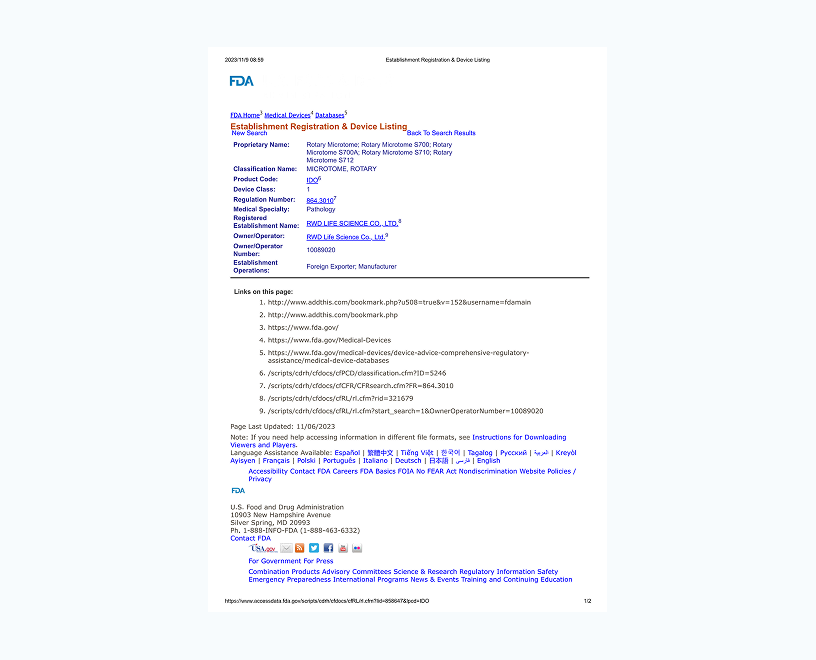

RWD S700, S700A, S710 and S712 microtomes have been registered and listed by the US FDA (available on the FDA official website) and have been approved for clinical use.
