RWD Laboratory Animals Brain Single Cannula
Vendor:
RWD Life Science
Type:
Drug Delivery & Infusion Systems
Single cannula for precise intracranial access in rats and mice. Designed for targeted drug delivery, neural stimulation, and brain region research in neuros...
...
Read More
Name
Price Unit
Quantity
62005
$4.10
62001
$3.50
62002
$3.50
62003
$4.10
62004
$4.10
62201
$5.30
62202
$5.30
62203
$5.30
62204
$5.30
62101
$3.00
62102
$3.00
62104
$3.00
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
COPY
Total Price:
$4.10
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
Share:
Specifications
A – The length of the stainless steel tubing below the plastic pedestal
B – The height of the cylindrical plastic base.
C – The length of the stainless steel tubing below the plastic pedestal,can be customized.
D – External diameter of stainless steel guide cannulas.
E – External diameter of cylindrical plastic base.

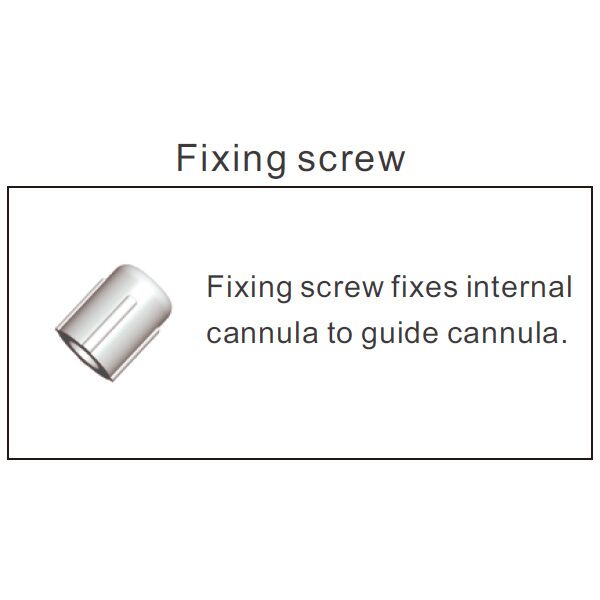

F1 – External diameter of Fixing screw.

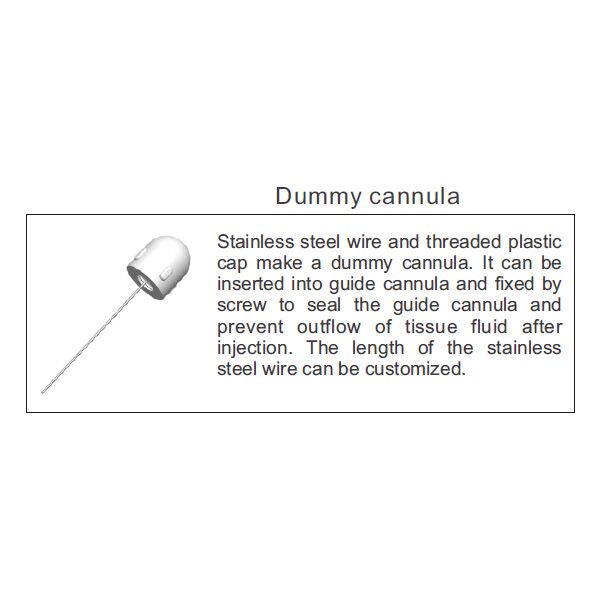

F2 – External diameter of Dummy Cannulas.
H1 – Height of Fixing screw.
H2 – Height of Dummy Cannulas.
G1 – The internal cannulas projection length beyond the guide cannulas tip, can be customized.
G2 – The dummy cannulas projection length beyond the guide cannulas tip, can be customized.
For detailed specs, please download the brochure:
Microinjection Cannula Brochure (PDF)
Order Information
Purchasing Steps：
Step 1：
Selecting the guide cannula size according to the experimental animal and the depth of the target brain region.
Guide cannula size selection for rat: 62005 (22G), 62001 (23G), 62002 (24G).
Guide cannula size selection for mouse: 62003 (26G), 62004 (27G).
Step 2：
Determine the C value: length of the stainless steel tube of the Guide cannula. C = depth of target brain region + thickness of dental cement (0.5 ~ 0.8 mm) – G1.
Step 3：
Determine the G1 value：the length of the protruding part of the internal cannula when it is inserted into the guide cannula.Usually 0.5 mm or 1.0 mm is selected, and 0.5 mm is recommended.
Step 4：
Determine the G2 value： The length of the protruding part of the dummy cannula when it is inserted into the guide cannula.Usually 0, 0.5mm or 1.0 mm is selected, 0 mm is recommended.
Step 5：
Selecting the screws (recommended diameter slightly larger than the diameter of the skull drill), plugs, catheters, and other accessories.
| Product Type | Guide cannula (ODXID) | Internal cannula (ODXID) | Dummy cannula | Fixing screw | PU tube | Plug | Length customization range (mm) | |||
| Plastic OD | Metal OD | C | G1 | G2 | ||||||
| Single cannula | 62005(22G) (0.71×0.45) | 62201 (0.41×0.25) | 62101 0.4 | 62106 0.4 | 62502 | BC-22 | P22-R/ P22-W | 1~15 | 0,0.5~15 | 0,0.5~15 |
| 62001(23G) (0.64×0.45) | 62201 (0.41×0.25) | 62101 0.4 | 62106 0.4 | |||||||
| 62002(24G) (0.56×0.38) | 62202 (0.36×0.2) | 62102 0.3 | 62107 0.3 | |||||||
| 62003(26G) (0.48×0.34) | 62203 (0.3×0.14) | 62102 0.3 | 62107 0.3 | |||||||
| 62004(27G) (0.41×0,25) | 62204 (0.21×0.11) | 62104 0.2 | 62108 0.2 | |||||||
Screws:
| Model | Product Description |
| 62513 | Screw-M1.0xL2.0mm |
| 62514 | Screw-M1.2xL2.0mm |
| 62515 | Screw-M1.4xL2.5mm |
