What level of positioning precision does the IMC-500 provide?

The IMC-500 offers a minimum mechanical motion resolution of 50 nm, supporting high-precision positioning for applications such as electrophysiology, microinjection, and other fine manipulation tasks.

How stable is the IMC-500 during long experiments?

The IMC-500 is specified with drift less than 1 µm over 2 hours, helping maintain stable positioning during extended experimental procedures.

What is the movement range of the IMC-500?

The IMC-500 provides a travel range of 25 mm on the X and Y axes and 30 mm on the Z axis, allowing positioning across a wide working area for laboratory experiments.

Can the IMC-500 control multiple manipulators at once?

Yes. The IMC-500 system allows one console to manage up to four arms, supporting multi-manipulator setups for experiments involving multiple electrodes or tools.

How does the IMC-500 support operation during experiments?

The IMC-500 features an LCD interface that displays real-time coordinates and speed, along with functions such as position memory and preset return, supporting efficient and controlled operation.

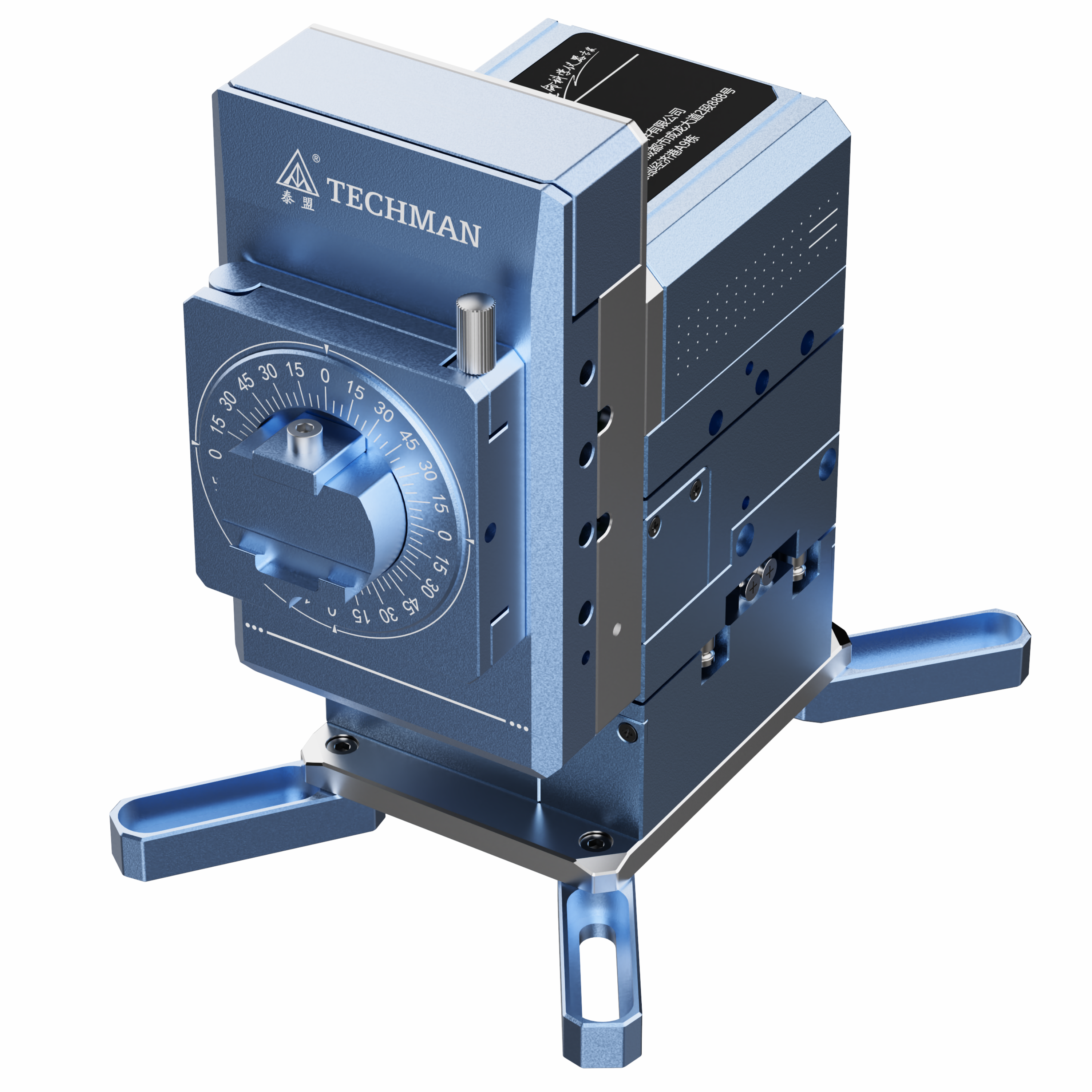

Techman Intelligent Micromanipulator

Vendor: Techman

Type: Stereotaxic & Neurosurgery Systems

The IMC-500 is a high-precision Intelligent Micromanipulator developed by Techman. It integrates advanced drive technology with smart control software, makin... ... Read More

Name

Price Unit

Quantity

2-arm

$16,800.00

Left arm

$10,000.00

Right arm

$10,000.00

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Total Price:

$16,800.00

Perfect Match With

1/2

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Feature

Highlights

Applications

Specifications

Order Information

Resources

FAQ

Customer Review

overview

The IMC-500 is a high-precision Intelligent Micromanipulator. It integrates advanced drive technology with smart control software, making it ideal for cutting-edge research in electrophysiology, microinjection, and more.

Features & Benefits

Moter-driven

Precise control.

Provide X/Y/Z and combined 4th axis

Supports combined XZ-axis movement with customizable alignment angles.

LCD screen

Displays real-time coordinates and speed.

Highlights

Compact Design

Integrated console and compact arm with in-motor design, offering X/Y travel of 25 mm and Z travel of 30 mm — optimized for electrode replacement and mainstream experimental setups.

Smart Expansion

Intelligent control software supports custom trajectories and pressure-clamp functions.

Easy Operation

One console manages up to four arms with switchable control, position memory, and one-click return to initial or preset positions.

High Precision

Nanometer-level accuracy and repeatability.

Applications

Patch clamp experiments

Microinjection

Precision mechanical control

Intracellular & extracellular recording

Scratch assays

Specifications

Parameter	Description
Drift	< 1 μm / 2 h
Travel Range	X and Y axes: 25 mm Z axis: 30 mm
Maximum Moving Speed	3 mm/s
Minimum Mechanical Motion Resolution	50 nm

Order Information

Product Name	Model	Product Description
Intelligent Micromanipulator	IMC-500	Intelligent Micromanipulator (2-arm)
	IMC-500L	Intelligent Micromanipulator (1-arm: Left arm)
	IMC-500R	Intelligent Micromanipulator (1-arm: Right arm)

Certificate

For Research Use Only (RUO). Not for use in diagnostic procedures or patient testing.

Resources

Welcome to the User Manual! This manual is your go-to resource for understanding and utilizing our product efficiently. It offers comprehensive instructions, troubleshooting tips, and FAQs to help you navigate through its features seamlessly.

Intelligent Micromanipulator IMC-500

Frequently Asked Questions

What level of positioning precision does the IMC-500 provide?

The IMC-500 offers a minimum mechanical motion resolution of 50 nm, supporting high-precision positioning for applications such as electrophysiology, microinjection, and other fine manipulation tasks.
How stable is the IMC-500 during long experiments?

The IMC-500 is specified with drift less than 1 µm over 2 hours, helping maintain stable positioning during extended experimental procedures.
What is the movement range of the IMC-500?

The IMC-500 provides a travel range of 25 mm on the X and Y axes and 30 mm on the Z axis, allowing positioning across a wide working area for laboratory experiments.
Can the IMC-500 control multiple manipulators at once?

Yes. The IMC-500 system allows one console to manage up to four arms, supporting multi-manipulator setups for experiments involving multiple electrodes or tools.
How does the IMC-500 support operation during experiments?

The IMC-500 features an LCD interface that displays real-time coordinates and speed, along with functions such as position memory and preset return, supporting efficient and controlled operation.
