SANS Incapacitance Meter for Mouse & Rat SA714

SANS Incapacitance Meter for Mouse & Rat SA714

Vendor: SANS

Type: Behavioral & Phenotyping Systems

Incapacitance Meter, also called Static Weight Bearing, is specially designed to quantify pain in rodents by measuring the static weight borne by each hind ... ... Read More

Price Unit

Quantity

$4,683.00

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Total Price:

$4,683.00

Perfect Match With

1/2

Delivery timelines will be provided with your quote

Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Feature

Advantages

Specifications

Order Information

Customer Review

overview

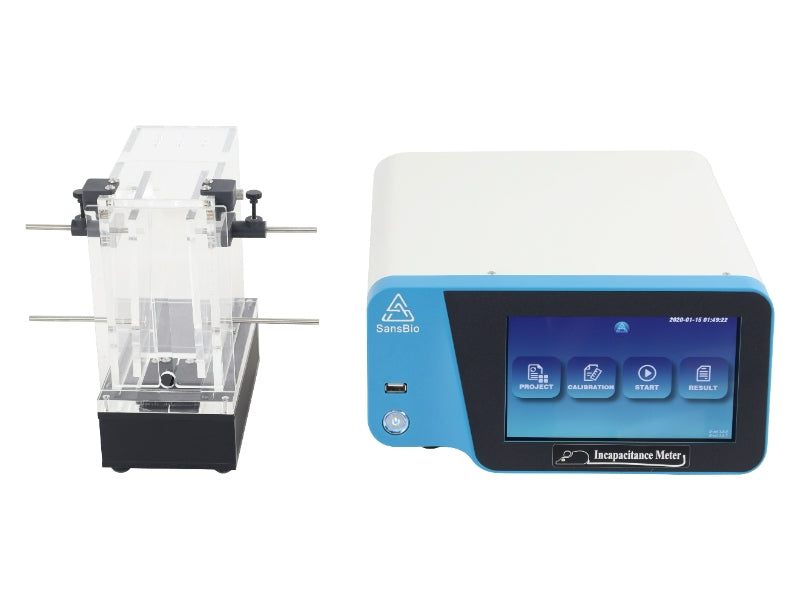

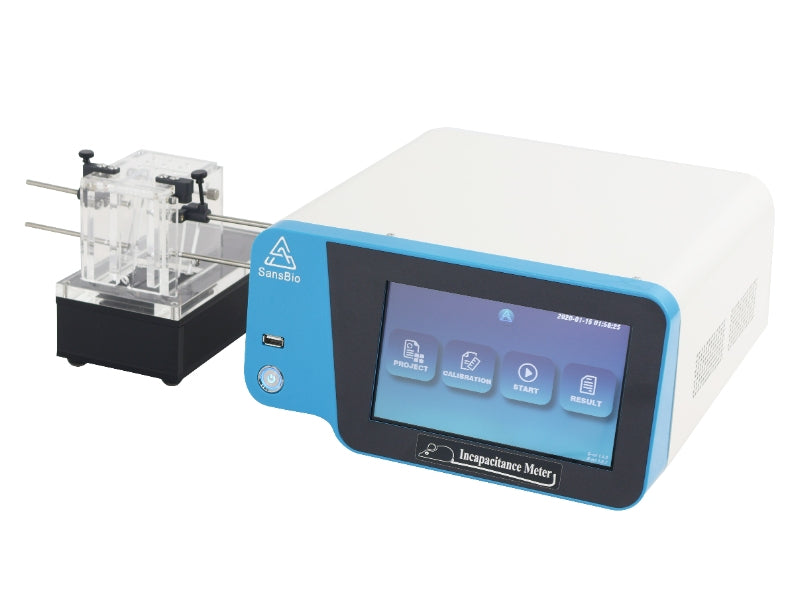

The Incapacitance Meter uses dual-channel weight sensors under each hind paw to capture weight distribution with high accuracy. Its real-time LCD touchscreen display shows left and right paw weights and symmetry index while a built-in computer analyzes data instantly. Tests run for user-defined periods (from a few seconds up to several minutes), during which the Incapacitance Tester averages the forces on each paw. The Incapacitance meter is specially intended for pain and inflammation research: it measures diminished weight-bearing on an affected limb as a sensitive indicator of spontaneous pain. Unlike reflex-based tests, this setup lets the animal stand freely at rest, providing an observer-independent measure of ongoing pain or recovery. All operations like start, stop, reset, calibration are controlled from the touchscreen control unit, enabling flexible, programmable testing without extra equipment.

Features & Benefits

Stress-free testing

Animals are unrestrained and free to adopt a normal stance, avoiding stress-induced fluctuations.

High sensitivity

Dual-platform design ensures even small shifts in weight are detected, enabling early pain detection. Published data show such devices reliably track decreased limb loading in rodents after inflammatory or neuropathic injury.

Repeatable results

Once animals are trained to stand in the incapacitance meter, repeated trials show very little variation in baseline weight distribution. This high repeatability means subtle changes (e.g. due to drug treatment) can be detected confidently.

Automated analysis

Integrated software computes symmetry indexes and statistical outputs in real time, saving time for researchers. Users can quickly export charts or raw data for publication-quality reports from our incapacitance meter.

Advantages

The Incapacitance Meter provides objective, observer-independent data, eliminating subjective bias. By measuring each hind paw continuously as the animal stands naturally, it quantifies spontaneous pain without the need for induced stimuli.

Suitable for both Rats and Mice
Recording data: Hind Paw Symmetry Index.
Suitable for measuring the weight distribution of the hind paw in both mice and rats, ideal for evaluating spontaneous pain.
Unrestrained animal is free to adopt a normal stance, avoiding stress-induced fluctuations.
Unique dual-sensor design for independent measurement of left and right hind paw forces, accuracy up to 0.3g.
Easy and convenient calibration to ensure its accuracy.

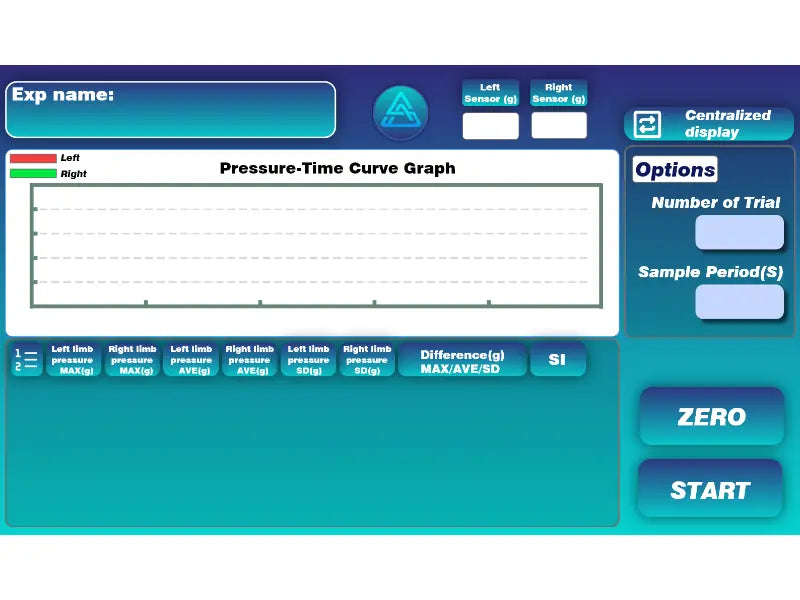

LCD touchscreen provides real-time dynamic display of left/right paw weight distribution.
Automatically calculates the maximum, minimum, and average force for both paws.
Large volume with 2,000 data.
Data be exportable through USB port.
High-precision weighing, allowing for repeatable, consistent testing.

Specifications

Parameter	Specification
Basic Specification
Application	Mouse and Rat
Commands	7-inch capacitive LCD touchscreen, Resolution: 1024 × 600 dpi
Power	100–240 VAC, 50–60 Hz
Operating Environment	10°C to 40°C; 5% to 95% RH (non-condensing)
Operation
Animal Weight (per paw)	0–500 g
Resolution	0.01 g
Accuracy	0.1 g
Measure Time	1–100 s
Measure Starting Mode	Manual and Automatic
Calibration	With weight calibration
Data Collections per Test	1–20 times
Internal Space Range	0–100 mm adjustable
Space Adjustment Track	Linear guide rail
Angle Adjustment Range	55–75 degrees
Data exportable via USB
Data Result
Left limb pressure MAX Right limb pressure MAX
Left limb pressure AVE Right limb pressure AVE
Left limb pressure standard deviation Right limb pressure standard deviation
Difference between limbs Symmetry Index
Physical Info

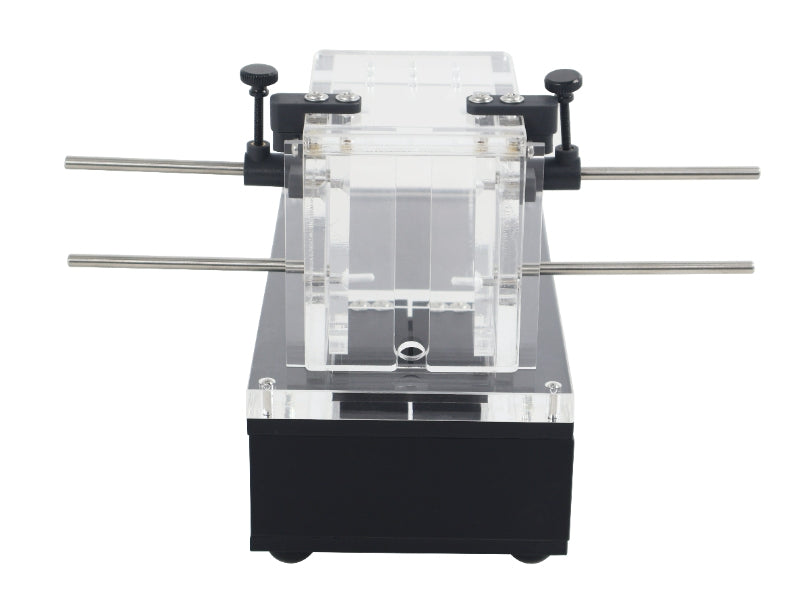

Restrainer Material	10 mm transparent acrylic
Weight Transducer Assembly Size	170 × 95 × 50 mm
Restrainer Size (Mouse)	80 × 62 × 76 mm
Restrainer Size (Rat)	130 × 77 × 156 mm
Control Unit Size	320 × 270 × 120 mm
Weight	7.8 kg

Order Information

Item No.	Product Description
SA714	Incapacitance Meter for Mouse and Rat

Certificate

For Research Use Only (RUO). Not for use in diagnostic procedures or patient testing.
