SANS Grip Strength Meter

Vendor: SANS

Type: Behavioral & Phenotyping Systems

Grip strength meter for evaluating motor and neuromuscular function in rats and mice. Measures peak force with automatic data analysis software for biologica... ... Read More

Price Unit

Quantity

$3,191.58

Customize

Want more possibilities ?

Save

$200

Code: RWD200

Ends in 2 Days 23:12:45

COPY

Total Price:

$3,191.58

Perfect Match With

1/2

Shipping & lead times

In stock items usually ship within 2 business days
Custom / backordered items lead time vary. Contact us for a quote along with your exact delivery window.

90-day return policy

Eligible items may be returned within 90 days after delivery, subject to our Return Policy.

Notice

Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.

Overview

Feature

Advantages

Applications

Specifications

Order Information

Literature

Customer Review

overview

The Grip Strength Meter is widely used to evaluate the motor function, neuromuscular function in rodents such as rats or mice. By determining the peak force exerted by the rodent, it provides essential data for assessing strength and recovery. Our grip strength meter comes with the analysis software which can calculate the data automatically, making it convenient for biological statistics.

Features & Benefits

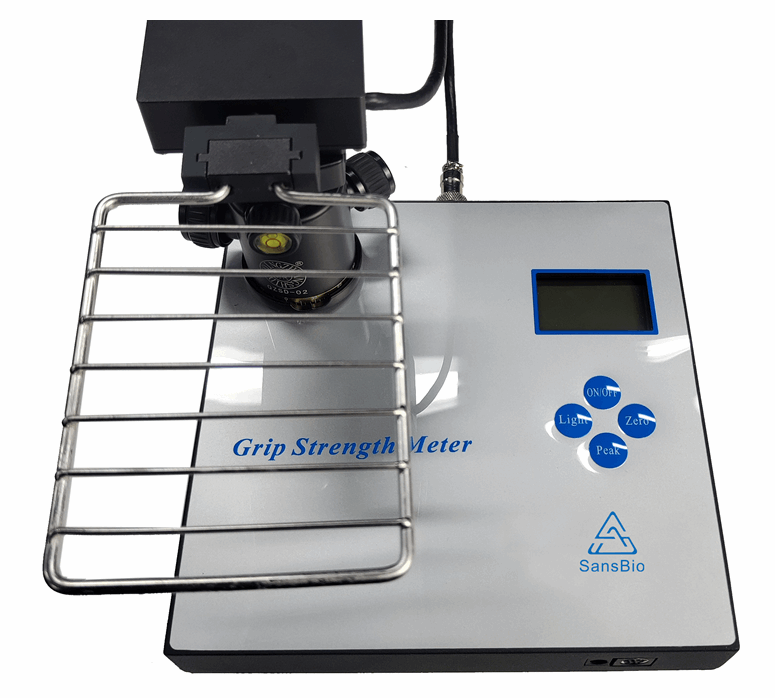

Grip Strength Meter for Rats and Mice

Stand-alone tool or connected to PC via USB for monitoring and recording experiments

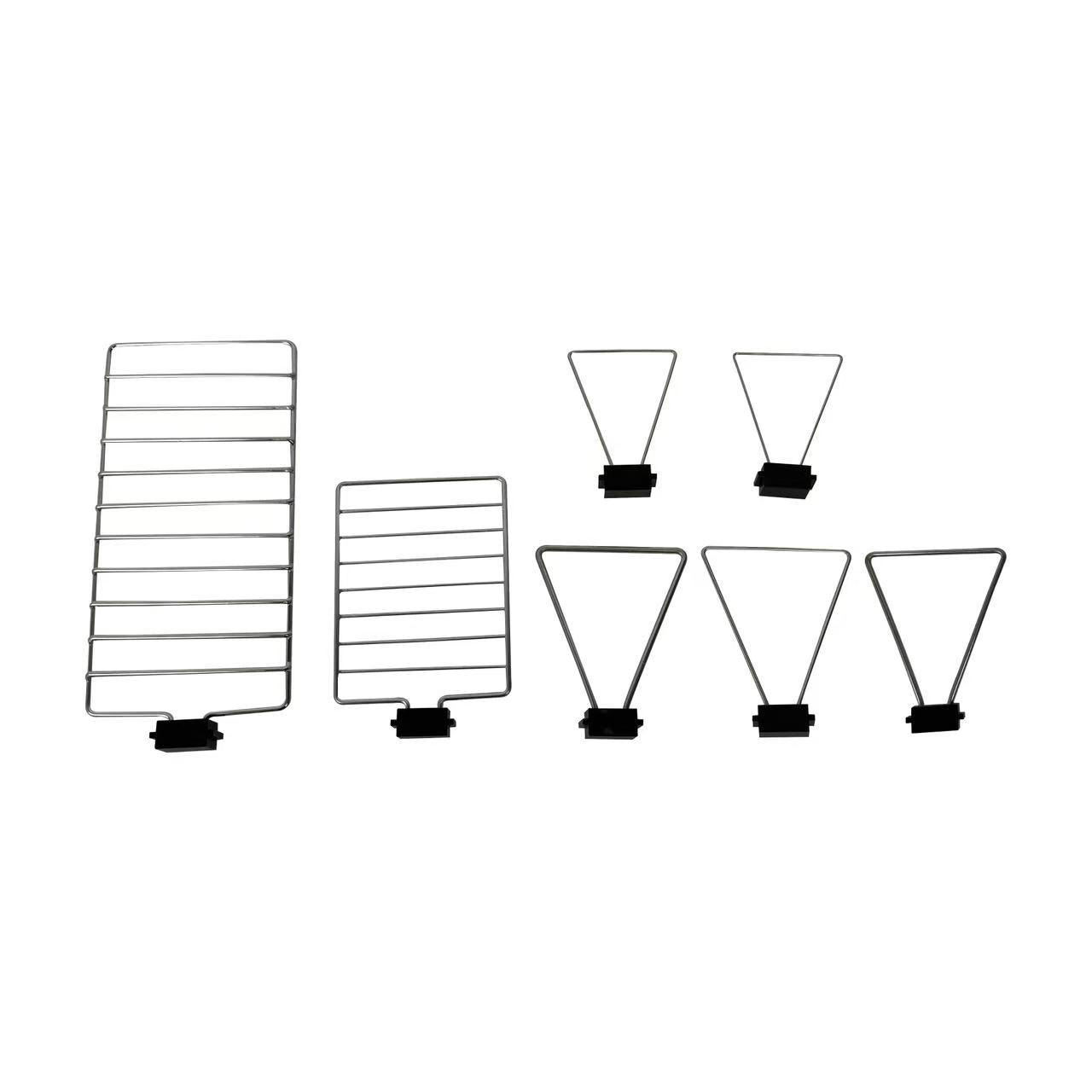

Equipped with 2 grip mesh grids and 5 grip bars for forelimb or hind limb tests

Battery Powered Compact Control Unit

Intuitive setting and result view
Lasts up to 20 hours

Sturdy Adjustable Base

360-degree rotation to adjust angle according to animal activity
Ensures accurate force measurement

Highly Reliable Sensors

Achieves fine resolution of 0.01N
Supports multiple units: gf, N, LBs

Easy Handling of Animals

Hold the animal by tail or neck skin
Move the animal to grasp the grid/bar
Pull along sensor axis until grip is released

Advantages

Researchers can easily and friendly operate our grip strength meter to accurately measurement peak force of rodent gripping. Watch video to see the operation of grip strength meter.

BioMed’s Grip Strength Meter offers full control through its intuitive on-screen LCD display in standalone mode. For enhanced data recording, our GSM software record the start time, end time, duration, average force, peak force etc., effortlessly export data as CSV files for efficient analysis, making research processes simpler and more effective.

Applications

Arthritis & Osteoarthritis

Parkinson’s Disease

Physical Activity

Motor Control

Muscular System

Central Nervous System (CNS)

Cognitive Performance

Metabolism

Mood Disorders

Neurodegeneration

Pain Research

Sensory System

Specifications

Specification

Description	The single Grip Strength Meter includes 2 Grip plates and 5 Grip bars suitable for forelimb or hind limb grip strength test for Rat and Mouse
Maximum Tensile Force	0 – 50 N (5 kgf)
Resolution	0.01 N
Peak Force	Remains until manual zeroing
Units	gf, N, LBs (1000gf = 9.81N; gf recommended for Mouse)
Backlight	Inductive, can be turned on/off
USB Port	Built-in, allows transfer of data to PC
Data Export	Visualized on control unit display or exported to PC, TXT or Excel-compatible files, JPG for curves
Power Supply	Power adaptor 100-240V or battery, 20 hours usage
Overall Dimension	280 × 120 × 100 mm
Grip Mesh Size	90 × 90 mm
Net Weight	3.5 kg
Power Input	110~220V 50Hz
Power Output	9V 400 mA

Order Information

Item No.	Product Description
SA415	Grip Strength Meter for both Rat and Mouse

Certificate

For Research Use Only (RUO). Not for use in diagnostic procedures or patient testing.
