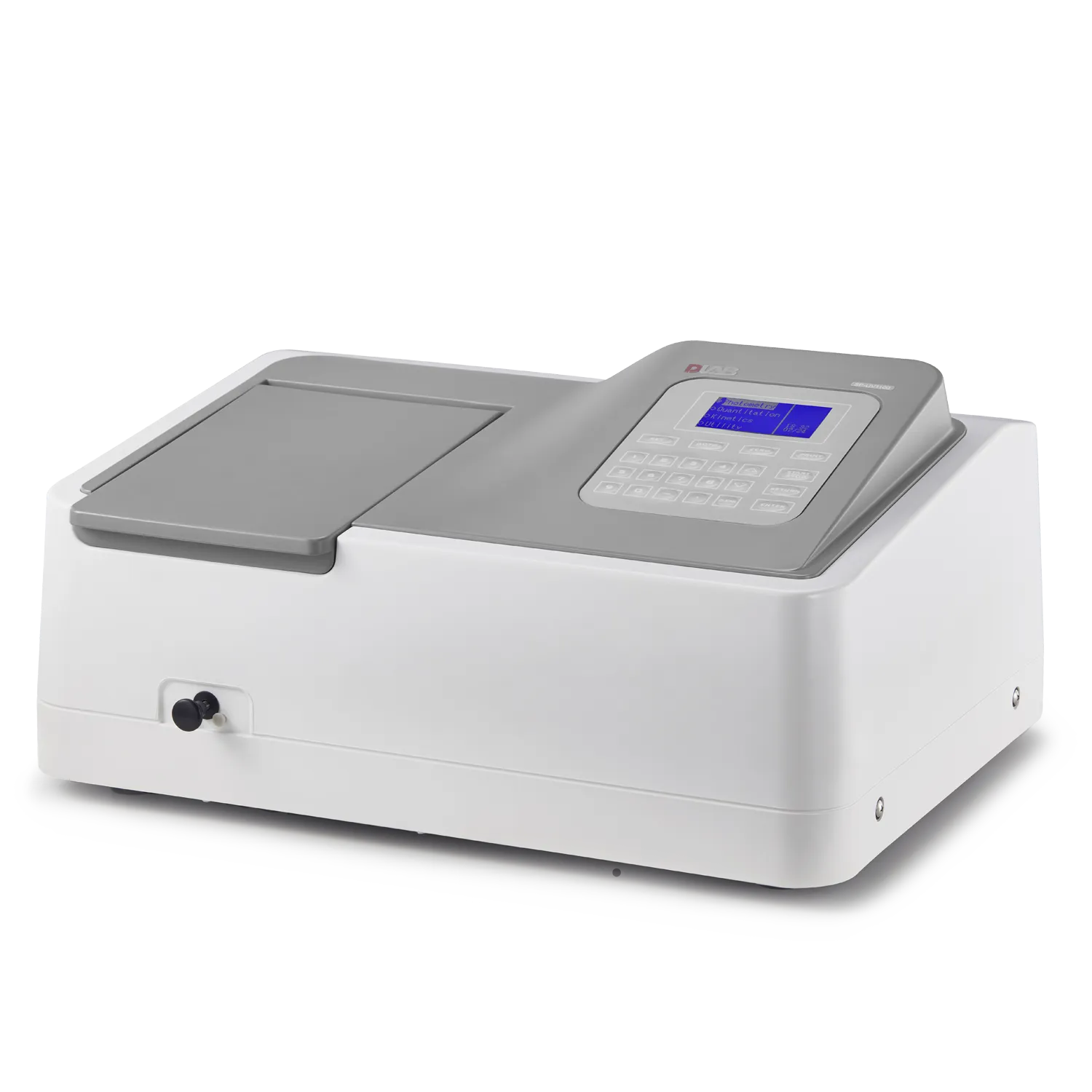

DLAB Spectrophotometer SP-UV1100
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
overview
Features & Benefits
190–1100 nm wavelength range
Covers both UV and visible light regions in a single instrument, supporting a broad range of absorbance measurement applications.
Automatic tungsten & deuterium lamp switching
Seamlessly switches between the two light sources without manual intervention, streamlining workflows that span the full wavelength range.
Auto wavelength calibration
The system self-calibrates at startup, ensuring measurement accuracy without requiring manual adjustment before each session.
200 data groups & 200 standard curves
Stores up to 200 measurement datasets and 200 standard curves onboard, with data retained even after an unexpected power failure.
Large sample compartment
Accommodates cuvettes with path lengths from 5 to 100 mm using optional holders, offering flexibility for different sample volumes and container types.
Full standalone operation
All functions can be executed without a connected computer, making the SP-UV1100 self-sufficient for routine lab measurements.
Optional Wave Professional software
Adds computer control, spectrum scan, time scan (kinetics), multiwavelength scanning, and nucleic acid/protein quantification to the system's capabilities.
Specifications
| Parameter | Specification |
|---|---|
| Optical System | |
| Optical System | Single Beam |
| Light Source | Tungsten Lamp (Japan HYBEC) | Deuterium Lamp (Milaras) |
| Spectral Bandwidth | 2.0 nm |
| Wavelength Range | 190–1100 nm |
| Wavelength Accuracy | ±0.5 nm |
| Wavelength Repeatability | ≤0.3 nm |
| Stray Light | ≤0.05%T @ 220 & 360 nm |
| Photometric Performance | |
| Photometric Range | −0.3 – 3.0 A, 0 – 200%T |
| Photometric Accuracy | ±0.002 A @ 0.5 A; ±0.004 A @ 1.0 A; ±0.3%T @ 100%T |
| Photometric Repeatability | ≤0.001 A @ 0.5 A; ≤0.002 A @ 1.0 A; ≤0.15%T @ 100%T |
| Stability | ≤0.002 A/h @ 500 nm (after 2 h preheat) |
| Sample & Interface | |
| Sample Compartment | 4-position, 10 mm pathlength cuvette |
| Display | Dot Matrix LCD |
| Output | USB Port & Parallel Port (Printer) |
| Electrical & Physical | |
| Power Requirements | 110/220 VAC, 50/60 Hz, 120 W |
| Dimensions (L×W×H) | 475×360×225 mm |
| Weight | 14.6 kg |
Resources
Welcome to the User Manual! This manual is your go-to resource for understanding and utilizing our product efficiently. It offers comprehensive instructions, troubleshooting tips, and FAQs to help you navigate through its features seamlessly.
