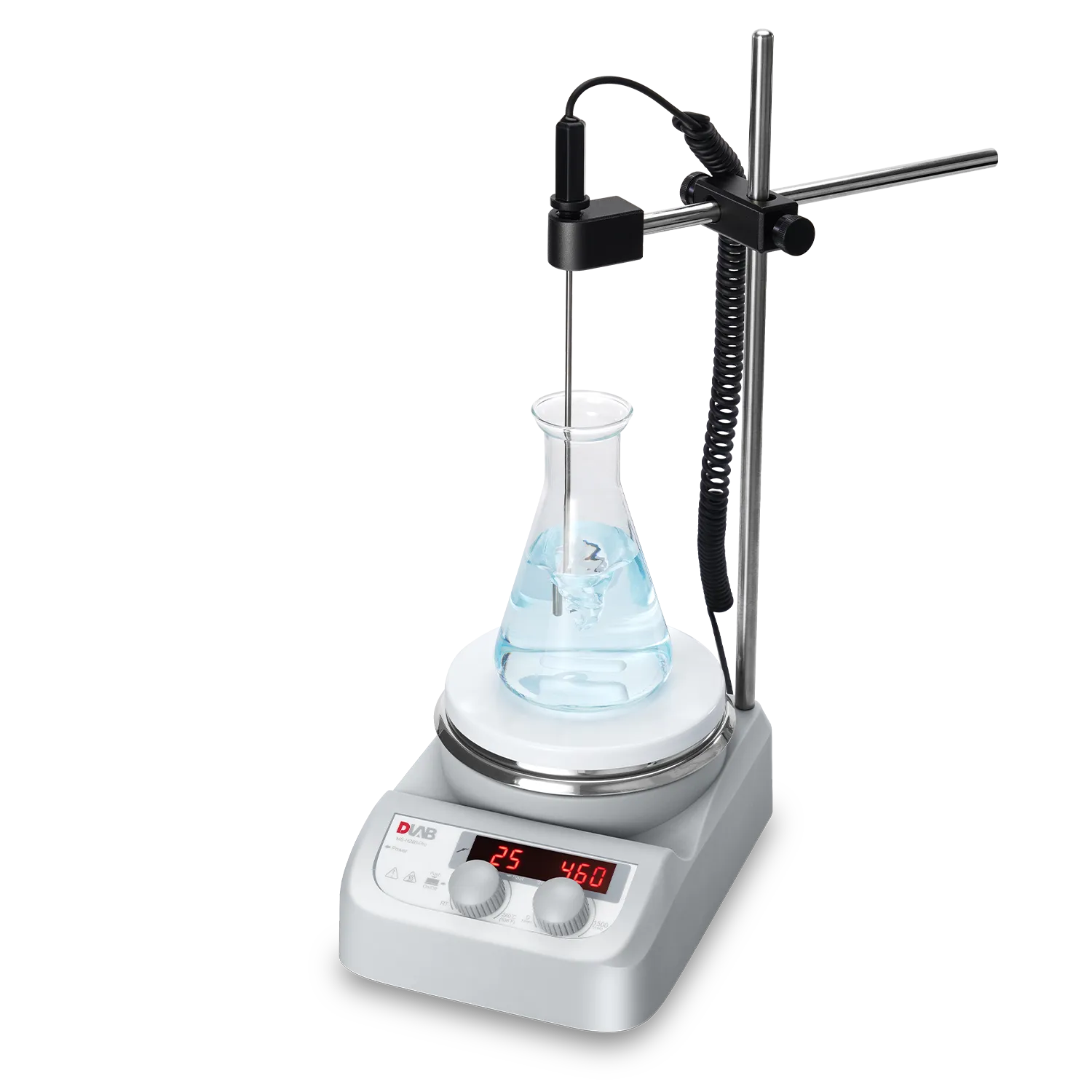

DLAB LED Digital Magnetic Hotplate Stirrer MS-H280-Pro
Vendor:
DLAB Scientific Inc.
Type:
Mixing & Heating
The DLAB MS-H280-Pro is a LED digital magnetic hotplate stirrer with precise digital control up to 280 °C and 1500 rpm, an external PT1000 temperature sensor...
...
Read More
Price Unit
Quantity
$310.00
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
COPY
Total Price:
$310.00
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
Share:
overview
Features & Benefits
Digital temperature control up to 280 °C
Precise digital control covers the full range from ambient to 280 °C, suitable for a wide variety of heating and synthesis applications.
Digital speed control up to 1500 rpm
Independently adjustable stirring speed from low to 1500 rpm ensures optimal mixing for different sample volumes and viscosities.
External PT1000 sensor for ±0.2 °C accuracy
Connecting an external PT1000 probe shifts temperature control directly to the liquid, achieving ±0.2 °C accuracy for temperature-sensitive reactions.
Ceramic-coated stainless steel work plate
The ceramic coating over a stainless steel base delivers high resistance to chemical corrosion and spills, extending the service life of the work surface.
LED display with HOT warning
The LED screen shows live temperature and speed readings. A flashing HOT alert activates when the plate exceeds 50 °C, warning users of residual heat after use.
Specifications
| Parameter | Specification |
|---|---|
| Stirring | |
| Stirring Positions | 1 |
| Speed Range | 200–1500 rpm |
| Max. Stirring Quantity (H?O) | 3 L |
| Max. Magnetic Bar Length | 50 mm |
| Motor Type | Brushless DC motor |
| Motor Rating Output | 3 W |
| Heating | |
| Heating Temperature Range | Room Temp – 280 °C |
| Heating Liquid Temperature Control Accuracy | ±1 °C (<100 °C); ±1% (>100 °C) |
| Overheating Temperature Protection | 320 °C |
| Temperature Display Accuracy | ±1 °C |
| "HOT" Warning | 50 °C |
| External Temperature Sensor | PT1000 (accuracy ±0.2 °C) |
| Display & Interface | |
| Speed Display | LED |
| Temperature Display | LED |
| Data Connector | – |
| Timer Function | – |
| Workplate | |
| Work Plate Dimension | Ø135 mm (5 inch) |
| Work Plate Material | Aluminum cover with ceramic coating |
| Protection Class | IP42 |
| Electrical & Environmental | |
| Power Supply | 100–120 / 200–240 V, 50/60 Hz |
| Power | 515 W |
| Heating Output | 500 W |
| Ambient Temperature & Humidity | 5–40 °C, 80% RH |
| Physical | |
| Dimensions (W×D×H) | 150×260×100 mm |
| Weight | 1.8 kg |
