overview
Features & Benefits
High Frequency Micro-Mesh Atomizer Technology
Efficient Atomization
Produces atomized particles with a diameter of 3-5μm (90%)
These particles can easily enter the alveoli
Two Atomization Modes
Atomization mode and Inducing Cough mode available
Adjustable Atomization Speed
10 levels of atomization speed
Range: 0.07–1.4 ml/min
Automatic Exhaust Function
Residual atomized drug will be purified and removed automatically after the experiment
Real-Time Monitoring
Spray time, reaction time, dosage, first cough time, and cough number can be displayed in real-time
On-Device Calibration
Atomization calibration can be carried out directly in the device
Specifications
| Parameter | Details |
|---|---|
| Operation | 7 inch Capacitive IPS LCD touch screen, resolution 1024*600. Produce atomized particles with a diameter 3-5μm (90%), which can enter the alveoli through the respiratory system of small animals to achieve nebulization. Two atomizing channels are available, which can be used simultaneously or as backup atomizing channels. |
| Mode | Atomization, Inducing Cough |
| Test Time | 1~99999 min |
| Atomization Speed | 1-10 levels, Range: 0.07-1.4 ml/min |
| Automatic/Manual Operation | Includes a foot pedal button to manually record the cough time and times. |
| Exhaust Time | Equipped with automatic exhaust function. The residual atomized drug will be purified and removed after the experiment. Exhaust time range: 1-99999 s. Administration time: 1-99999 s |
| Data | Real-time display of spray time, reaction time, dosage, first cough time, cough number. The data can be printed by micro printer and exported to PC via USB. |
| Calibration | Atomization calibration can be carried out in real time after using different liquids or changing the atomizer unit. The atomization speed can be calibrated before the experiment to ensure accuracy. |
| Power | AC100V~240V, 50/60HZ, 20W |
Physical Info
| Component | Size / Volume | Weight / Notes |
|---|---|---|
| Controller | 350*300*145 mm | Weight: 4.2 kg |

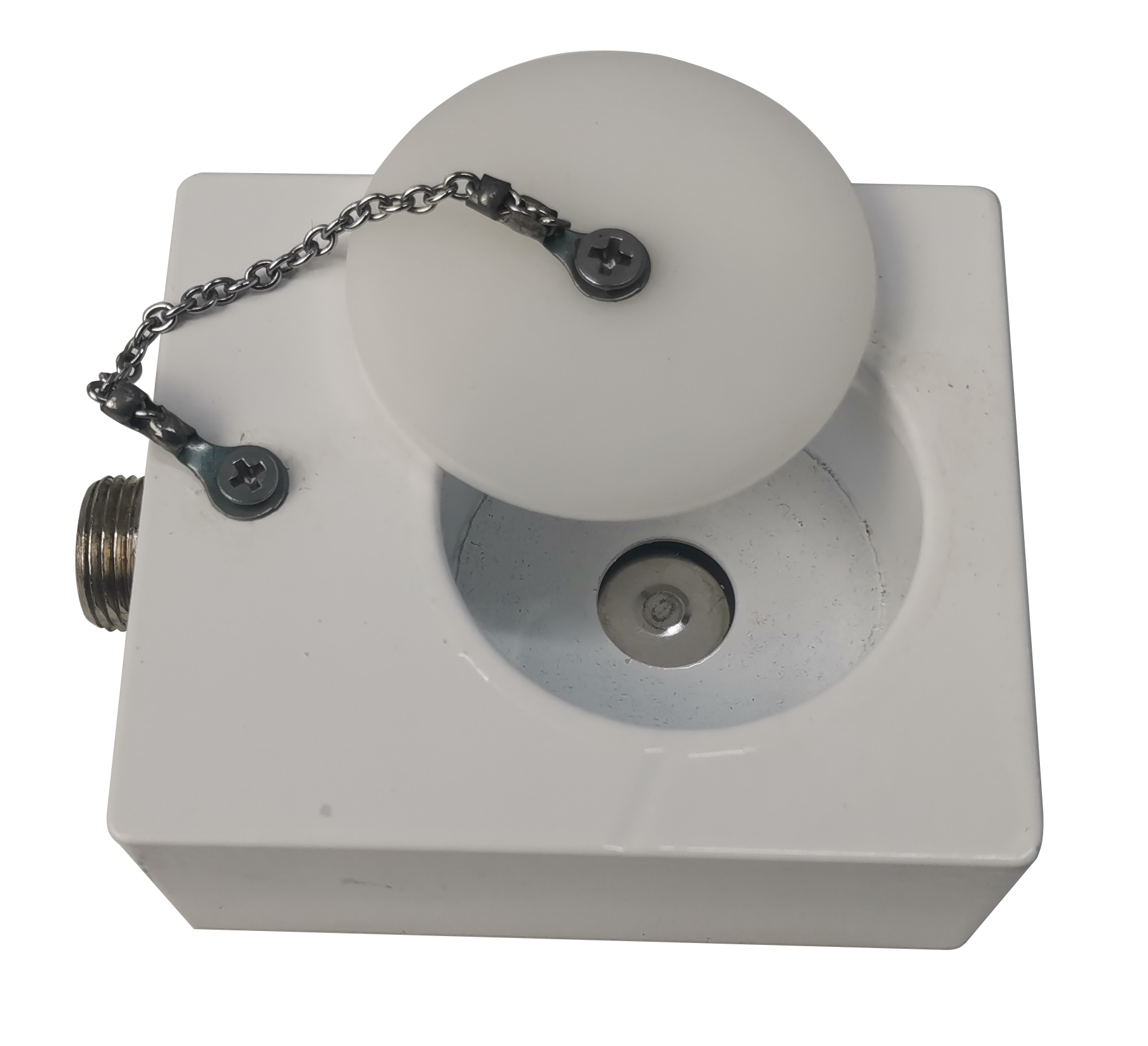

| Nebulizer Unit | 65 mm * 55 mm * 37 mm | O.D. Φ36×25 mm, Max Volume: 16 ml |

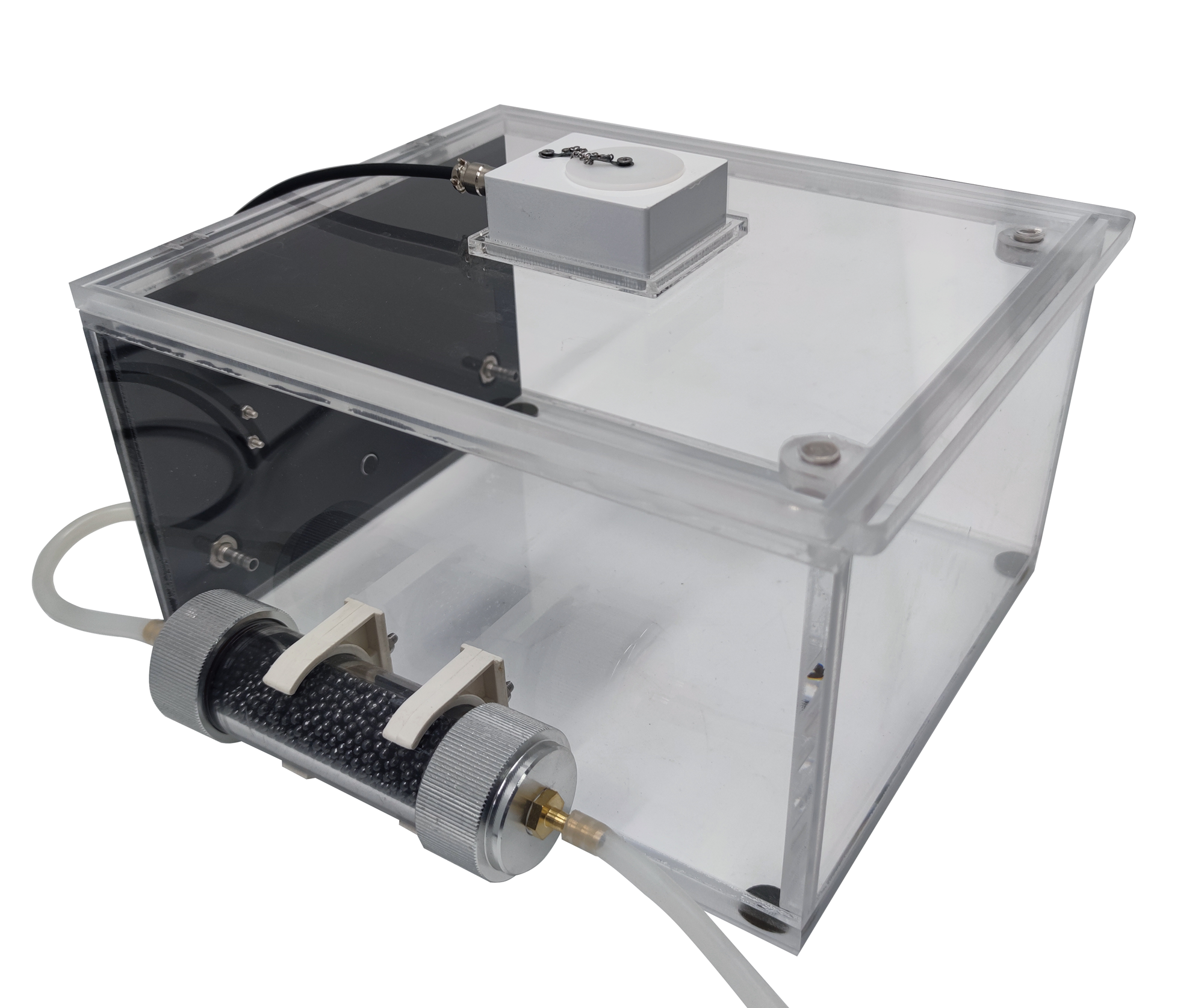

| Chamber |
Small: 5L 255×210×135 mm Medium: 8L 290×240×160 mm Large: 10L 305×260×170 mm |
— |
Order Information
| Model | Product |
|---|---|
| SA703 | Aerosol Nebulizer |
