SANS Activity Running Wheel
Vendor:
SANS
Type:
Behavioral & Phenotyping Systems
Stainless steel running wheel for long-term motor activity measurement in rodents. Records forward and reverse runs, distance, speed, and time. Supports up t...
...
Read More
Name
Price Unit
Quantity
SA103A-R for Rat (1 channel)
$1,408.96
SA103A-M for Mouse (1 channel)
$1,408.96
Customize
Want more possibilities ?
Save
$200
Code: RWD200
Ends in 2 Days 23:12:45
COPY
Total Price:
$1,408.96
Perfect Match With
Delivery timelines will be provided with your quote
Standard lead time varies by product availability (in-stock items usually 1–3 business days, custom/backordered items 7–21 business days).
90-day return policy
Eligible items may be returned within 90 days after delivery, subject to our Return Policy.
Notice
Final delivery schedules and pricing are subject to confirmation in your official quotation. Customs policies may also impact the total cost. Contact us for your best quote.
Share:
overview
Features & Benefits
Advanced Data Recording
Records forward and reverse running
Measures distance (m), running time (s), and average speed (m/s)
Stores up to 1000 data sets with easy browsing
USB data export to PC
Flexible Test Parameters
Supports up to 16 mice or rats simultaneously
Adjustable test time: 1–99999 minutes
Auto start/stop scheduling
Choose clockwise or counter-clockwise rotation
Circle counting or distance counting modes
High-Quality Construction
Stainless steel running wheel with low-friction bushings for smooth, quiet operation
Clear polycarbonate cage with secure lock design
Integrated food holder and water bottle
User-Friendly Controller
Capacitive touch screen for quick setup and real-time monitoring
Connect up to 16 activity wheels to one controller or PC
Advantages
Highlights

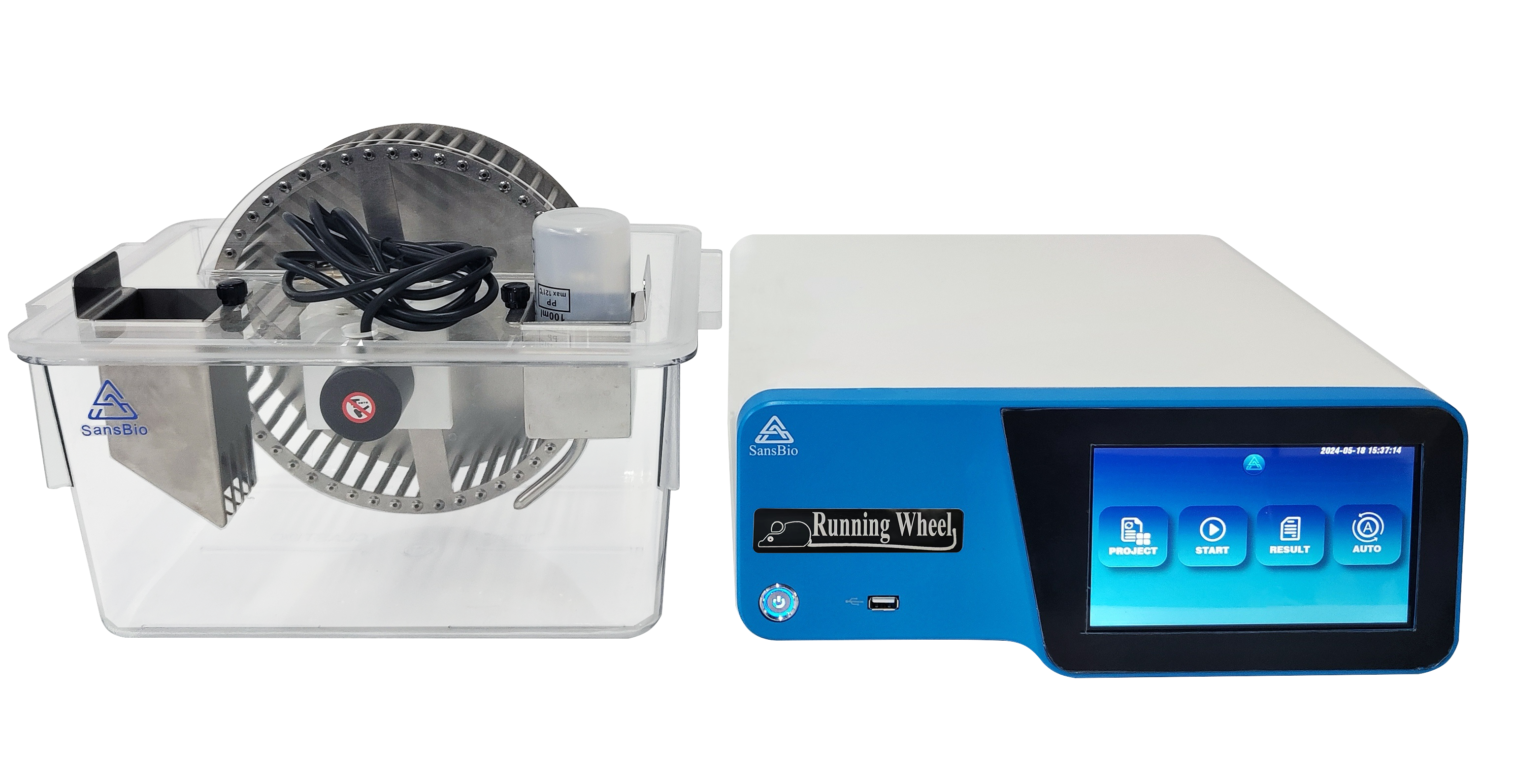

Controller with Capacitive Touch Screen
Configure and record activity easily using the touch screen controller.
Animal Cage with Running Wheel
Provides a safe and comfortable environment for exercise monitoring.
Wheel Diameter
Mouse wheel: 20 cm, Rat wheel: 30 cm.
Water Bottle and Food Holder
Integrated holders to ensure animals have access to water and food during testing.
Applications

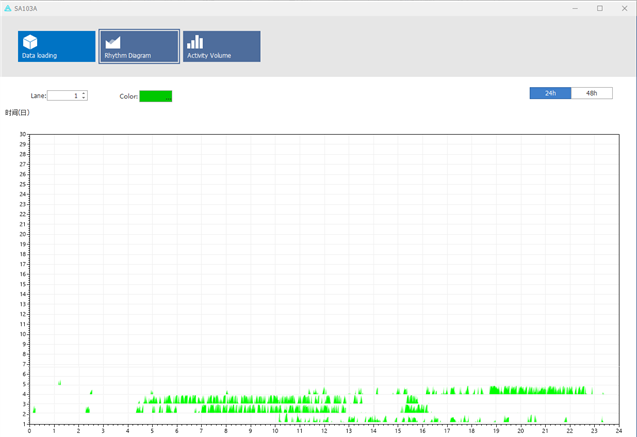

Circadian rhythm research – monitor sleep/wake cycles and biological clock studies
Locomotor activity monitoring – track forward/reverse running patterns over time
Voluntary exercise models – study metabolic function, aging, and recovery
Pain and fatigue studies – evaluate pain-related or post-injury exercise behavior
Behavioral neuroscience – assess motivation, motor learning, and neuroplasticity
Specifications
Parameter Setting
| Parameter | Setting |
|---|---|
| Mice or Rats capacity | 16 Mice or Rats can be conducted at the same time. |
| Test time | 1 – 99999 minutes |
| Auto start/stop | Auto start and stop schedule setup. |
| Rotation direction | Clockwise or counter clock. |
| Operating mode | Circle counting or distance counting. |
| Speed | 0.1 – 99.9 r / min with step 0.1 r / min |
Data Measurement and Record
| Data Measurement and Record | Details |
|---|---|
| Data display | Distance (m) forward/reverse, Running Time (s), Speed (m/s) |
| Data record | Distance (m) forward/reverse, Running Time (s), Speed (m/s) |
| Data storage | Stores up to 1000 data sets. Easy to browse the stored data. |
| Data upload | Upload data to PC using a USB cable. |
Size
| Size | Rat | Mouse |
|---|---|---|
| Wheel Diameter | 30cm | 20cm |
| Cage Dimension | 50*30*35cm | 34*24*26cm |
| Turn Plate Size | Φ30*9cm | Φ20×6cm |
| Controller Size | 35*35*15cm | 35*35*15cm |
| Controller Weight | 4.2kg | 4.2kg |
Order Information
| Model | Product |
|---|---|
| SA103A-M | Activity Running Wheel for Mice |
| SA102A-R | Activity Running Wheel for Rats |
