Description
LCD displays actual temperature & speed
Built-in PID controller ensures safe heating of the medium with overheating protection
Maximum heating plate temperature up to 550℃
Glass ceramic work plate is resistant to corrosion and is easy to clean
External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃
Digital speed control with Maximum range of 1500rpm
Outstanding brushless DC motor offers more stirring power
Two knobs enable easy adjustment of speed and temperature
“HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
Remote function provides PC control and data transmission
Specification
Specifications
| Specifications | MS7-H550-Pro |
| Work Plate Dimension [W×D] | 184 × 184 mm (7 inch) |
| Work Plate Material | Glass ceramic |
| Motor Type | Brushless DC motor |
| Stirring Positions | 1 |
| Max. Stirring Quantity [H₂O] | 20 L |
| Max. Magnetic Bar Length | 80 mm |
| Speed Range | 100–1500 rpm, resolution ±1 rpm |
| Speed Display | LCD |
| Temperature Display | LCD |
| Heating Temperature Range | Room Temp.–550°C, increment 1°C |
| Temperature Control Accuracy | ±1°C (<100°C) ±1% (>100°C) |
| Overheating Protection | 580°C |
| Temperature Display Accuracy | ±0.1°C |
| External Temperature Sensor | PT1000 (accuracy ±0.2°C) |
| "Hot" Warning | 50°C |
| Data Connector | RS232 |
| Protection Class | IP21 |
| Motor Rating Output | 10 W |
| Power | 1050 W |
| Heating Output | 1000 W |
| Voltage / Frequency | 100–120/200–240 V, 50/60 Hz |
| Dimension [W×D×H] | 215 × 360 × 112 mm |
| Weight | 5.3 kg |
| Timer Function | - |
| Permissible Ambient Temp. & Humidity | 5–40°C, 80% RH |

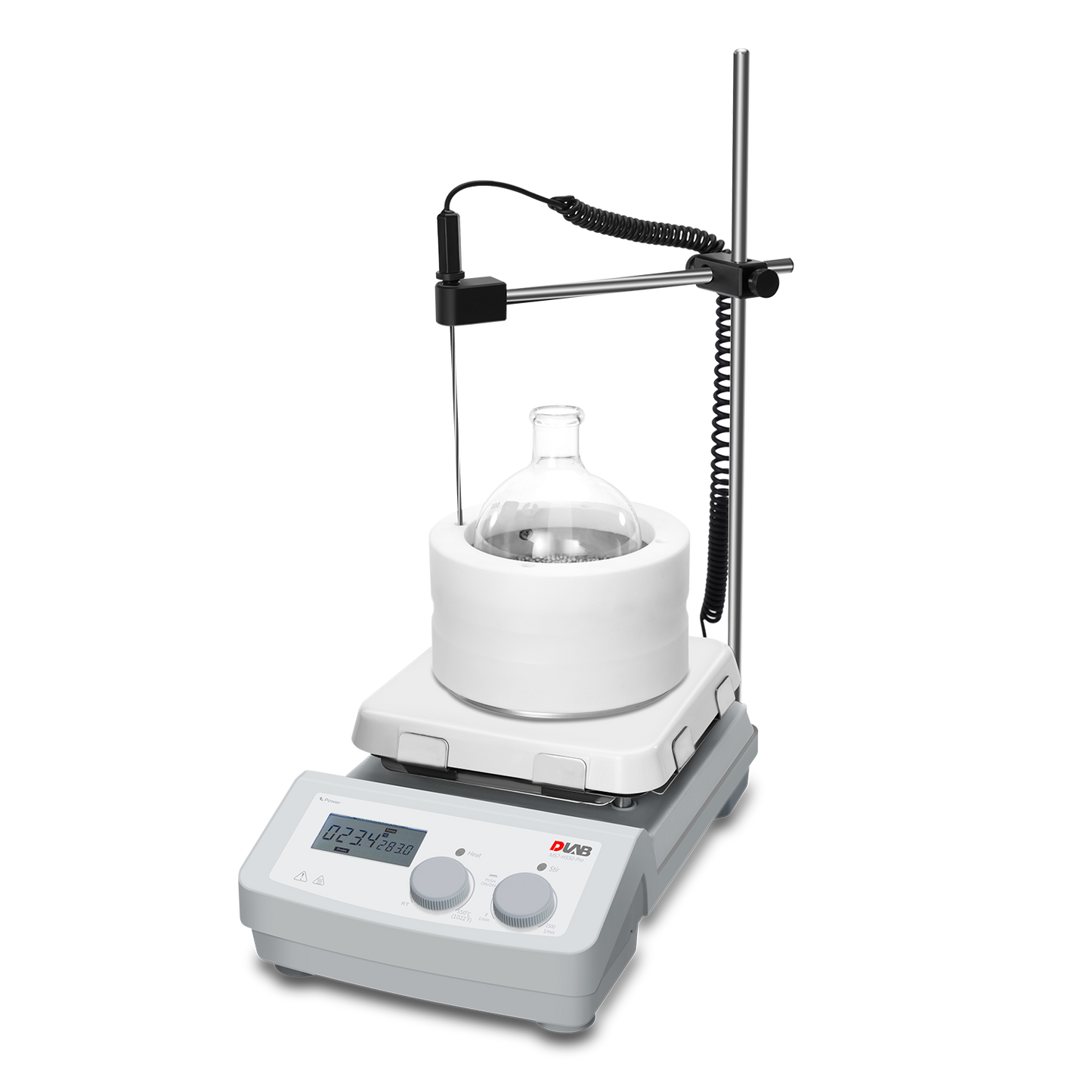

MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate
$782.40
