Description
Large Volume: up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
LCD display for precise monitoring of speed and temperature . External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.2°C
Digital speed control of 100 -1500rpm
Max. heating plate temperature 500℃
The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
Data connector : The SD card also records the instrument's running data in real time.
Timing function: the running time of the instrument can be set.
Specification
Specifications
| Specifications | MS10-H500-Pro |
| Work Plate Dimension [W×D] | 254 × 254 mm (10 inch) |
| Work Plate Material | Glass ceramic |
| Motor Type | Brushless DC motor |
| Stirring Positions | 1 |
| Max. Stirring Quantity [H₂O] | 30 L |
| Max. Magnetic Bar Length | 80 mm |
| Speed Range | 100–1500 rpm, resolution ±1 rpm |
| Speed Display | LCD |
| Temperature Display | LCD |
| Heating Temperature Range | Room Temp.–500°C, increment 1°C |
| Temperature Control Accuracy | ±1°C (<100°C) ±1% (>100°C) |
| Overheating Protection | 540°C |
| Temperature Display Accuracy | ±0.1°C |
| External Temperature Sensor | PT1000 (accuracy ±0.2°C) |
| "Hot" Warning | 50°C |
| Data Connector | SD card |
| Protection Class | IP20 |
| Motor Rating Output | 10 W |
| Power | 1700 W |
| Heating Output | 1500 W |
| Voltage / Frequency | 100–120 / 200–240 V, 50/60 Hz |
| Dimension [W×D×H] | 328 × 424 × 138 mm |
| Weight | 7.1 kg |
| Timer Function | 1 min – 99 h 59 min |
| Permissible Ambient Temp. & Humidity | 5–40°C, 80% RH |

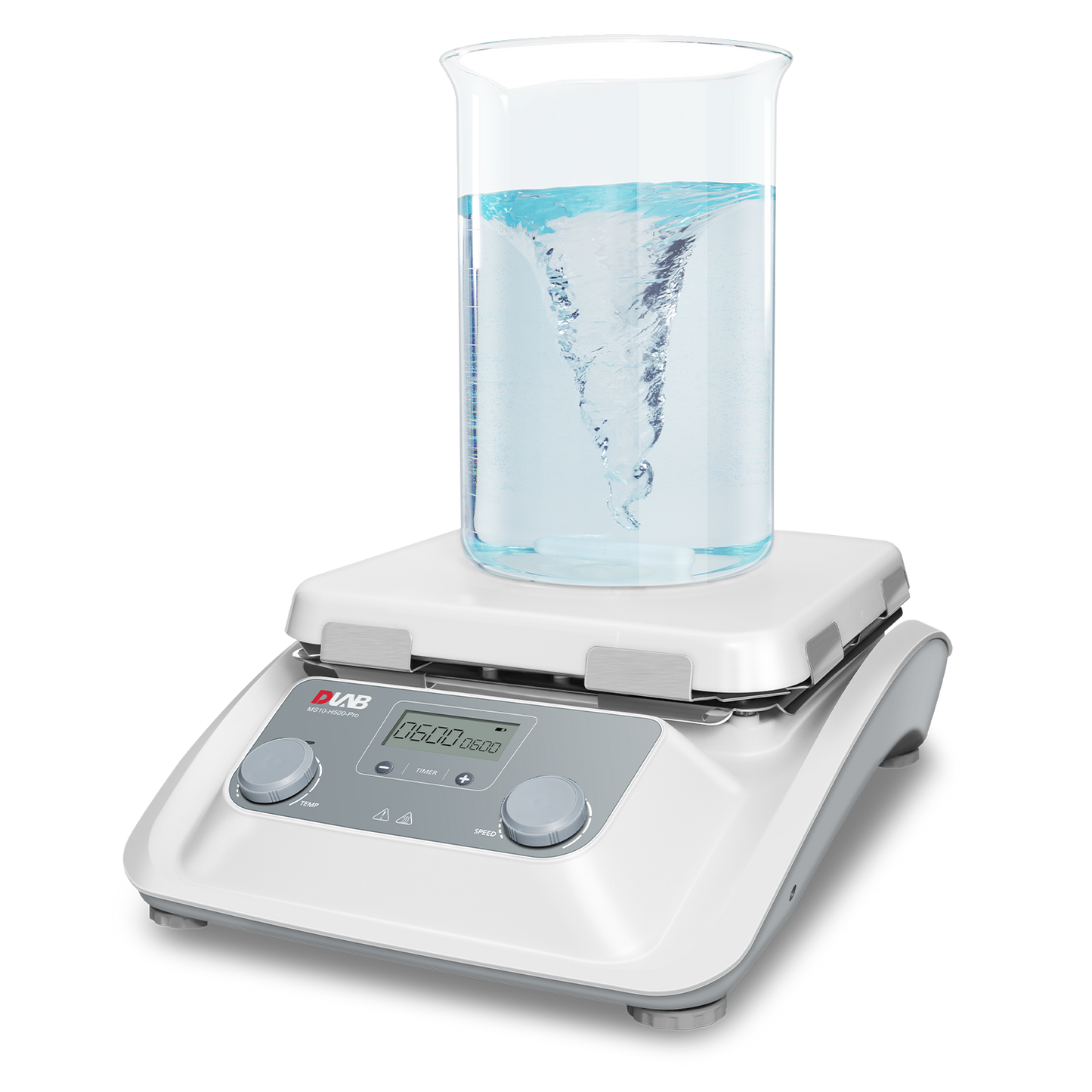

MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate
$1,033.20
