Description
DC brushless motor free of maintenance and spark, and with long service life
Digital temperature control up to 340°C
Digital speed control up to 1500rpm
Maximum stirring quantity of H2O is 20L
Safety circuits provide overheating protection
"HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
Work plate with ceramic coating provides good chemical-resistantperformance
Remote function provides PC control and data transmission
Wide variety of accessories available to choose
Specification
Specifications
| Specifications | MS-H-Pro+ |
| Work Plate Dimension [W×D] | Ø135 mm (5 inch) |
| Work Plate Material | Stainless steel cover with ceramic coating |
| Motor Type | Brushless DC motor |
| Stirring Positions | 1 |
| Max. Stirring Quantity [H₂O] | 20 L |
| Max. Magnetic Bar Length | 80 mm |
| Speed Range | 100–1500 rpm, resolution ±1 rpm |
| Speed Display | LCD |
| Temperature Display | LCD |
| Heating Temperature Range | Room Temp.–340°C, increment 1°C |
| Heating Liquid Temperature Control Accuracy | ±1°C (<100°C) ±1% (>100°C) |
| Overheating Temperature Protection | 420°C |
| Temperature Display Accuracy | ±0.1°C |
| External Temperature Sensor | PT1000 (accuracy ±0.2°C) |
| "Hot" Warning | 50°C |
| Data Connector | RS232 |
| Protection Class | IP21 |
| Motor Rating Output | 10 W |
| Power | 550 W |
| Heating Output | 500 W |
| Voltage / Frequency | 100–120/200–240 V, 50/60 Hz |
| Dimension [W×D×H] | 160 × 280 × 100 mm |
| Weight | 2.8 kg |
| Permissible Ambient Temp. & Humidity | 5–40°C, 80% RH |

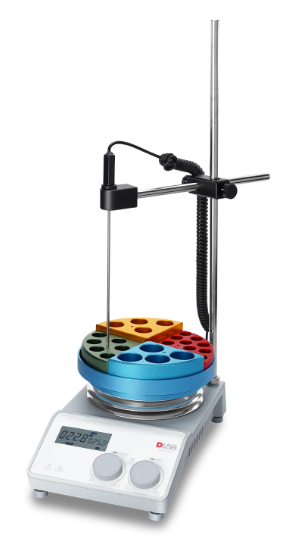

MS-H-Pro+ LCD Digital Magnetic Hotplate Stirrer
$604.80
