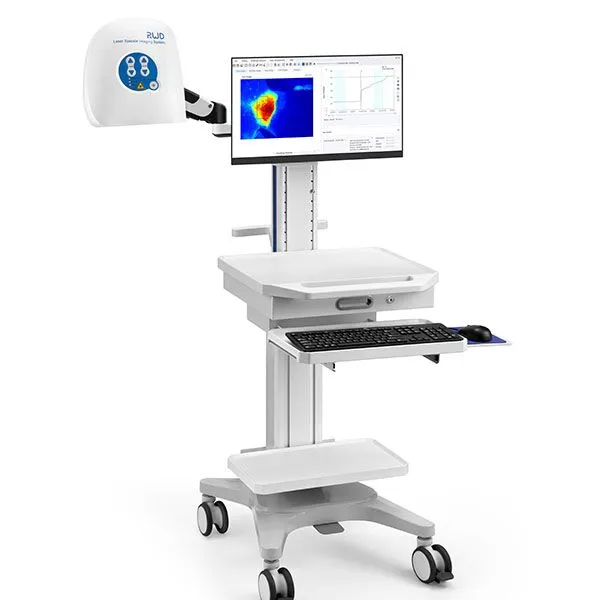

Components of a Standard Laser Speckle Imager System
Acquiring a complete system for blood flow visualization requires an understanding of the core components involved. A typical package for laser speckle contrast imaging (LSCI) is designed to provide all the necessary hardware and software to begin collecting perfusion data. When we at BPLabLine configure a laser speckle contrast imager for a research team, we ensure the integration of several key elements that form a functional and reliable unit.
The Core Imaging Module: Laser and Camera
The central component of any laser speckle contrast imaging(LSCI) system is the imaging head or module. This unit houses the laser light source, which is a low-power, coherent diode laser that illuminates the tissue surface to generate the speckle pattern. The specific wavelength of the laser is selected for optimal penetration and scattering properties in biological tissue. Integrated with the laser is a sensitive digital camera, typically a CCD or CMOS sensor, which captures the raw speckle images. The quality and resolution of this camera directly influence the spatial detail of the final blood flow map. This integrated module is the primary data collection point for the laser speckle contrast imager.
Dedicated Control and Analysis Software
The hardware is operated through specialized software installed on a controlling computer, which is often included in a standard package. This software serves a dual purpose. First, it provides the interface for controlling acquisition parameters such as exposure time, frame rate, and laser power. Second, and most critically, it performs the real-time calculation of speckle contrast values from the raw images, converting the fluctuating speckle patterns into a 2D color-coded map of relative blood flow. The software for a laser speckle contrast imaging (LSCI) system also includes tools for recording data, selecting regions of interest, and exporting quantitative perfusion statistics over time.
Mechanical Supports and Accessories

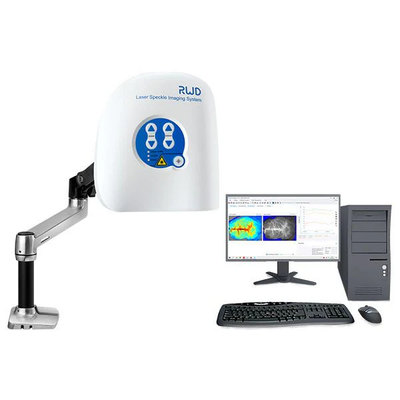

To facilitate practical use in a laboratory setting, a standard laser speckle contrast imager package includes necessary support equipment. This involves a stable mounting system, such as an articulated arm or a rigid stand, which allows for precise and stable positioning of the imaging head over the area of interest. For preclinical laser speckle contrast imaging (LSCI), specialized animal stages that integrate with stereotaxic frames or heating pads are common accessories. Packages may also include calibration standards to verify system performance and ensure consistency across imaging sessions.
A fully operational laser speckle contrast imaging (LSCI) setup is therefore an integrated ecosystem of illumination, detection, computation, and mechanical support. Each component, from the laser wavelength to the analysis algorithm, plays a defined role in generating reliable perfusion data. We at BPLabLine focus on the seamless integration of these components within our laser speckle contrast imager systems, providing researchers with a complete tool that is ready for scientific investigation. The goal is to deliver a platform that allows the researcher to focus on the biological question, supported by a dependable and well-equipped imaging solution.
