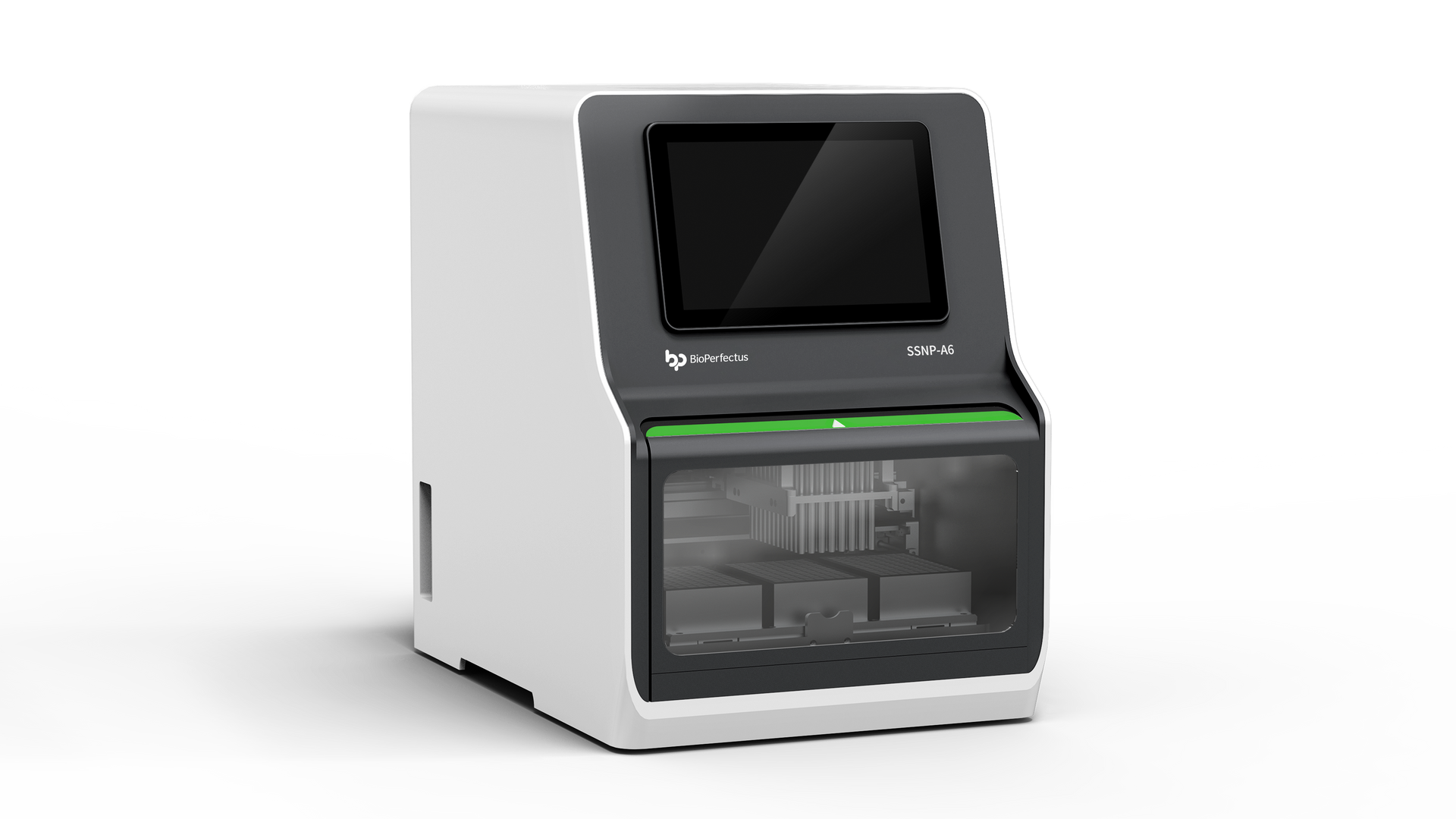

The nucleic acid extraction system SSNP-A6 (referred to as "SSNP-A6" below) is an in vitro diagnostic medical device, which integrates cutting-edge mechanical, electronic and software technologies to enable automated extraction of nucleic acids from samples. SSNP-A6 can extract nucleic acids from 96 samples simultaneously to meet the requirement for high throughput.The equipment is intended for use with magnetic bead-based nucleic acid extraction kits for the extraction and purification of nucleic acids from clinical samples.
Scope of application: The equipment is intended for use with magnetic bead-based nucleic acid extraction kits to extract and purify nucleic acids from clinical samples.
Feature
This model is recognized under international regulatory systems and meets strict compliance requirements:
CE-IVDR (EU Regulation 2017/746, registered with Bezirksregierung Münster, Germany)
FDA Listed (U.S. FDA device listing completed by Bioperfectus)
NMPA Certified (China National Medical Products Administration, Certificate No. STXB20220014, valid until Feb 2027)
| Model | SSNP-A6 |
| Sample capability | 1-96 |
| Magnetic bead recycle rate | ≥98% |
| Plate type | 96-deep-well plate |
| Processing volume | 20uL-1000uL |
| Size (W*D*H) | 380×540×520mm |
| Weight | 24kg |
| Mixing mode | Multiple modes and speeds (> 20 gears) |
| Heating temperature | Cracking heating temperature: room temperature to 120℃ |
| Elution heating temperature: room temperature to 120℃ | |
| Voltage | 100-240V~ |
| Frequency | 50/60Hz |
| Rated power | 420VA |
